小土堆pytorch教程

视频地址：https://www.bilibili.com/video/BV1hE411t7RN

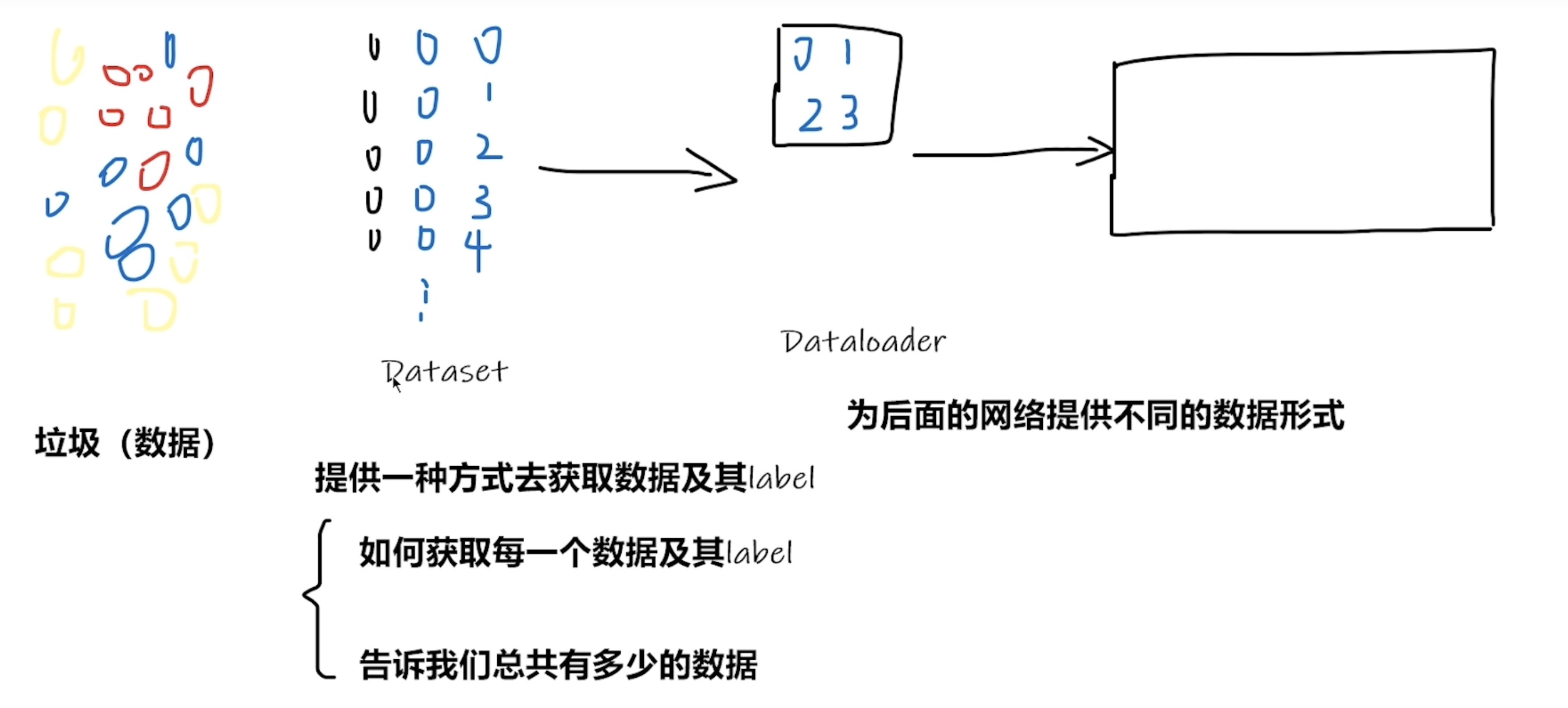

Dataset

• Dataset 获取数据并编号
• Dataloader 对数据打包


from torch.utils.data import Dataset, DataLoader
import numpy as np
from PIL import Image
import os
from torchvision import transforms
from torchvision.utils import make_grid


class MyDataset(Dataset):
    def __init__(self, root_dir,  label_dir):
        self.root_dir = root_dir
        self.label_dir = label_dir
        self.path = os.path.join(self.root_dir, self.label_dir)
        self.img_path = os.listdir(self.path)


    def __getitem__(self, idx):
        img_name = self.img_path[idx]
        img_item_path = os.path.join(self.root_dir, self.label_dir, img_name)
        img = Image.open(img_item_path)
        label = self.label_dir
        # img.show()
        return img, label

    def __len__(self):
        return len(self.img_path)

root_dir = "../dataset/train"
ants_label_dir = "ants"
ants_dataset = MyDataset(root_dir, ants_label_dir)
print(ants_dataset.__getitem__(1))

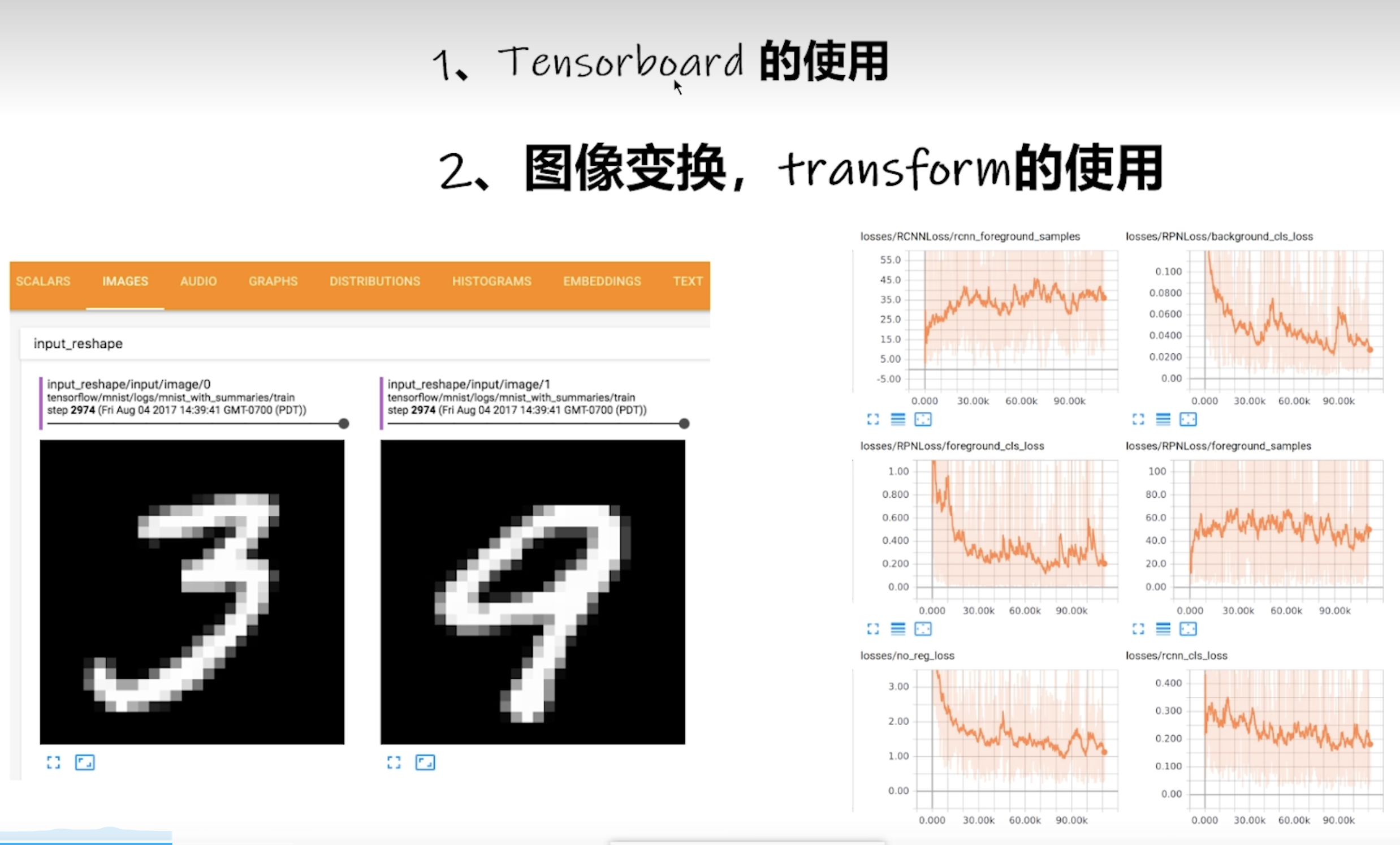

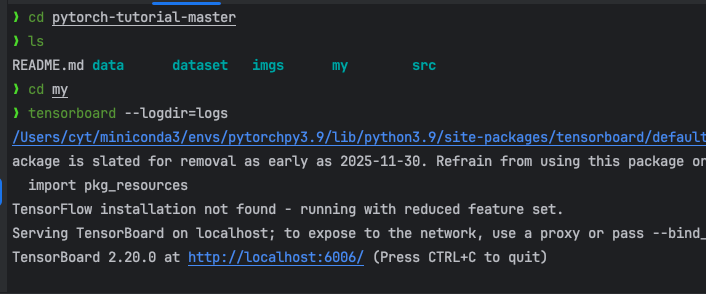

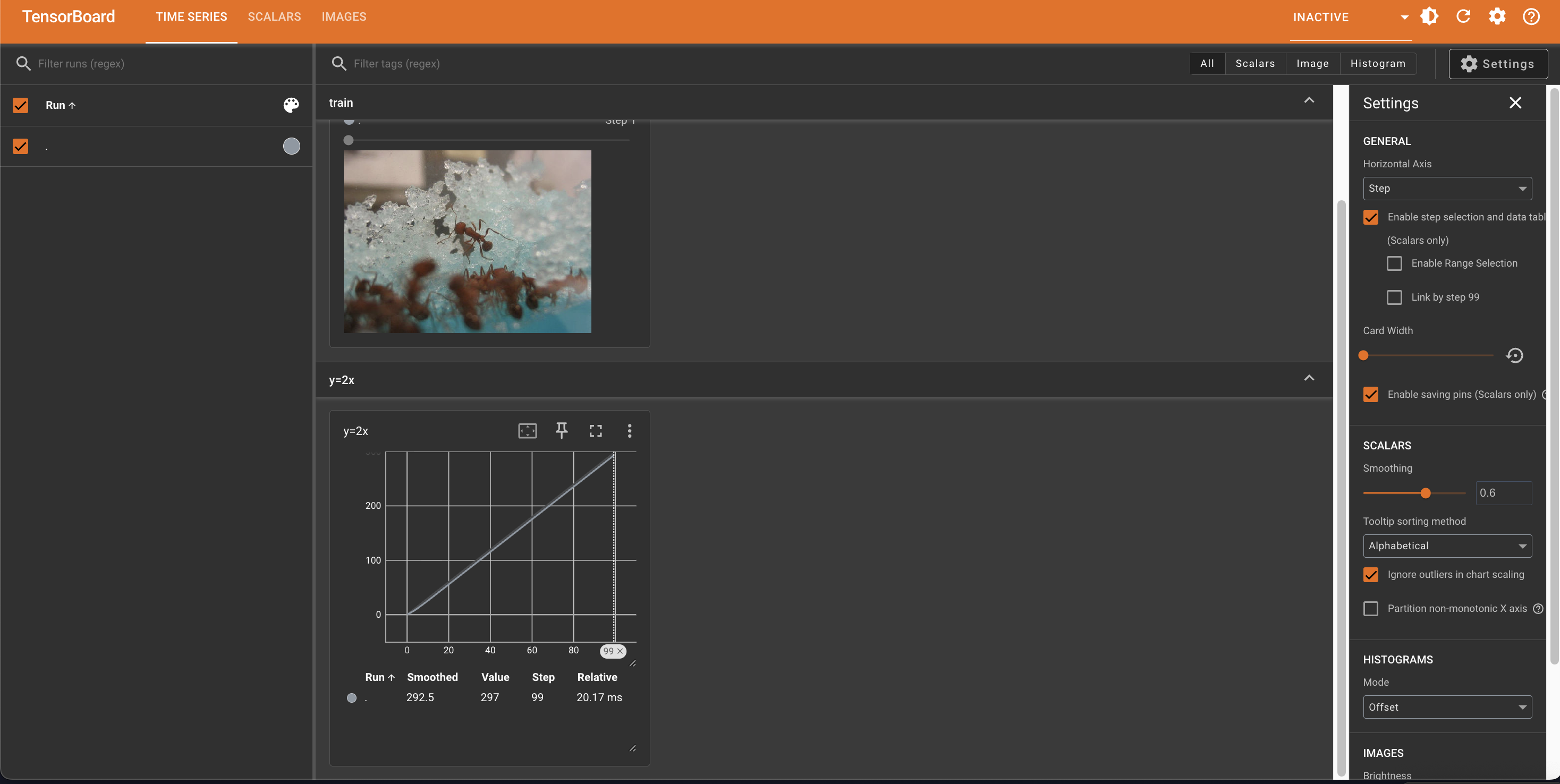

Tensorboard

• 打开log
  • tensorboard --logdir=logs --port=
  • logs: 文件夹名
  •
  •

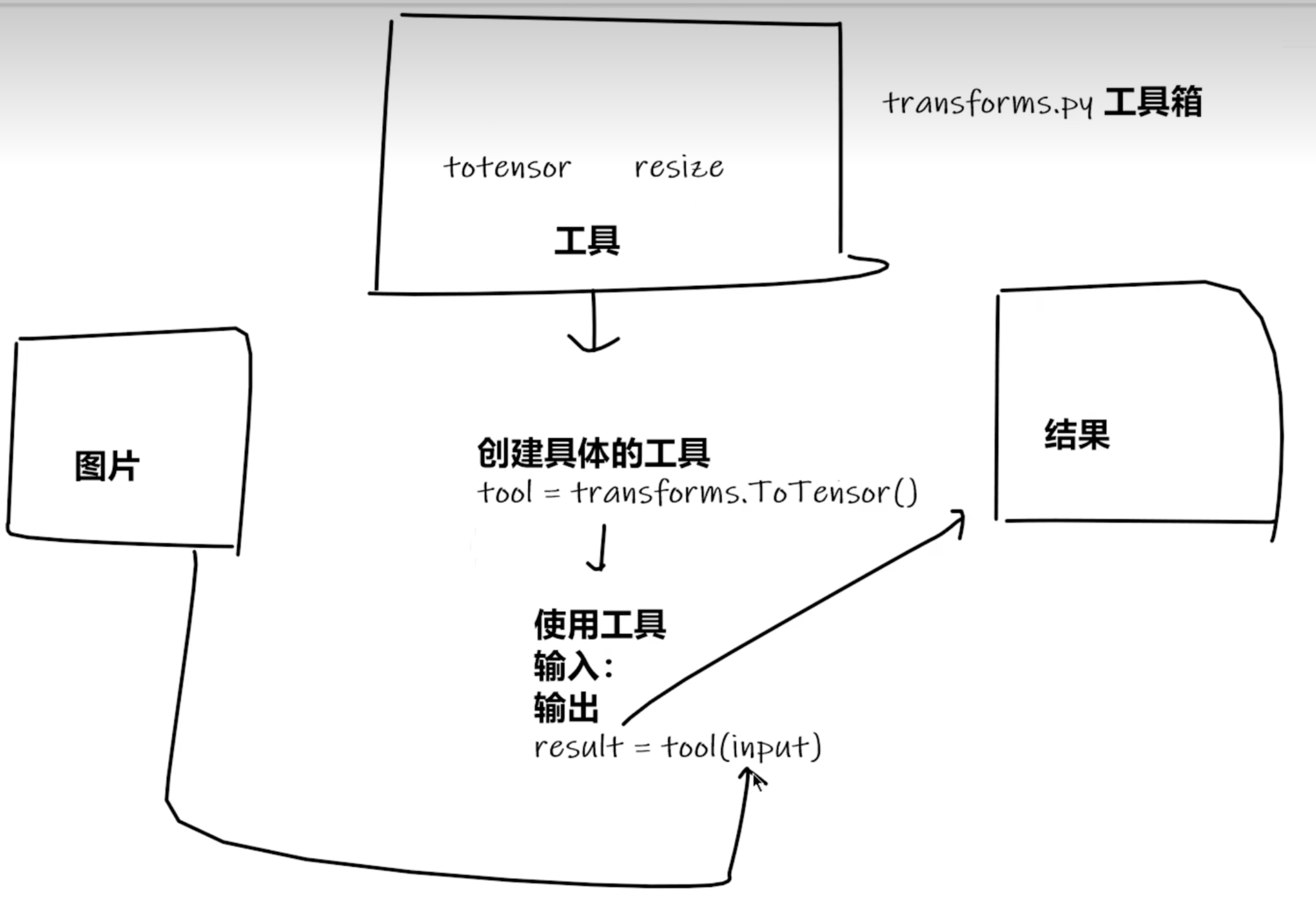

Transform

• 作用：
  • python的用法 -> tensor数据类型
  • 就是神经网络专用的数据类型，包含了许多神经网络需要的参数
  • """Convert a PIL Image or ndarray to tensor and scale the values accordingly.
  •

from PIL import Image
from torch.utils.tensorboard import SummaryWriter
from torchvision import transforms

img_path= "../data/train/ants_image/0013035.jpg"
img  = Image.open(img_path)
print(img)
tensor_trans = transforms.ToTensor()
tensor_img = tensor_trans(img)
print(tensor_img)

writer = SummaryWriter(log_dir='./logs')
# 使用tensor数据类型
writer.add_image("Tensor_img", tensor_img)
writer.close()

常见的Transform

Normalize

from PIL import Image
from torchvision import transforms
from torch.utils.tensorboard import SummaryWriter

writer = SummaryWriter(log_dir='./logs')
img_path = "../data/train/ants_image/0013035.jpg"
img = Image.open(img_path)

trans_tensor = transforms.ToTensor()
img_tensor = trans_tensor(img)
writer.add_image("ToTenser", img_tensor)

# Normalize归一化
print("归一化之前：", img_tensor[0][0][0]) # 0.3137
trans_norm = transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])
img_norm = trans_norm(img_tensor)
print("归一化之后：", img_norm[0][0][0]) # 2 * 0.3137 - 1
writer.add_image("Normalize", img_norm)

writer.close()

Resize

# Resize
print("Resize" * 10)
print(img.size)
trans_resize = transforms.Resize((512, 512))
# img PIL ----> resize ---> img_resize PIL
img_resize = trans_resize(img)
# img PIL ----> tensor ---> img_resize PIL
img_resize = trans_tensor(img_resize)
writer.add_image("Resize", img_resize)
print(img_resize)

Compose

# Compose
trans_resize_2 = transforms.Resize(512)
trans_compose = transforms.Compose([trans_resize_2
img_resize_2 = trans_compose(img)
writer.add_image("Compose", img_resize_2)

#
trans_random = transforms.RandomCrop((256, 128))
trans_compose_2 = transforms.Compose([trans_random
for i in range(10):
    img_crop = trans_compose_2(img)
    writer.add_image("RandomCrop", img_crop, i)

torchvision中的数据集使用

import torchvision
from torch.utils.tensorboard import SummaryWriter

dataset_transform = torchvision.transforms.Compose([
    torchvision.transforms.ToTensor()
])

train_set = torchvision.datasets.CIFAR10(root='./dataset',
                                         train=True,
                                         transform=dataset_transform,
                                         download=True)
test_set = torchvision.datasets.CIFAR10(root='./dataset',
                                        train=False,
                                        transform=dataset_transform,
                                        download=True)

print(test_set[0])
print((test_set.classes))  # ['airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']

img, target = test_set[0]
print(img)
print(target)  # 3
print(test_set.classes[target])  # cat
img.show()

writer = SummaryWriter("4_dataset_transform")
for i in range(10):
    img, target = test_set[i]
    writer.add_image("test_set", img, i)

writer.close()

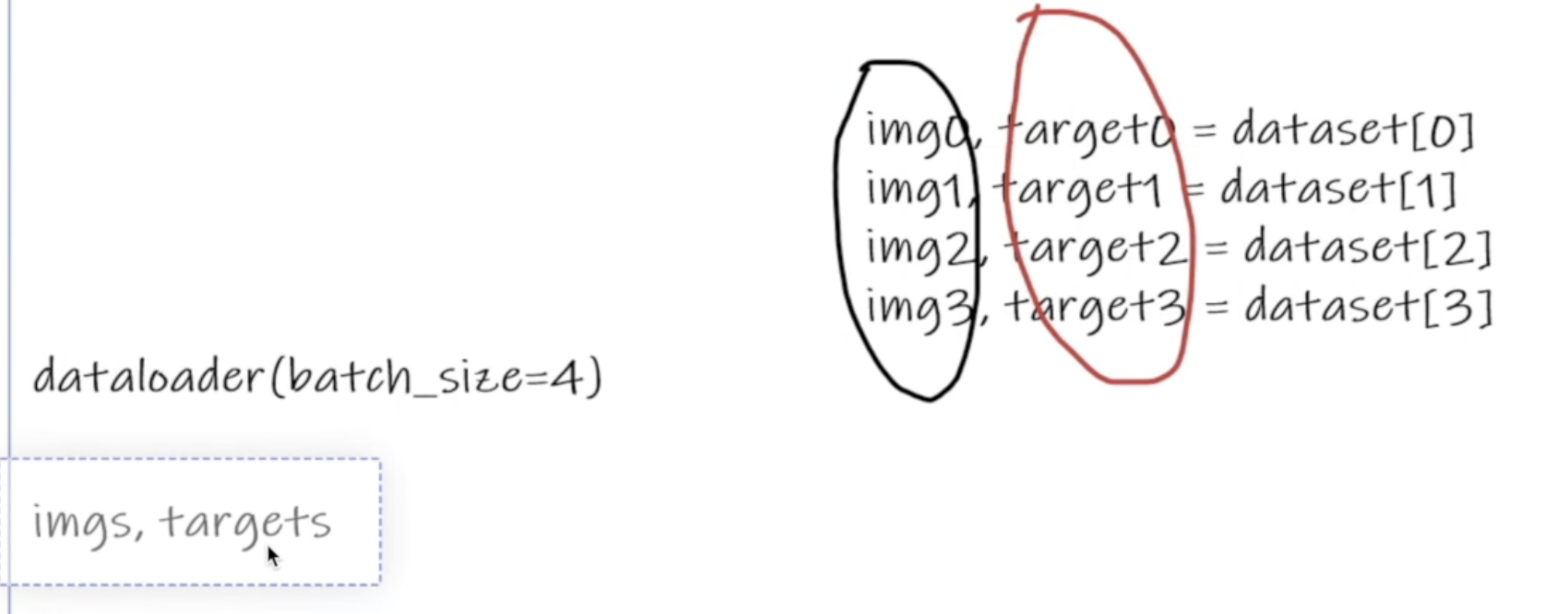

DataLoader

• batch_size 打包成组
  •

import torchvision
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

# 测试数据集
test_data = torchvision.datasets.CIFAR10(root='./dataset', train=False, download=True,
                                         transform=torchvision.transforms.ToTensor())

test_loader = DataLoader(dataset=test_data, batch_size=4, shuffle=True, num_workers=0, drop_last=False)

# 测试数据集中第一张图片及target
img, target = test_data[0] # torch.Size([3, 32, 32]) 3通道
print(img.shape)
print(target)

writer = SummaryWriter("dataloader")
for epoch in range(2):
    step = 0
    for data in test_loader:
        imgs, targets = data
        print(imgs.shape)
        print(targets)

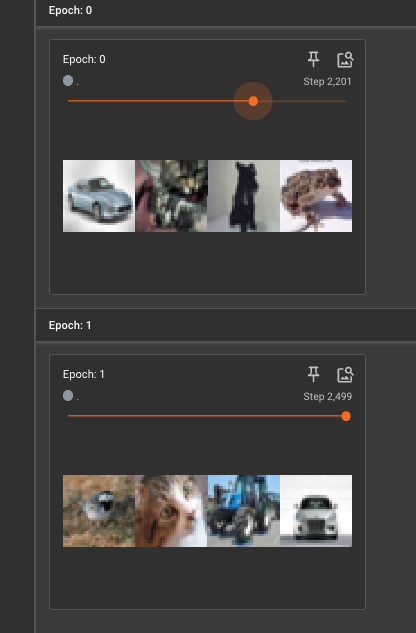

        writer.add_images("Epoch: {}".format(epoch), imgs, step)
        step = step + 1
writer.close()

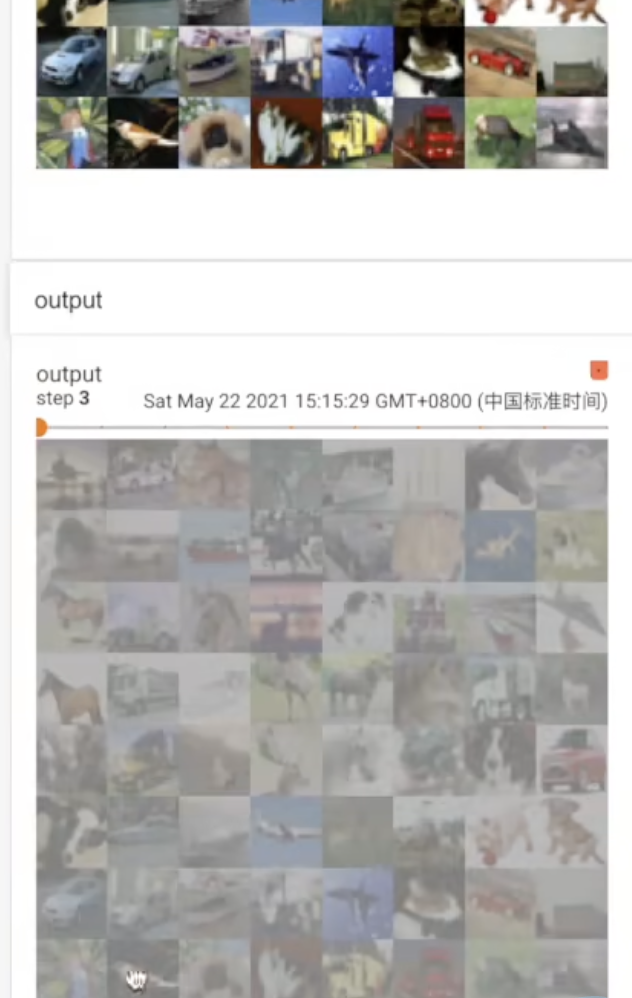

board:

神经网络基本骨架（nn.Module）

nn.model

from sympy.printing.pytorch import torch
from torch import nn

class MyNet(nn.Module):
    def __init__(self):
        super(MyNet, self).__init__()

    def forward(self, input):
        output = input + 1
        return output


my_net = MyNet()
x = torch.tensor([1, 2, 3])
output = my_net(x)
print(output)

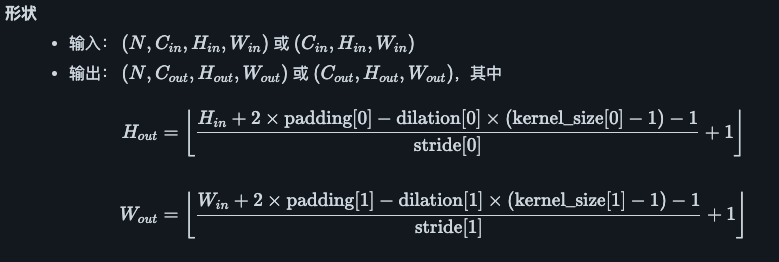

nn.cov

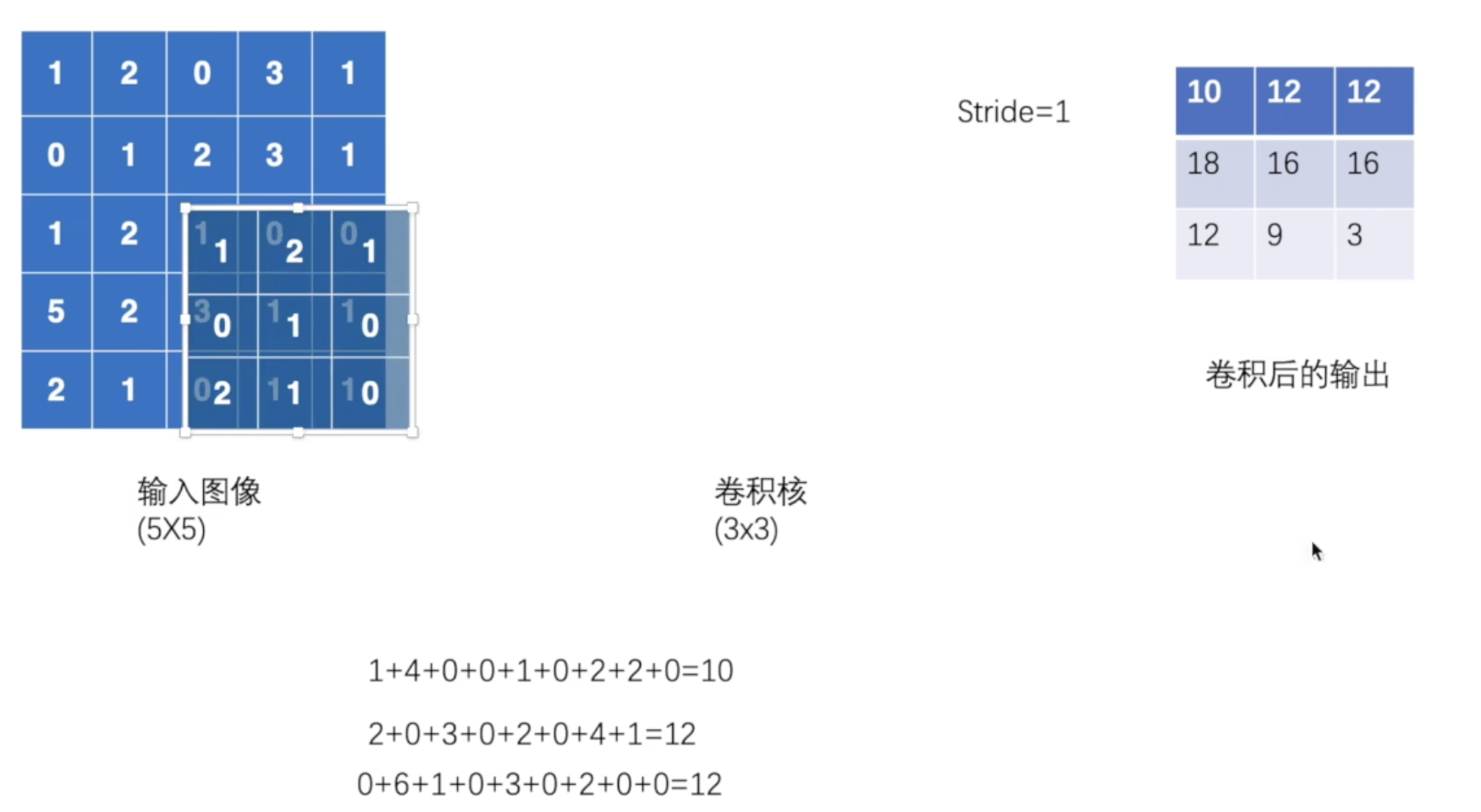

卷积层

• 中文文档
  • https://docs.pytorch.ac.cn/docs/stable/generated/torch.nn.Conv2d.html

• 官方文档
  - https://docs.pytorch.org/docs/2.8/generated/torch.nn.Conv2d.html

• in_channels (int) – 输入图像中的通道数
• out_channels (int) – 卷积产生的通道数
• kernel_size (int 或 tuple) – 卷积核的大小
• stride (int 或 tuple, 可选) – 卷积的步长。默认值：1
• padding (int, tuple 或 str, 可选) – 添加到输入所有四边的填充。默认值：0
• dilation (int 或 tuple, 可选) – 核元素之间的间距。默认值：1
• groups (int, 可选) – 从输入通道到输出通道的阻塞连接数。默认值：1
• bias (bool, 可选) – 如果为 True，则在输出中添加可学习的偏差。默认值：True
• padding_mode (str, 可选) – 'zeros', 'reflect', 'replicate' 或 'circular'。默认值：'zeros'


import torch
import torchvision
from torch import nn
from torch.utils.data import DataLoader
from torch.nn import Conv2d

dataset = torchvision.datasets.CIFAR10("../dataset", train=False, transform=torchvision.transforms.ToTensor(),
                                       download=True)
dataloader = DataLoader(dataset, batch_size=64)


class testConv2d(nn.Module):
    def __init__(self):
        super(testConv2d, self).__init__()
        # 彩色图 3通道 输出6通道 核3x3
        self.conv1 = nn.Conv2d(in_channels=3, out_channels=6, kernel_size=3, stride=1, padding=0)

    def forward(self, x):
        x = self.conv1(x)
        return x


testConv = testConv2d()
print(testConv)
# testConv2d(
#   (conv1): Conv2d(3, 6, kernel_size=(3, 3), stride=(1, 1))
# )

for data in dataloader:
    imgs, targets = data
    output = testConv(imgs)
    print(imgs.shape)   # torch.Size([64, 3, 32, 32])
    print(output.shape) # torch.Size([64, 6, 30, 30]) batch_size=64

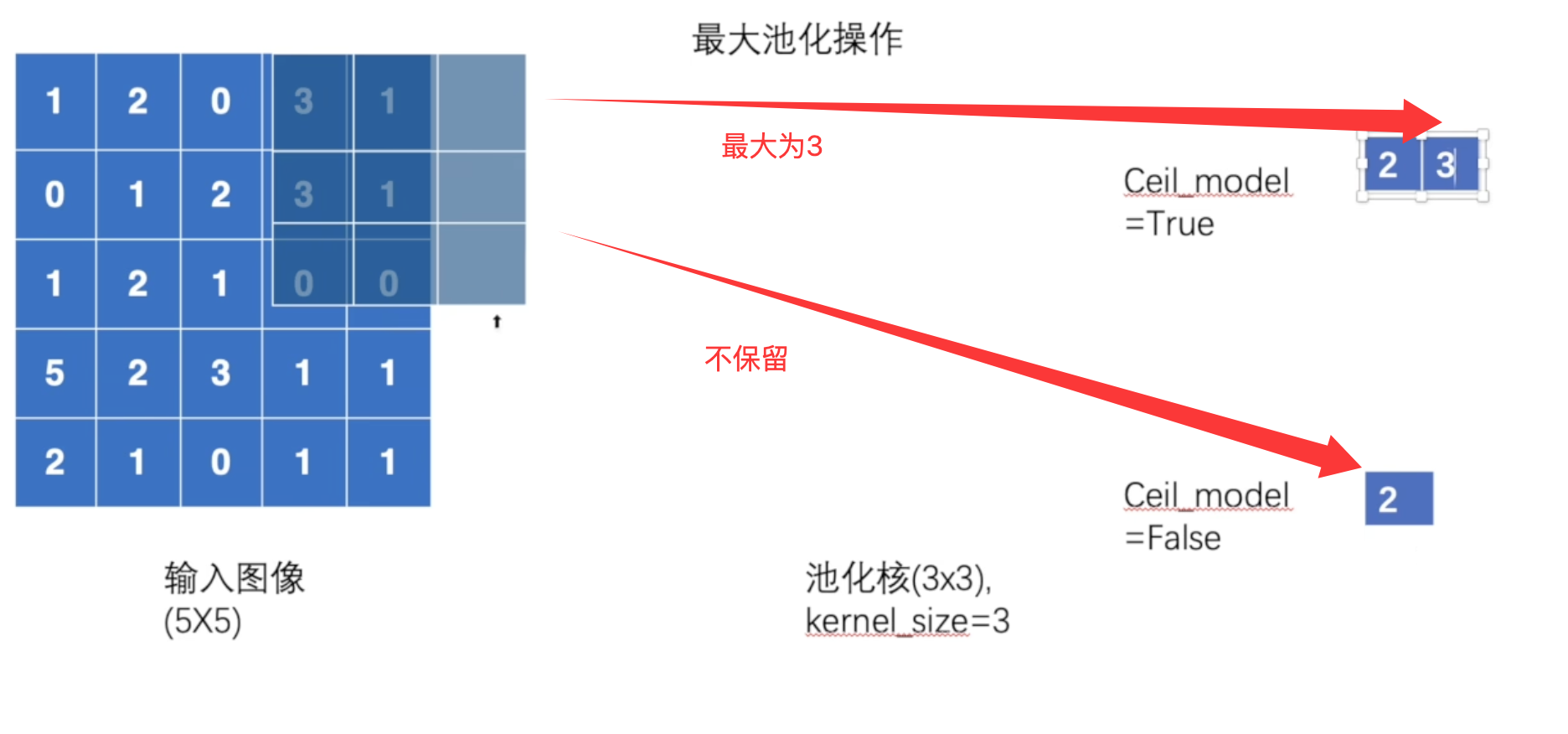

池化层

• https://docs.pytorch.ac.cn/docs/stable/nn.html#pooling-layers
• MaxPool2d 常用
  • • kernel_size – 进行最大值计算的窗口大小
  • stride  – 窗口的步幅。默认值为 kernel_size
  • padding– 在两侧添加的隐式负无穷大填充
  • dilation – 控制窗口中元素步幅的参数
  • return_indices (bool) – 如果为 True，将返回最大值的索引以及输出。对后续的 torch.nn.MaxUnpool2d 有用
  • ceil_mode (bool) – 如果为 True，将使用 ceil 而不是 floor 来计算输出形状

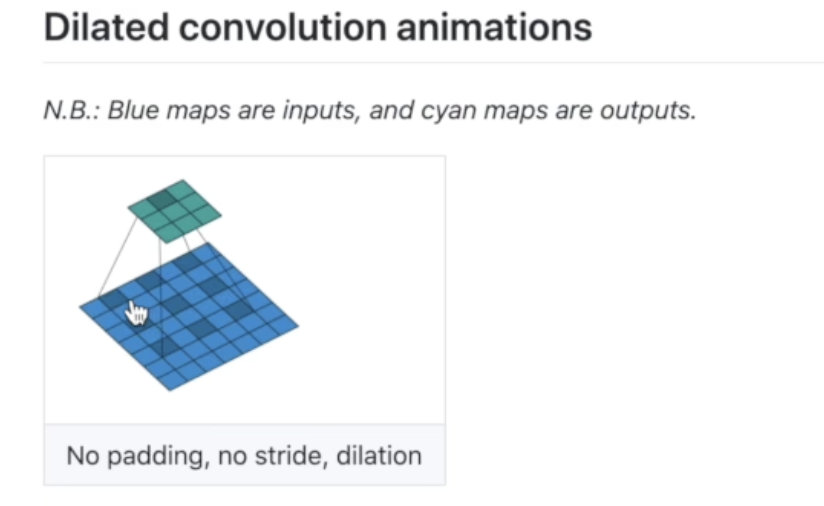

  • dilation 控制元素间隔 空洞卷积
  •
  • ceil_mode
  •
  • 使用
    • self.maxpool1 = MaxPool2d(kernel_size=3, ceil_mode=False)

非线性激活

• `self.relu1 = ReLU()
• self.sigmoid1 = Sigmoid()
•

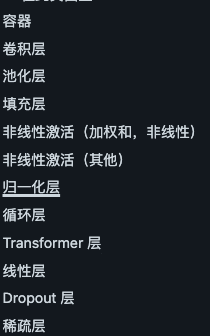

线性层和其他层

正则化（归一化）

• https://docs.pytorch.ac.cn/docs/stable/generated/torch.nn.BatchNorm2d.html#torch.nn.BatchNorm2d

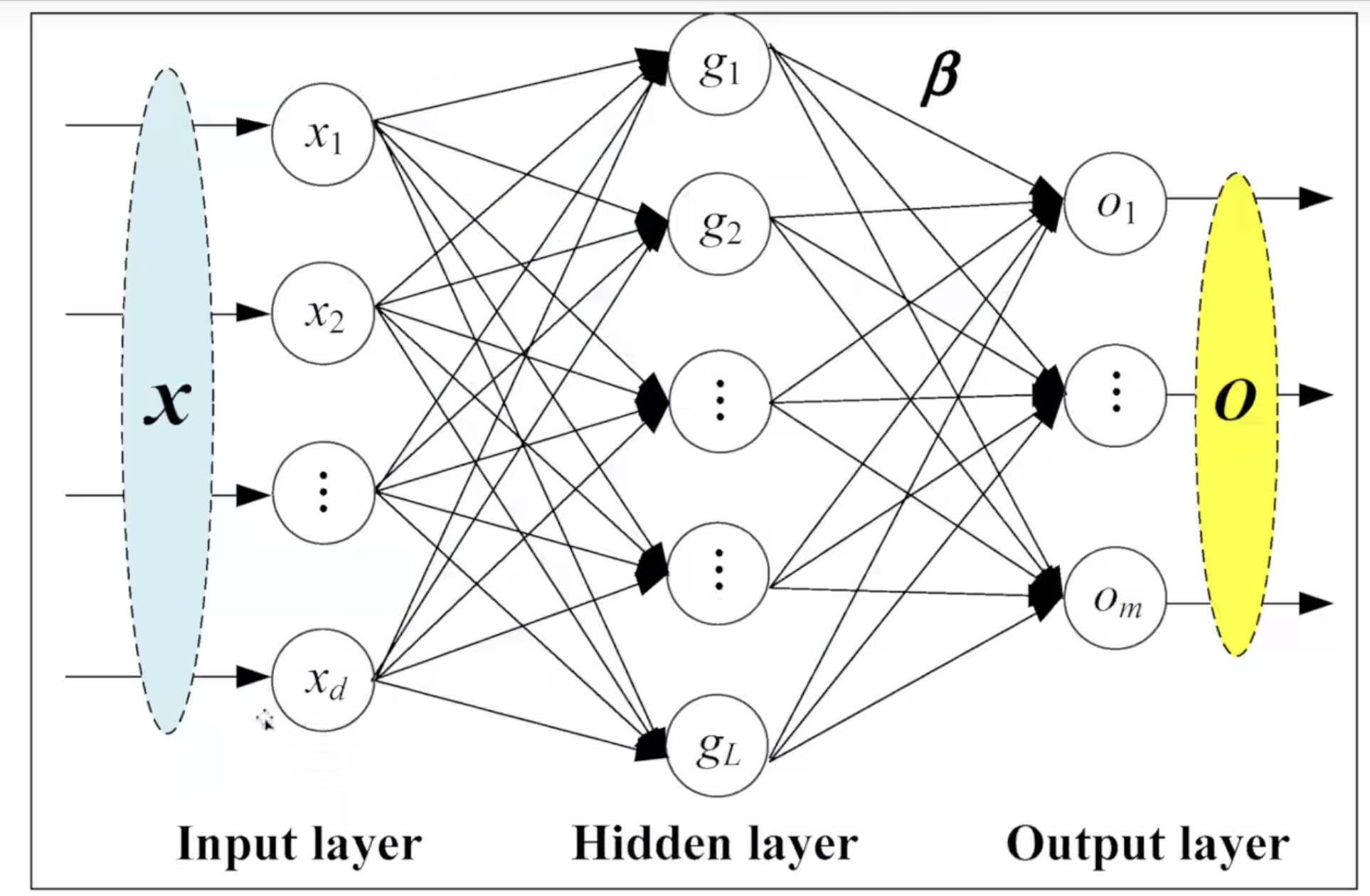

线性层（全连接层）

• 将[64, 3, 32, 32] 图片平展
• 得到196608x1
• 线性层得到 10x1

import torch
import torchvision
from torch import nn
from torch.nn import Linear
from torch.utils.data import DataLoader

dataset = torchvision.datasets.CIFAR10("../dataset", train=False, transform=torchvision.transforms.ToTensor(),
                                       download=True)

dataloader = DataLoader(dataset, batch_size=64, drop_last=True)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.linear1 = Linear(196608, 10)

    def forward(self, input):
        output = self.linear1(input)
        return output

tudui = Tudui()

for data in dataloader:
    imgs, targets = data
    print(imgs.shape) # torch.Size([64, 3, 32, 32])
    output = torch.flatten(imgs)
    print(output.shape) # torch.Size([196608]) 64*3*32*32=196608
    output = tudui(output)
    print(output.shape) # torch.Size([10])

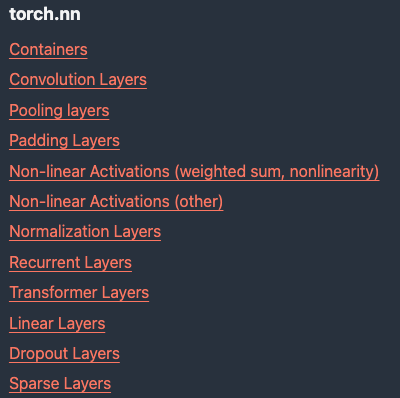

其他

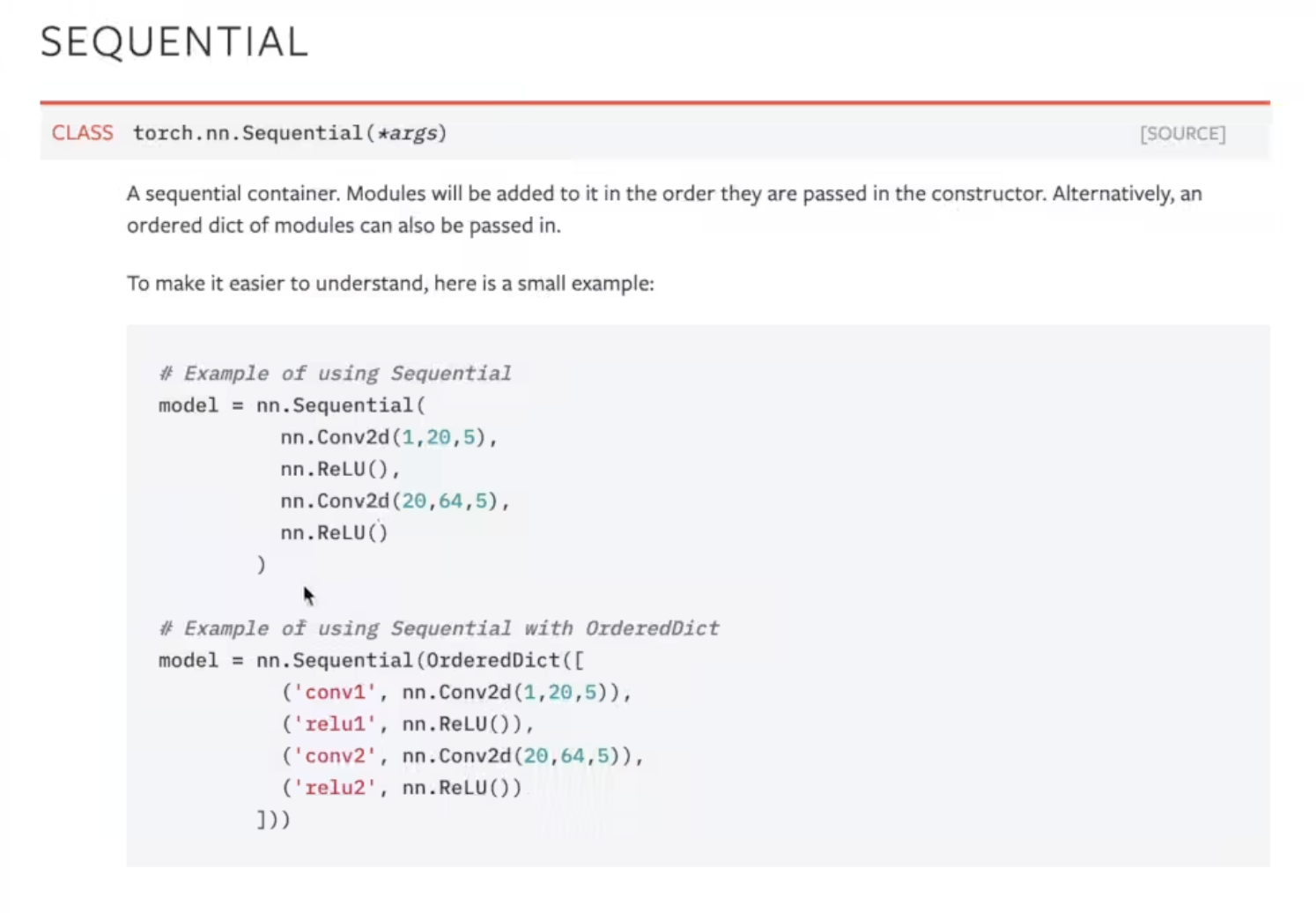

搭建实战和sequential

• 简化代码

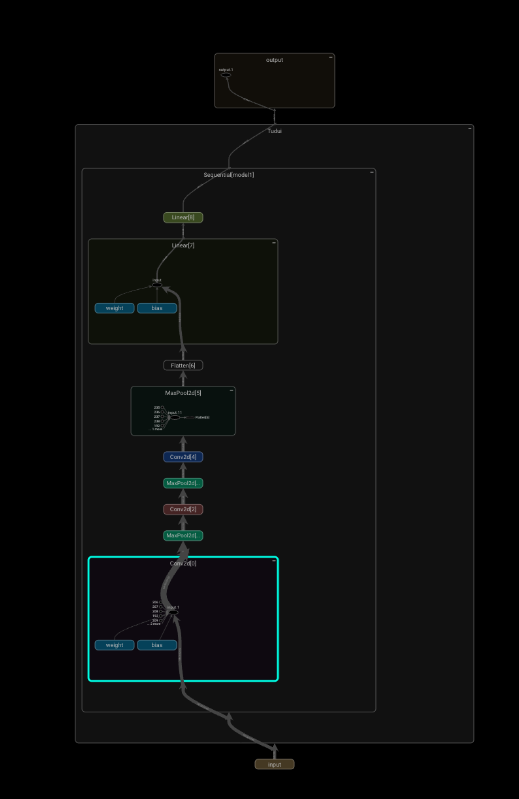

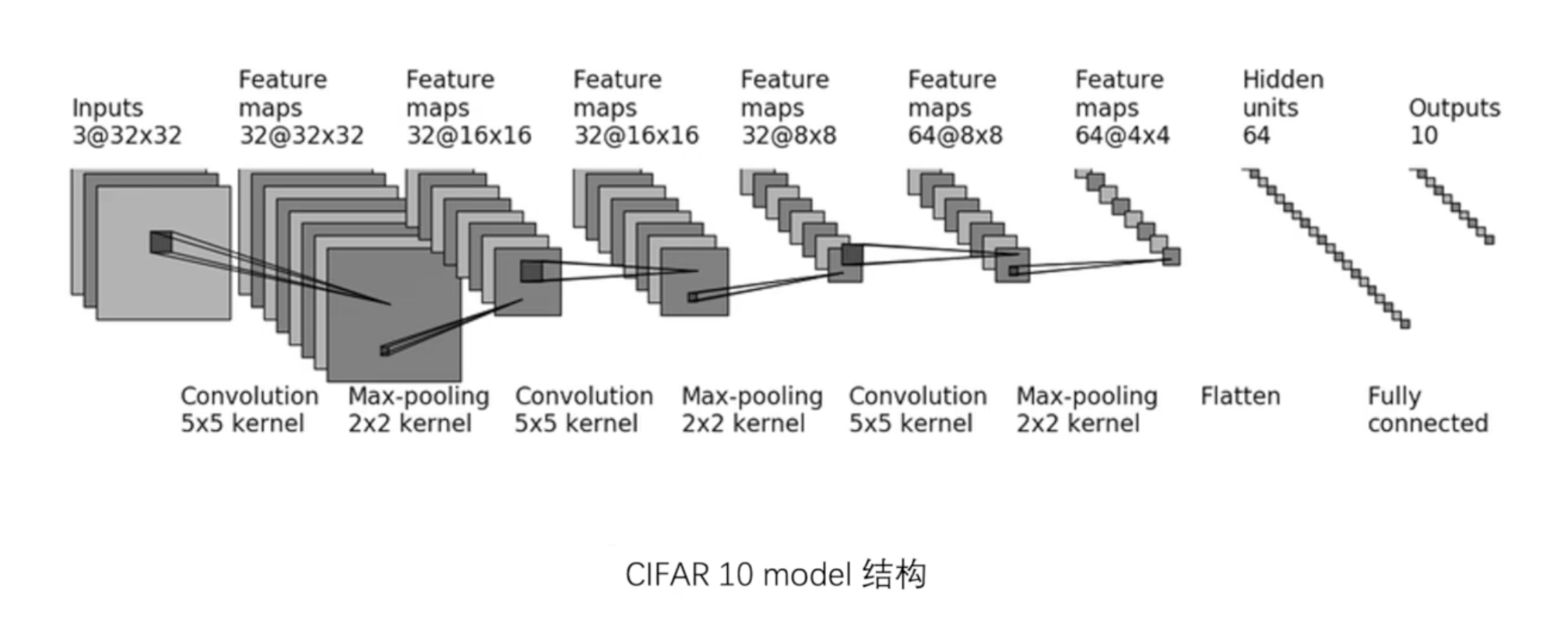

模型图

代码

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torch
from torch import nn
from torch.nn import Conv2d, MaxPool2d, Flatten, Linear, Sequential
from torch.utils.tensorboard import SummaryWriter


class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.model1 = Sequential(
            Conv2d(3, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 64, 5, padding=2),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            Linear(64, 10)
        )

    def forward(self, x):
        x = self.model1(x)
        return x

tudui = Tudui()

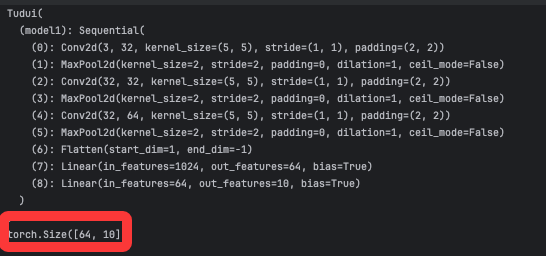

print(tudui)
input = torch.ones((64, 3, 32, 32))   # batch 通道 w h
output = tudui(input)
print(output.shape)

writer = SummaryWriter("../logs_seq")
writer.add_graph(tudui, input)
writer.close()

损失函数和反向传播

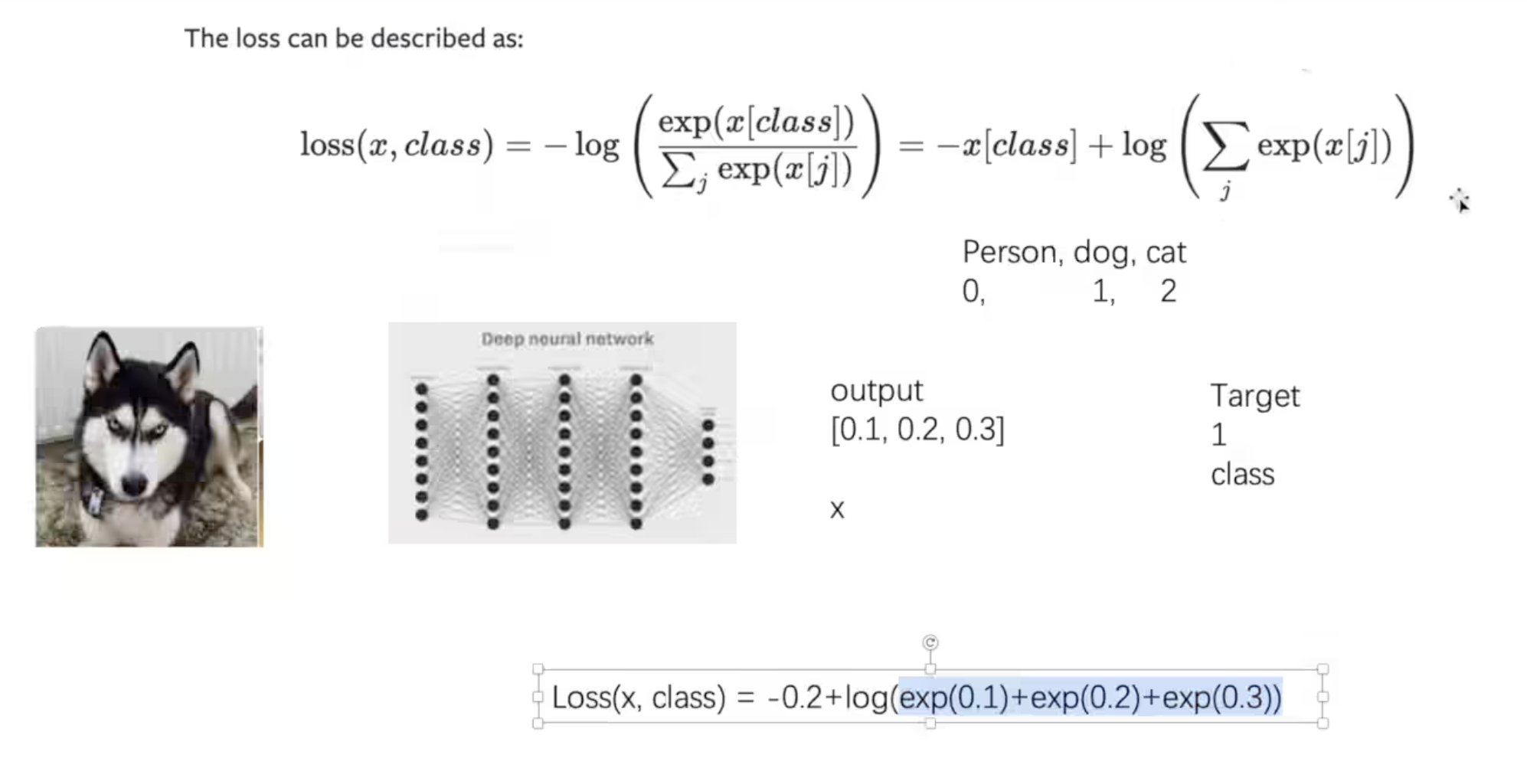

交叉商

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torchvision
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear
from torch.utils.data import DataLoader

dataset = torchvision.datasets.CIFAR10("../dataset", train=False, transform=torchvision.transforms.ToTensor(),
                                       download=True)

dataloader = DataLoader(dataset, batch_size=1)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.model1 = Sequential(
            Conv2d(3, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 64, 5, padding=2),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            Linear(64, 10)
        )

    def forward(self, x):
        x = self.model1(x)
        return x


loss = nn.CrossEntropyLoss()
tudui = Tudui()
for data in dataloader:
    imgs, targets = data
    outputs = tudui(imgs)
    result_loss = loss(outputs, targets)
    result_loss.backward()
    print(result_loss.item())
    print("ok")

优化器

• https://docs.pytorch.ac.cn/docs/stable/optim.html#google_vignette

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torch
import torchvision
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear
from torch.optim.lr_scheduler import StepLR
from torch.utils.data import DataLoader

dataset = torchvision.datasets.CIFAR10("../dataset", train=False, transform=torchvision.transforms.ToTensor(),
                                       download=True)

dataloader = DataLoader(dataset, batch_size=1)

class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.model1 = Sequential(
            Conv2d(3, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 64, 5, padding=2),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            Linear(64, 10)
        )

    def forward(self, x):
        x = self.model1(x)
        return x


loss = nn.CrossEntropyLoss()
tudui = Tudui()
# 模型参数 lr：学习率
optim = torch.optim.SGD(tudui.parameters(), lr=0.01) # 随机梯度下降
for epoch in range(20): # 20轮
    running_loss = 0.0
    for data in dataloader:
        imgs, targets = data # 数据x 真实值y
        outputs = tudui(imgs) # 预测输出
        result_loss = loss(outputs, targets)
        optim.zero_grad() # 梯度清零 必写
        result_loss.backward() # 反向传播
        optim.step() # 对每个参数调优
        running_loss = running_loss + result_loss
    print(running_loss)

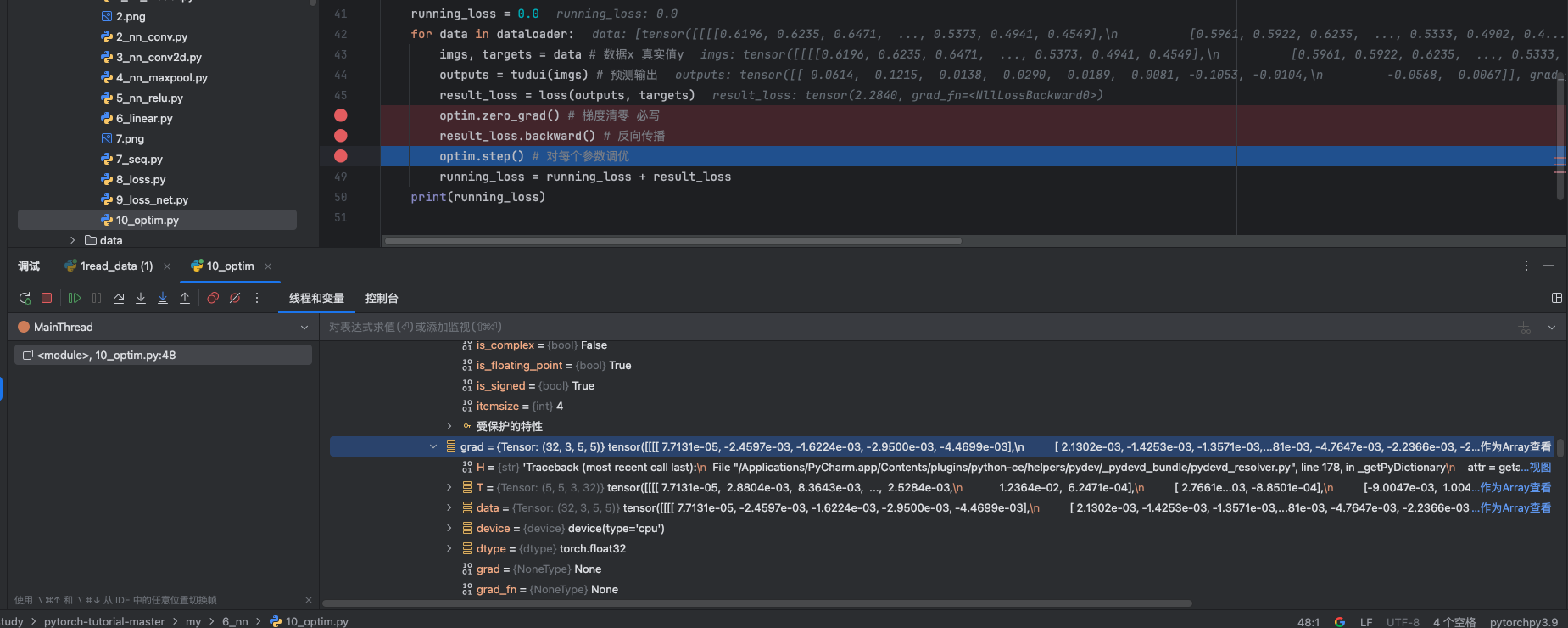

debug查看梯度

现有模型使用和修改

• https://docs.pytorch.org/vision/0.9/models.html

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torchvision

train_data = torchvision.datasets.ImageNet("../data_image_net", split='train', download=True,
                                           transform=torchvision.transforms.ToTensor())
from torch import nn

vgg16_false = torchvision.models.vgg16(pretrained=False)
vgg16_true = torchvision.models.vgg16(pretrained=True)

print(vgg16_true)

train_data = torchvision.datasets.CIFAR10('./dataset', train=True, transform=torchvision.transforms.ToTensor(),
                                          download=True)

vgg16_true.classifier.add_module('add_linear', nn.Linear(1000, 10))
print(vgg16_true)

print(vgg16_false)
vgg16_false.classifier[6] = nn.Linear(4096, 10)
print(vgg16_false)

模型保存和加载

保存

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torch
import torchvision
from torch import nn

vgg16 = torchvision.models.vgg16(pretrained=False)
# 保存方式1,模型结构+模型参数
torch.save(vgg16, "vgg16_method1.pth")

# 保存方式2，模型参数（官方推荐）
torch.save(vgg16.state_dict(), "vgg16_method2.pth")

# 陷阱
class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.conv1 = nn.Conv2d(3, 64, kernel_size=3)

    def forward(self, x):
        x = self.conv1(x)
        return x

tudui = Tudui()
torch.save(tudui, "tudui_method1.pth")

加载

# -*- coding: utf-8 -*-
# 作者：小土堆
# 公众号：土堆碎念
import torch
from model_save import *   # 引入模型
# 方式1-》保存方式1，加载模型
import torchvision
from torch import nn

model = torch.load("vgg16_method1.pth")
# print(model)

# 方式2，加载模型
vgg16 = torchvision.models.vgg16(pretrained=False)
vgg16.load_state_dict(torch.load("vgg16_method2.pth"))
# model = torch.load("vgg16_method2.pth")
# print(vgg16)

# 陷阱1  必须要把模型类型放在该文件
class Tudui(nn.Module):
    def __init__(self):
        super(Tudui, self).__init__()
        self.conv1 = nn.Conv2d(3, 64, kernel_size=3)

    def forward(self, x):
        x = self.conv1(x)
        return x

model = torch.load('tudui_method1.pth')
print(model)

模型训练套路

• 以 CIFAR10训练集为例

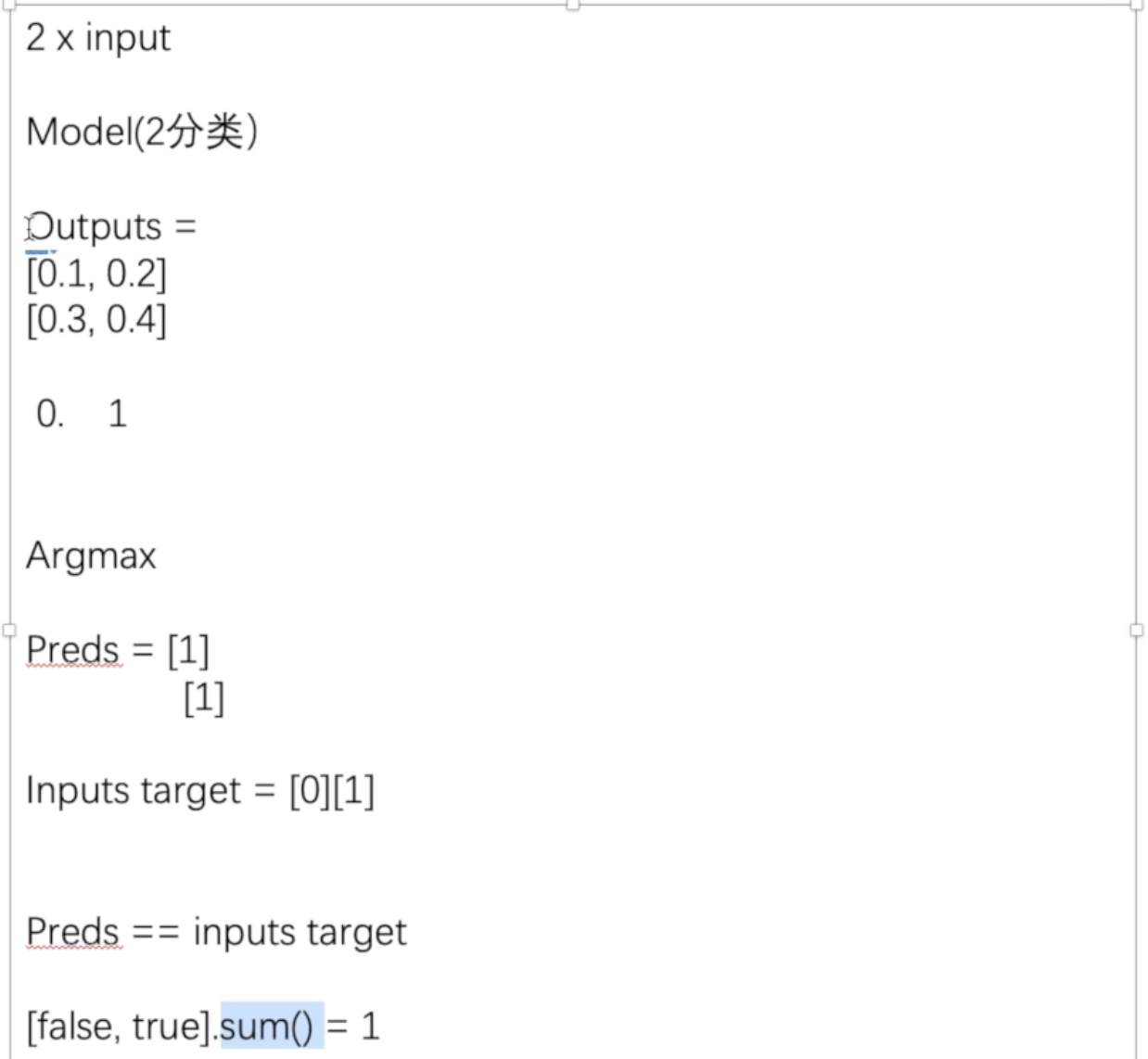

结果转换

•
• outputs 每行表示该组数据输出每个分类的概率
• argmax 该组数据最大的那个概率下标 （作为预测结果）
  • 参数1 横向看
  • 参数0 纵向看
  • 得到 preds 预测结构
• target 真实结果
• preds 和 target 对比
  • 一样则sum + 1
  • 否则sum + 0

import torch
import torchvision
from torch import nn
from torch.utils.data import DataLoader
from torch.utils.tensorboard import SummaryWriter

from model import MyModel

# 数据集
train_data = torchvision.datasets.CIFAR10(root="./dataset",
                                          train=True,
                                          transform=torchvision.transforms.ToTensor(),
                                          download=False)

test_data = torchvision.datasets.CIFAR10(root="./dataset",
                                         train=False,
                                         transform=torchvision.transforms.ToTensor(),
                                         download=False)

train_data_size = len(train_data)
test_data_size = len(test_data)
print("训练数据集的长度为：{}".format(train_data_size))
print("测试数据集的长度为：{}".format(test_data_size))

# 利用dataloader加载数据集
train_dataloader = DataLoader(train_data, batch_size=64)
test_dataloader = DataLoader(test_data, batch_size=64)

# 搭建神经网络
mymodel = MyModel()
print(mymodel)

# 损失函数
loss_fn = nn.CrossEntropyLoss()

# 优化器
learning_rate = 1e-2 # 0.01
optimizer = torch.optim.SGD(mymodel.parameters(), lr=learning_rate, momentum=0.9)

# 设置训练网络的一些参数
# 训练次数
total_train_step = 0
# 测试次数
total_test_step = 0
# 训练轮次
epoch = 5

# 添加tensorboard
writer = SummaryWriter(log_dir='../mymodel_logs')

for i in range(epoch):
    print("----第 {}轮 训练开始-------".format(i))
    # 训练开始
    mymodel.train() # 开启训练模式 可以不写
    for data in train_dataloader:
        imgs, targets = data
        outputs = mymodel(imgs)
        loss = loss_fn(outputs, targets)

        optimizer.zero_grad() # 梯度清零
        loss.backward() # 反向传播
        optimizer.step() # 优化器
        total_train_step += 1
        if total_train_step % 100 == 0: # 防止信息过多
            print("训练次数：{}，损失loss：{}".format(total_train_step, loss.item()))
            writer.add_scalar('train_loss', loss.item(), total_train_step) # 记录训练损失

    # 测试步骤开始
    mymodel.eval() # 开启测试模式 可以不写
    total_test_loss = 0 # 测试集的损失
    total_accuracy = 0 # 正确绿
    with torch.no_grad(): # 关闭梯度计算
        for data in test_dataloader:
            imgs, targets = data
            outputs = mymodel(imgs)
            loss = loss_fn(outputs, targets)
            # print("测试次数：{}，损失loss：{}".format(total_test_step, loss.item()))
            total_test_loss += loss.item()
            accuracy = (outputs.argmax(1) == targets).sum()
            total_accuracy += accuracy

    print("整体测试集的损失loss：{}".format(total_test_loss))
    print("整体测试集上的正确率: {}".format(total_accuracy/test_data_size))
    writer.add_scalar('test_loss', total_test_loss, total_test_step) # 记录测试损失
    writer.add_scalar("test_accuracy", total_accuracy/test_data_size, total_test_step) # 测试正确率
    total_test_step += 1

    torch.save(mymodel, "mymodel_{}.pth".format(i)) # 保存模型参数
    print("模型参数保存成功！")

writer.close() # 关闭tensorboard

模型验证（测试）

• 用训练好的模型
• 给他提供输入

import torchvision.transforms
from PIL import Image
from sympy.printing.pytorch import torch
from torch import nn
from torch.nn import Sequential, Conv2d, MaxPool2d, Flatten, Linear


image_path = "../imgs/dog.png"
image = Image.open(image_path)

print(image)
# <PIL.PngImagePlugin.PngImageFile image mode=RGB size=456x336 at 0x10314CFD0>

image = image.convert('RGB')  # png是四通道
transform = torchvision.transforms.Compose([
    torchvision.transforms.Resize((32, 32)),
    torchvision.transforms.ToTensor(),
])

image = transform(image)
print(image.shape) # torch.Size([3, 32, 32])

class MyModel(nn.Module):
    def __init__(self):
        super(MyModel, self).__init__()
        self.model1 = Sequential(
            Conv2d(3, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 32, 5, padding=2),
            MaxPool2d(2),
            Conv2d(32, 64, 5, padding=2),
            MaxPool2d(2),
            Flatten(),
            Linear(1024, 64),
            Linear(64, 10)
        )

    def forward(self, x):
        x = self.model1(x)
        return x

model = MyModel()
model.load_state_dict(torch.load('../model_mps/mymodel_9.pth'))
print(model)


# 经过 unsqueeze(0) 操作后，image 的形状变为 1x3x32x32。
# 这个新增的维度代表批次大小（batch size），
# 在这里表示有一个包含单张图像的批次。
# image = image.unsqueeze(0)
image = torch.reshape(image, (1, 3, 32, 32))
print("torch.reshape", image.shape)
with torch.no_grad():
    output = model(image)
print(output)
# tensor([[-0.0300,  0.1362,  0.1201, -0.1339,  0.0189, -0.0951,  0.0431,  0.0677, -0.0523,  0.1262]])
print(output.argmax(1)) # 结果： tensor([5]) 属于第5个类别

# CIFAR-10 类别标签
classes = ('plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck')
predicted_class = classes[output.argmax(1).item()]
print(f"预测结果: {predicted_class}") # 预测结果: dog
