入门简介

概述

依赖

1
2
3
4
5
6
7
8
<!--spring cloud alibaba 2.1.0.RELEASE-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-alibaba-dependencies</artifactId>
    <version>2.1.0.RELEASE</version>
    <type>pom</type>
    <scope>import</scope>
</dependency>

产品

image-20230830193857370

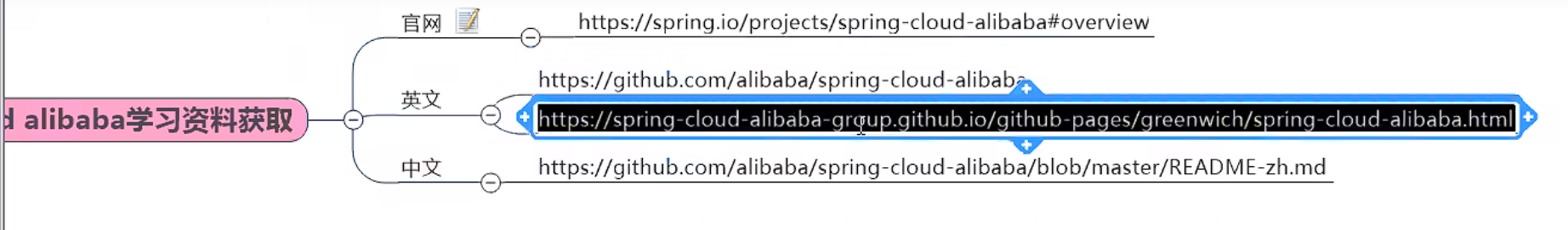

  • 资料

image-20230830194211784

Nacos

简介

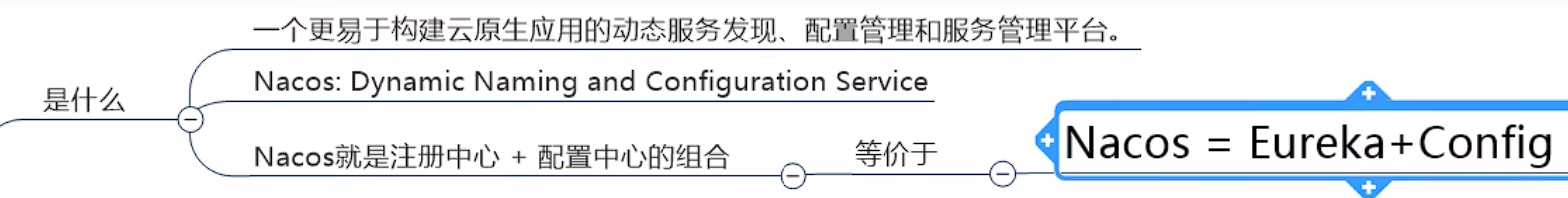

是什么

  • eureka + config + bus

image-20230830194852200

==服务注册==

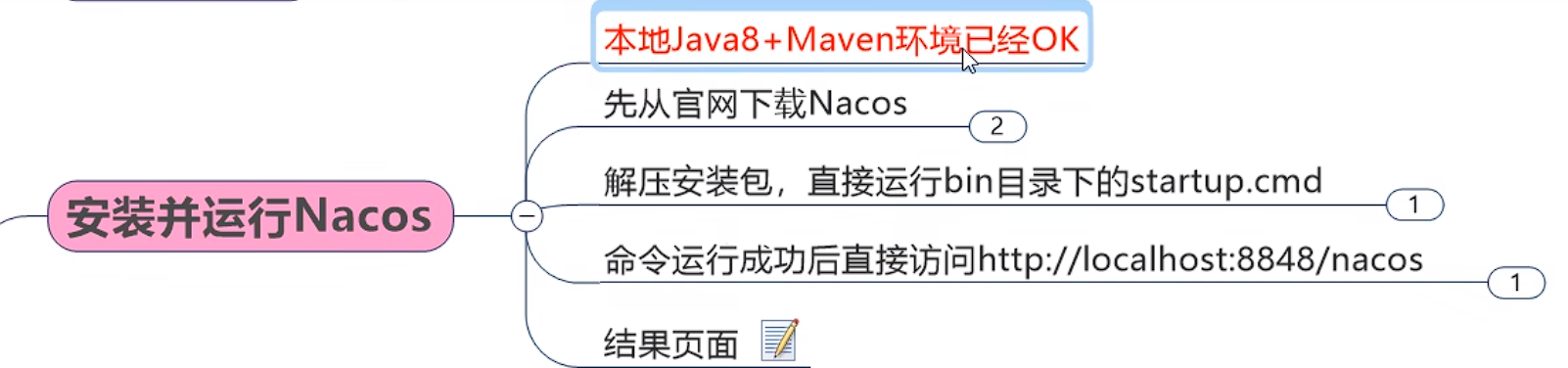

下载安装

  • nacos.io

image-20230830195410907

  1. 下载 https://github.com/alibaba/nacos/releases/tag/1.4.6
  2. 解压 E:\workspace\java\springcloud
  3. 修改配置 https://blog.csdn.net/qq_44377709/article/details/119154631
  4. bin 目录下 start.cmd
  5. startup.cmd -m standalone

服务提供者

建 module

  • cloudalibaba-provider-payment9001

pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
<dependencies>
    <!--SpringCloud ailibaba nacos -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!-- SpringBoot整合Web组件 -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--日常通用jar包配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
server:
  port: 9001

spring:
  application:
    name: nacos-payment-provider
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #配置Nacos地址

management:
  endpoints:
    web:
      exposure:
        include: "*"

主启动

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
@SpringBootApplication
@EnableDiscoveryClient
public class PaymentMain9001 {
     public static void main(String[] args) {
           SpringApplication.run(PaymentMain9001.class, args);
      }

    @RestController
    public class EchoController {
        @GetMapping(value = "/echo/{string}")
        public String echo(@PathVariable String string) {
            return "Hello Nacos Discovery " + string;
        }
    }
}

业务类

1
2
3
4
5
6
7
8
9
10
11
12
@RestController
public class PaymentController
{
    @Value("${server.port}")
    private String serverPort;

    @GetMapping(value = "/payment/nacos/{id}")
    public String getPayment(@PathVariable("id") Integer id)
    {
        return "nacos registry, serverPort: "+ serverPort+"\t id"+id;
    }
}

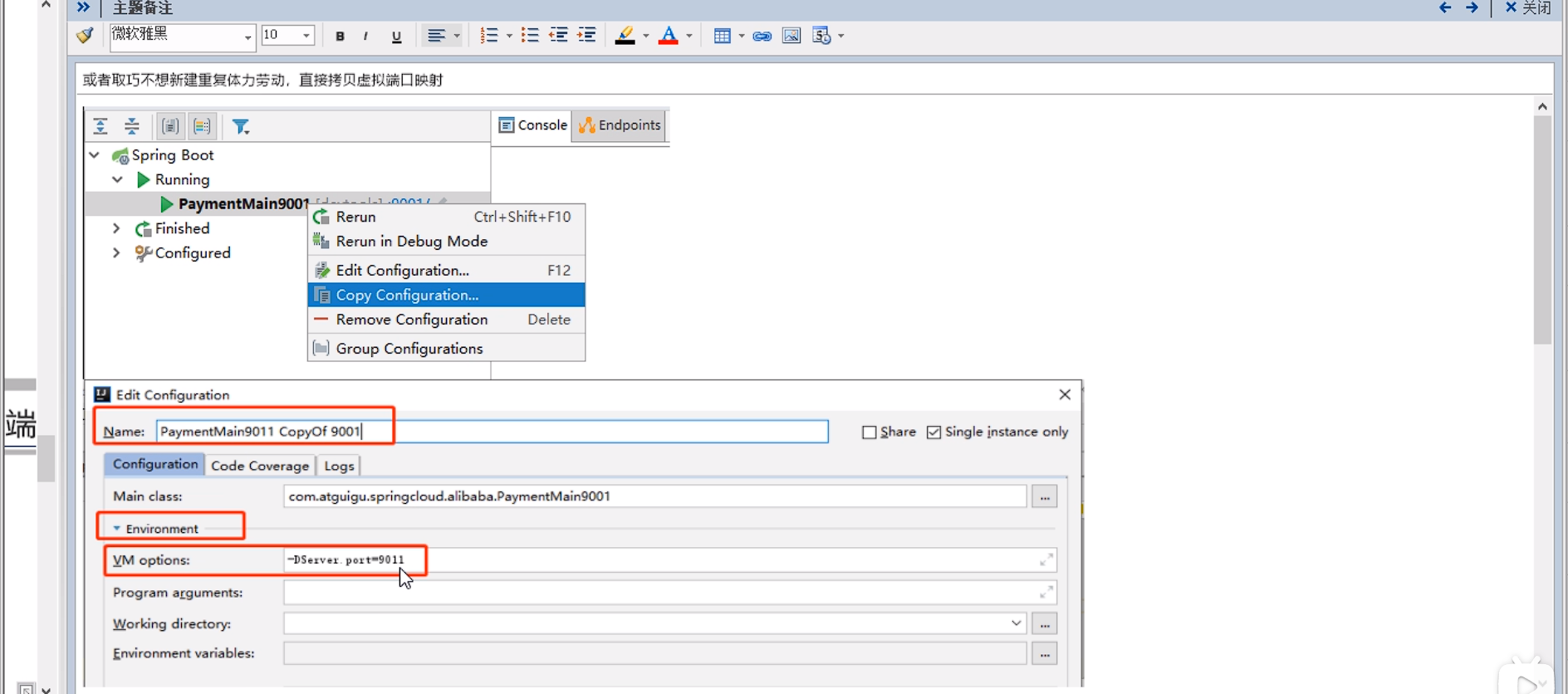

==拷贝启动第二个实例==

  • 参数 -DServer.port=9011

image-20230830204639208

服务消费者

pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<dependencies>
    <!--SpringCloud ailibaba nacos -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
    <dependency>
        <groupId>com.cyt.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <!-- SpringBoot整合Web组件 -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--日常通用jar包配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
server:
  port: 83

spring:
  application:
    name: nacos-order-consumer
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848

#消费者将要去访问的微服务名称(注册成功进nacos的微服务提供者)
service-url:
  nacos-user-service: http://nacos-payment-provider

配置中心

image-20230831092406868

配置服务

建 module

  • cloudalibaba-config-nacos-client3377

pom

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
<dependencies>
    <!--nacos-config-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
    </dependency>
    <!--nacos-discovery-->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!--web + actuator-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--一般基础配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

yml

image-20230831092727463

  1. application.yml
1
2
3
4
5
spring:
  profiles:
    active: dev # 表示开发环境
    #active: test # 表示测试环境
    #active: info
  1. boootstrap.yml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# nacos配置
server:
  port: 3377

spring:
  application:
    name: nacos-config-client
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #Nacos服务注册中心地址
      config:
        server-addr: localhost:8848 #Nacos作为配置中心地址
        file-extension: yaml #指定yaml格式的配置
        group: DEV_GROUP
        namespace: 7d8f0f5a-6a53-4785-9686-dd460158e5d4
# ${spring.application.name}-${spring.profile.active}.${spring.cloud.nacos.config.file-extension}
# nacos-config-client-dev.yaml

# nacos-config-client-test.yaml   ----> config.info
  1. 配置项说明

${spring.application.name}-${spring.profile.active}.${spring.cloud.nacos.config.file-extension}

image-20230831093432973

主启动

1
2
3
4
5
6
7
@EnableDiscoveryClient
@SpringBootApplication
public class NacosConfigClientMain3377 {
     public static void main(String[] args) {
           SpringApplication.run(NacosConfigClientMain3377.class, args);
      }
}

业务类

1
2
3
4
5
6
7
8
9
10
11
12
@RestController
@RefreshScope //支持Nacos的动态刷新功能。
public class ConfigClientController
{
    @Value("${config.info}")
    private String configInfo;

    @GetMapping("/config/info")
    public String getConfigInfo() {
        return configInfo;
    }
}

nacos 添加配置

  1. 点击+号

image-20230831094000648

  1. 配置信息

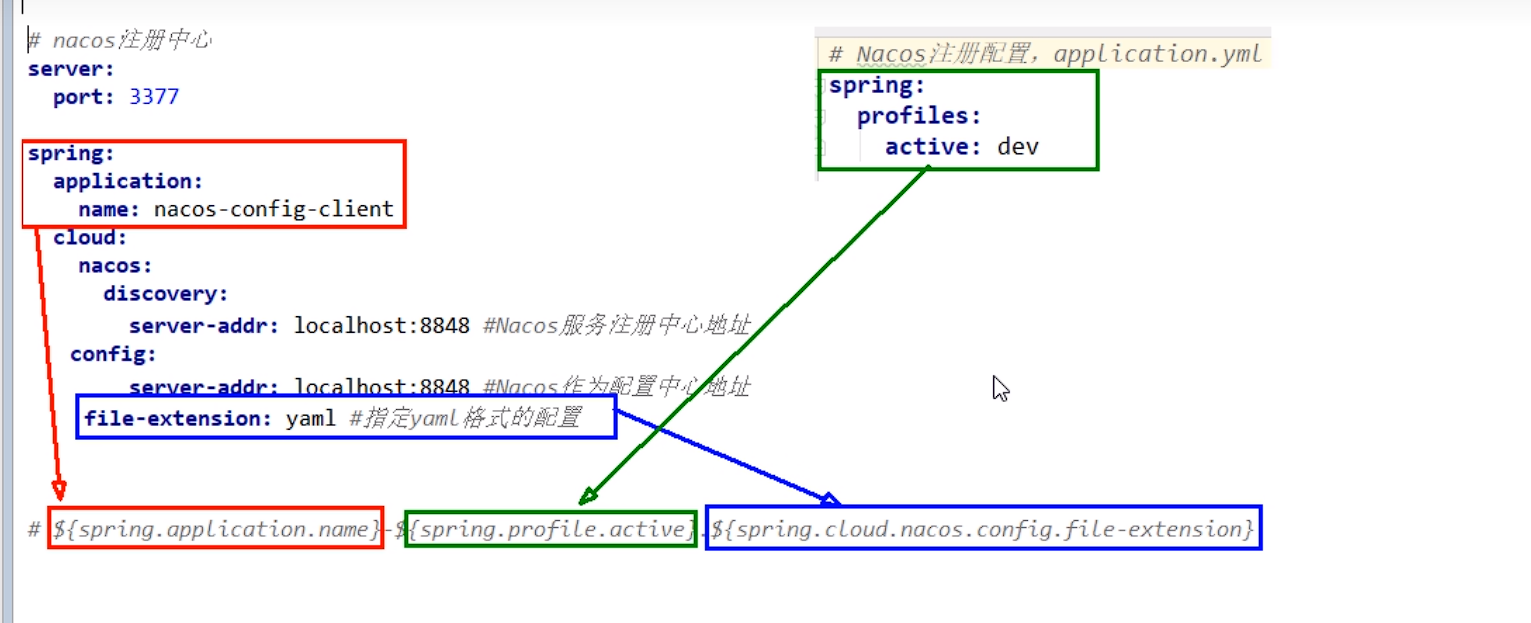

  • 根据公式推出 ID： nacos-config-client-dev.yaml ==一定是 yaml！！==
  • image-20230831094336978

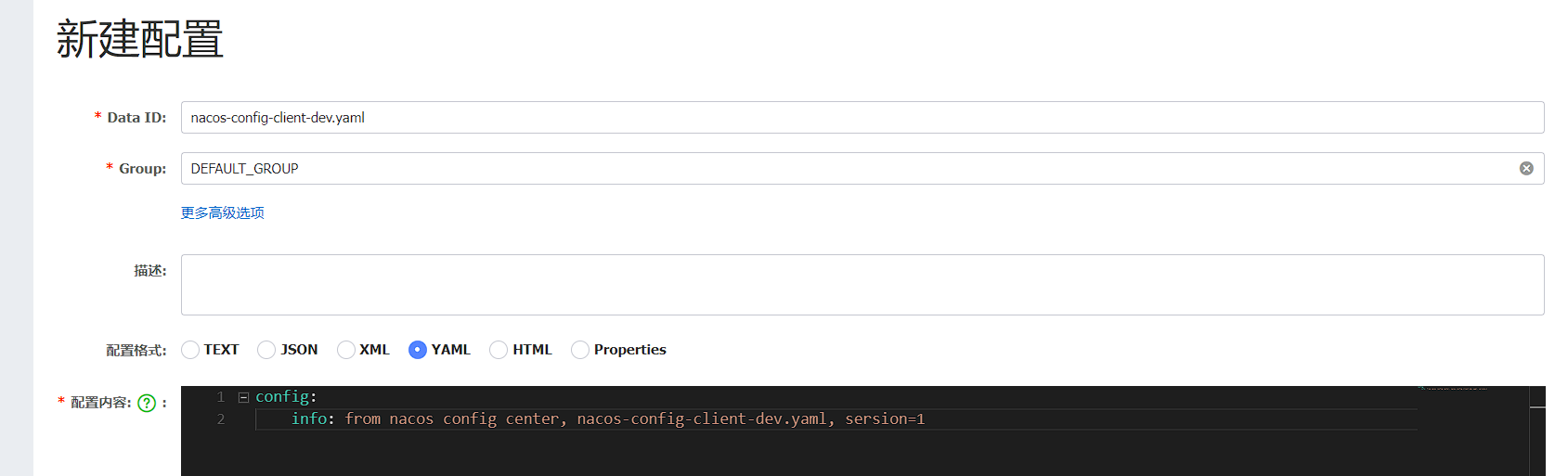

  • image-20230831094742829

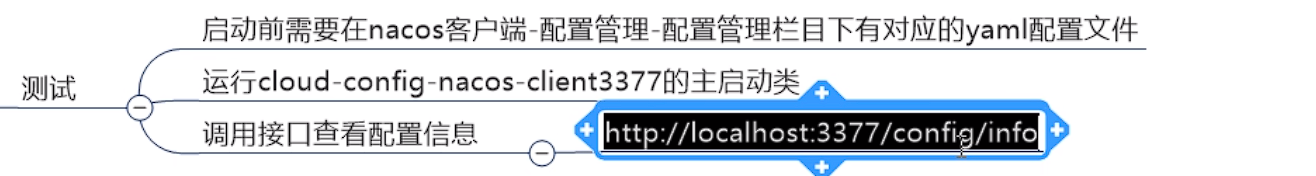

测试

image-20230831094433416

命名空间-分组-DataID

image-20230831154504344

DataID 配置

  1. 添加新配置
  2. image-20230831160152881
  3. 修改 application.yml
1
2
3
4
spring:
  profiles:
    #    active: dev # 表示开发环境
    active: test # 表示测试环境

Group

  1. 配置 DEV 组

image-20230831161328931

  1. 配置 TEST 组

image-20230831161631951

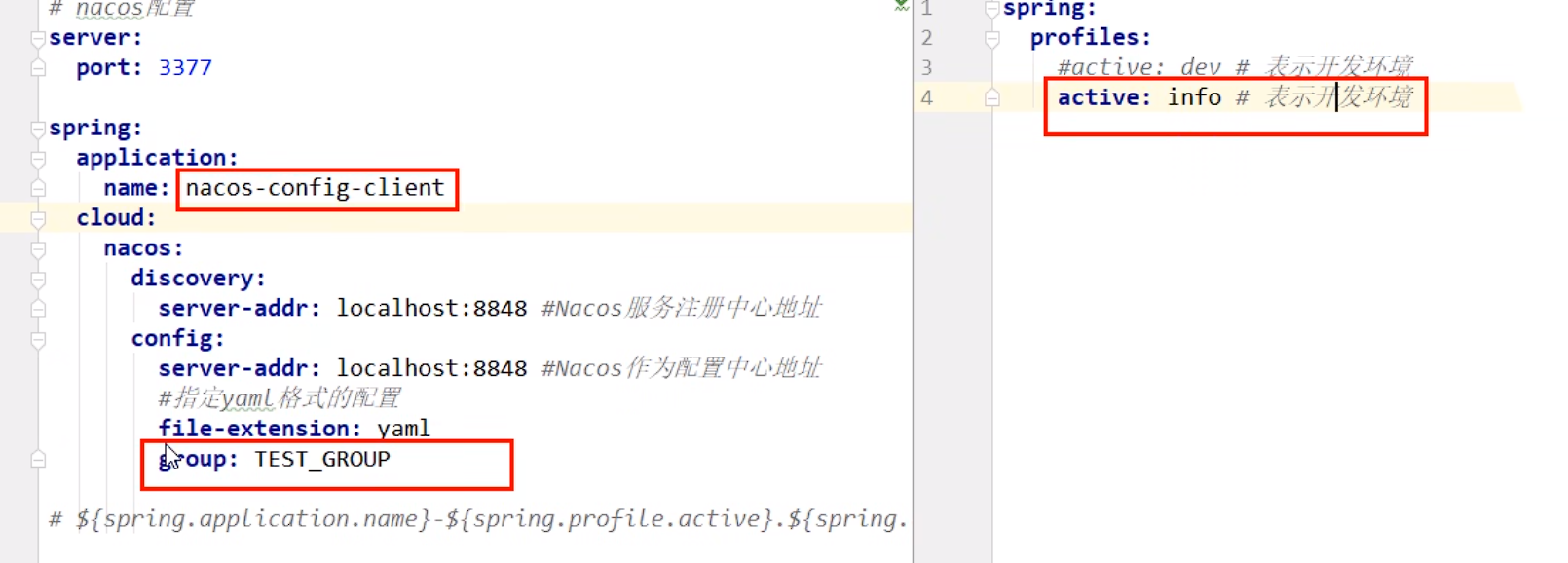

  1. 修改配置

image-20230831161531406

NameSpace

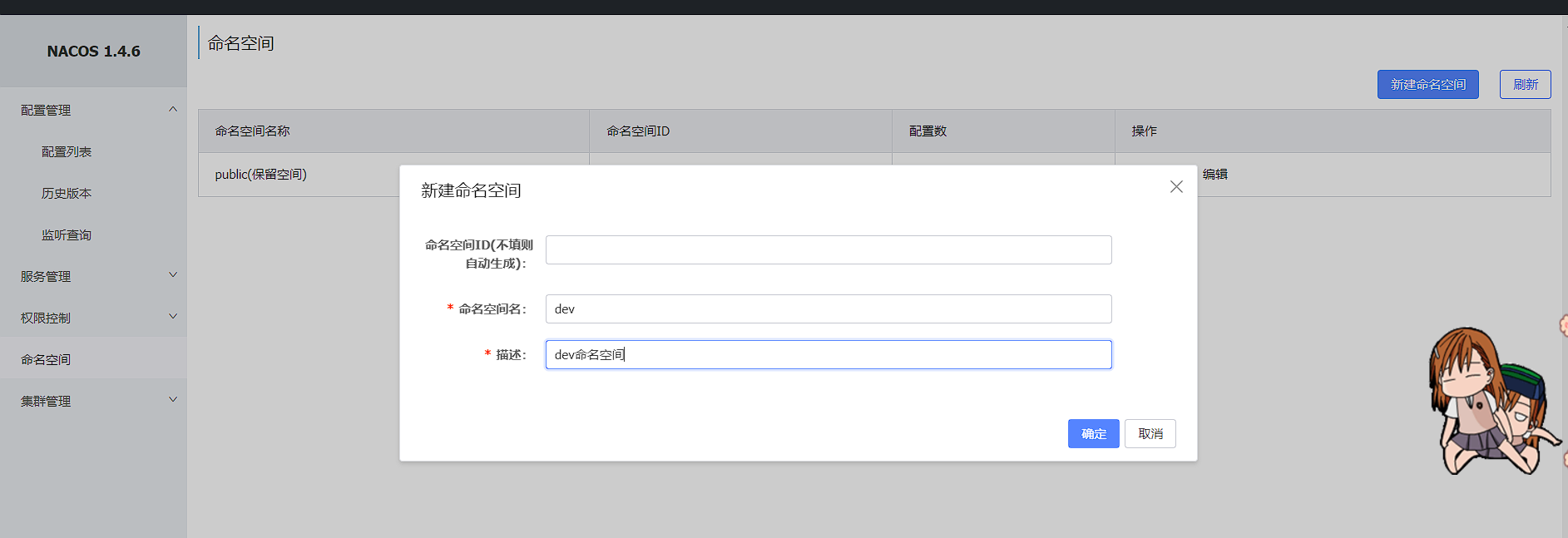

  1. 创建命名空间

image-20230831171357737

  1. 拷贝 dev 命名空间 iD

0ecd3295-bc3d-40c8-9817-3fc1aebe3e56

image-20230831171629956

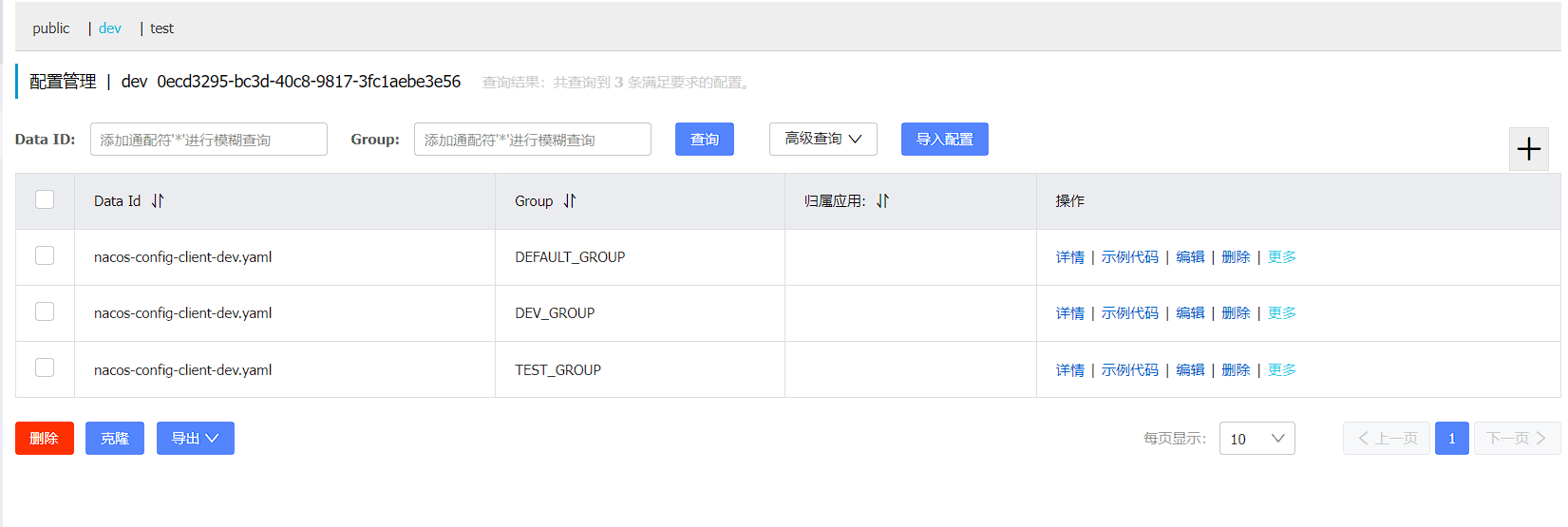

  1. 回到配置列表 dev 中

image-20230831172606477

  1. 新建配置

image-20230831172628614

  1. 修改 yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# bootstrap
spring:
  application:
    name: nacos-config-client
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #Nacos服务注册中心地址
      config:
        server-addr: localhost:8848 #Nacos作为配置中心地址
        file-extension: yaml #指定yaml格式的配置
        group: DEV_GROUP
        namespace: 0ecd3295-bc3d-40c8-9817-3fc1aebe3e56

# application
spring:
  profiles:
    #    active: test # 表示测试环境
    active: dev # 表示开发环境
    #    active: info

==namespace 相当于 package==

==group 相当于文件夹 controller service==

==id 相当于类==

集群和持久化配置

Sentinel

概述

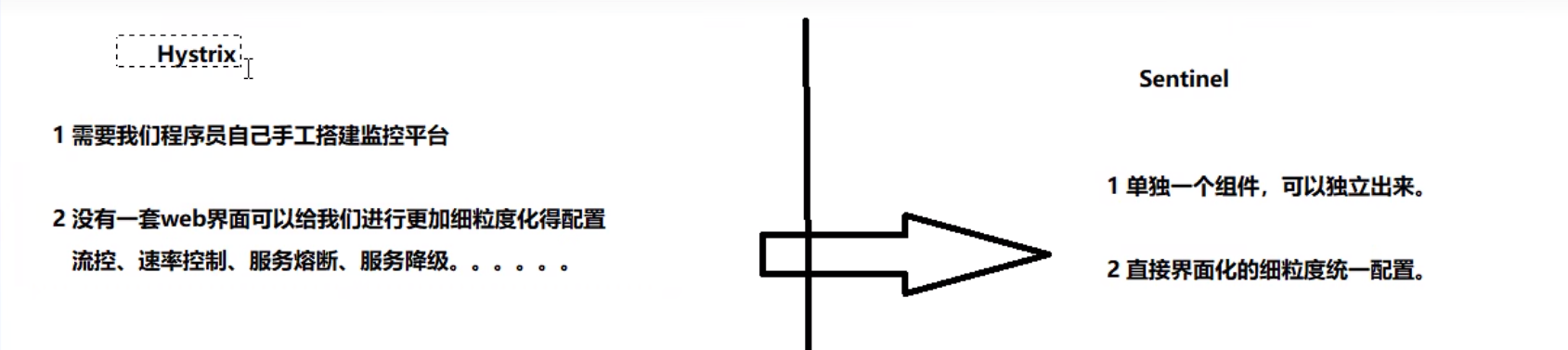

对比

image-20230904150138400

主要特征

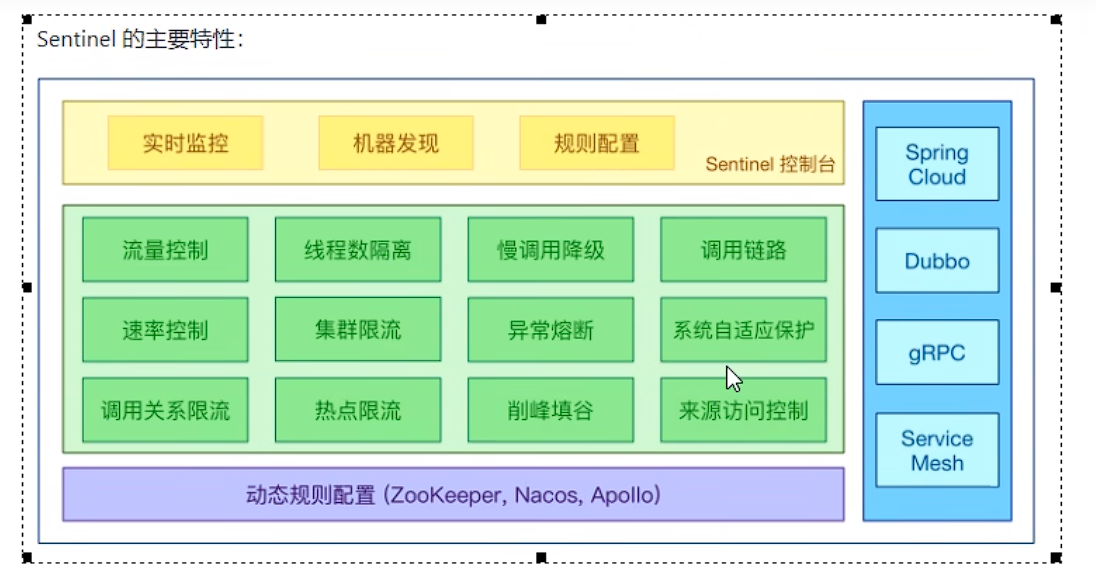

image-20230904150422952

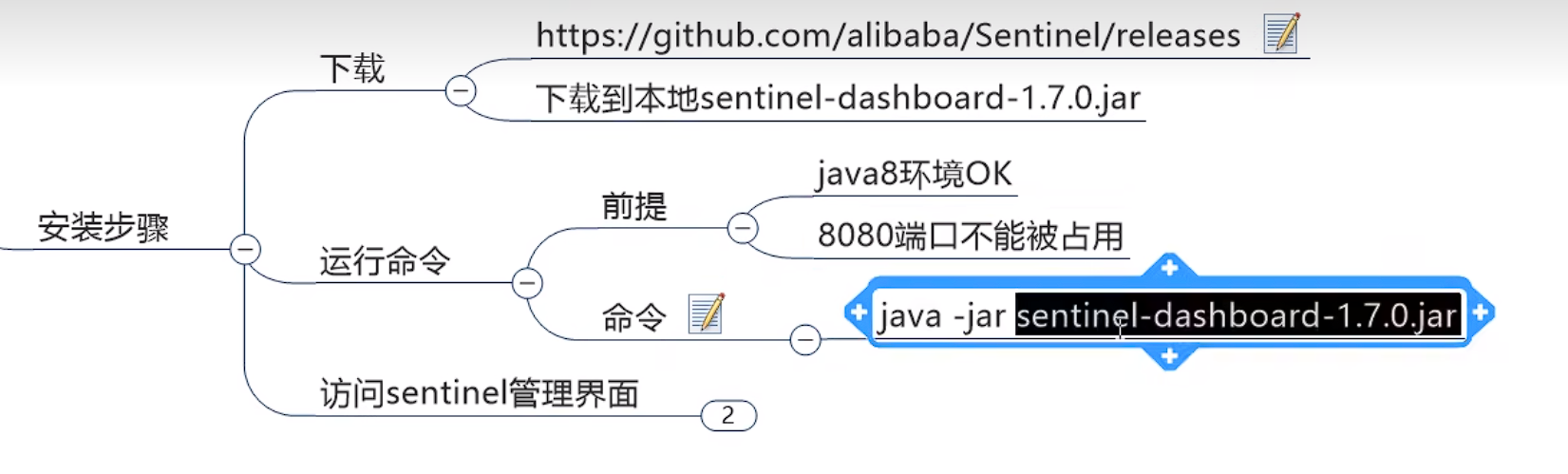

安装 sentinel 控制台

  • 安装地址： E:\workspace\java\springcloud
  • -Dserver.port=XXX，指定端口

image-20230904151341069

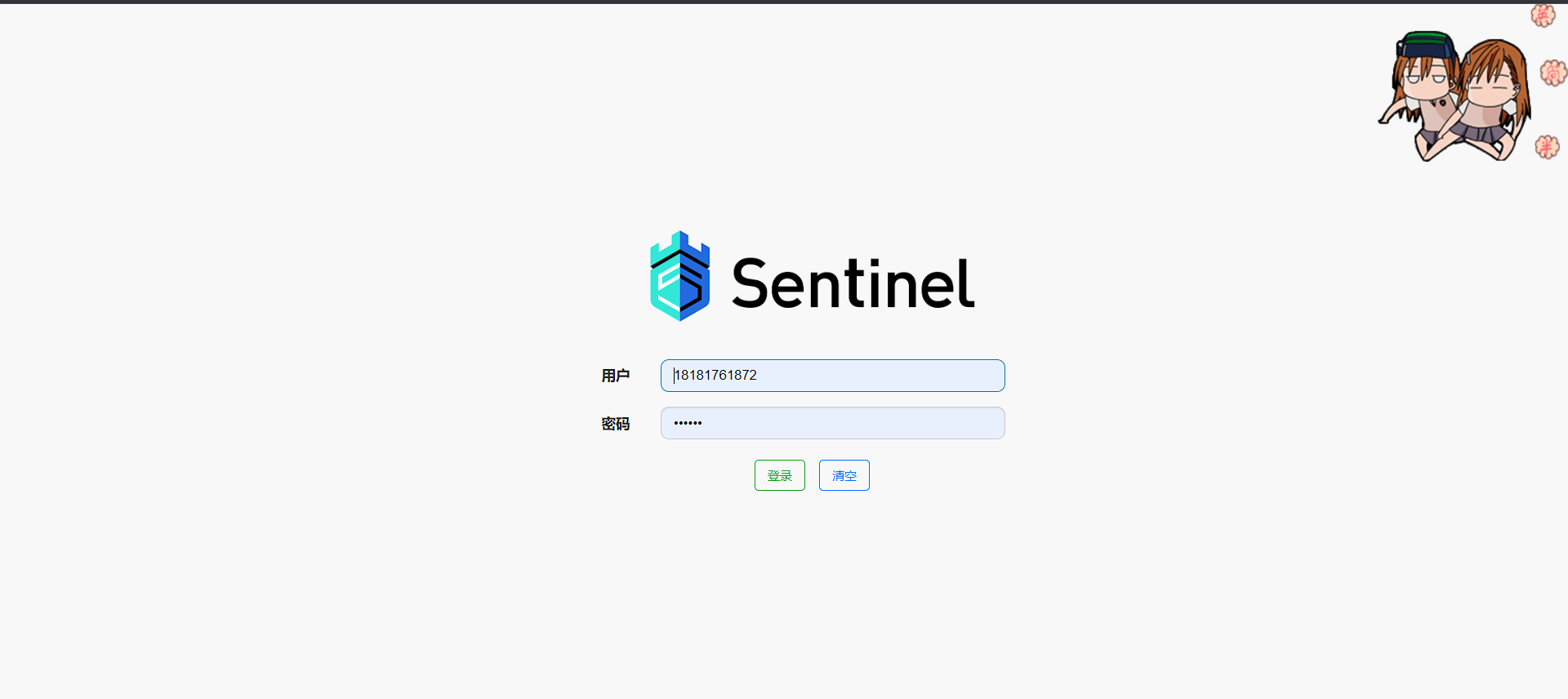

  • id & password： sentinel

image-20230904151549527

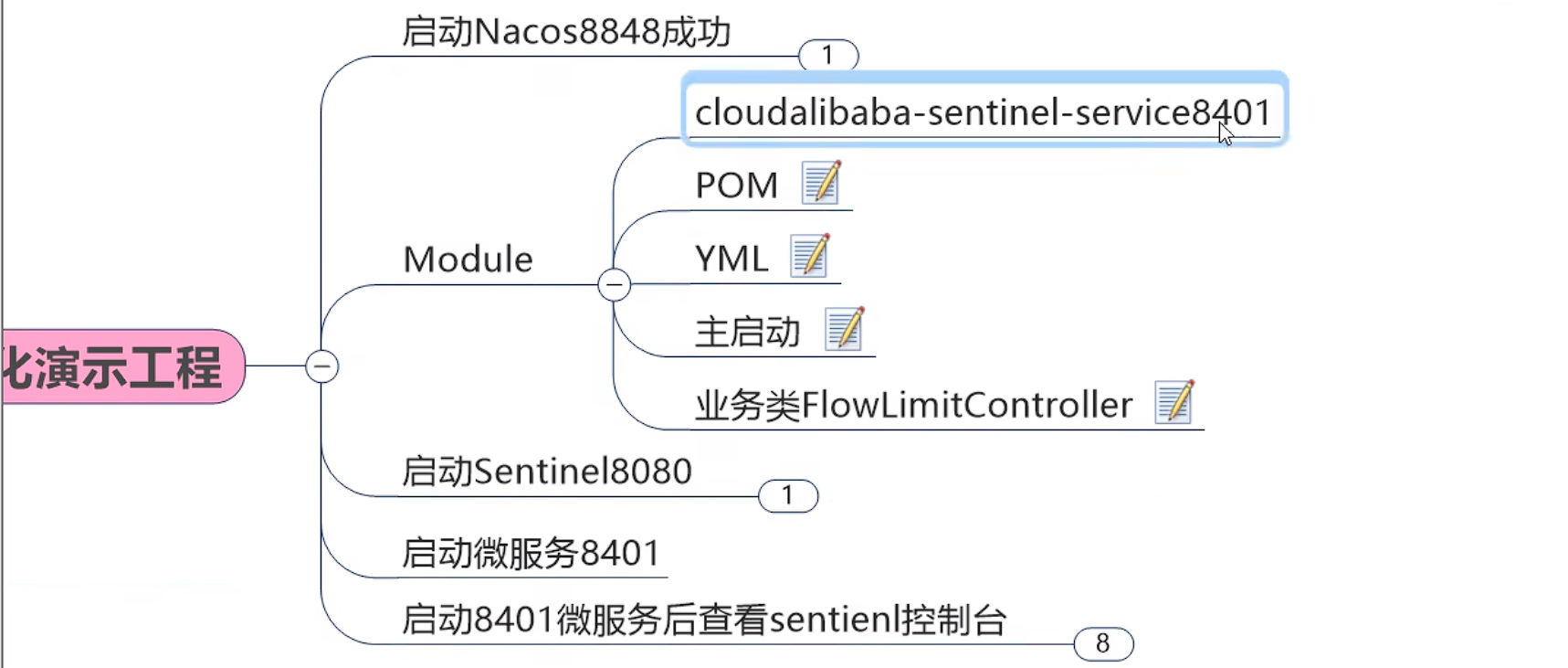

初始化演示工程

image-20230904151827612

建 8401 服务

  • cloudalibaba-sentinel-service8401

POM

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
<dependencies>
    <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
        <groupId>com.cyt.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <!--SpringCloud ailibaba nacos -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
    </dependency>
    <!--SpringCloud ailibaba sentinel-datasource-nacos 后续做持久化用到-->
    <dependency>
        <groupId>com.alibaba.csp</groupId>
        <artifactId>sentinel-datasource-nacos</artifactId>
    </dependency>
    <!--SpringCloud ailibaba sentinel -->
    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
    </dependency>
    <!--openfeign-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
    <!-- SpringBoot整合Web组件+actuator -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--日常通用jar包配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>cn.hutool</groupId>
        <artifactId>hutool-all</artifactId>
        <version>4.6.3</version>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
server:
  port: 8401

spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #Nacos服务注册中心地址
    sentinel:
      transport:
        dashboard: localhost:8080 #配置Sentinel dashboard地址
        port: 8719
      datasource:
        ds1:
          nacos:
            server-addr: localhost:8848
            dataId: cloudalibaba-sentinel-service
            groupId: DEFAULT_GROUP
            data-type: json
            rule-type: flow

management:
  endpoints:
    web:
      exposure:
        include: "*"

feign:
  sentinel:
    enabled: true # 激活Sentinel对Feign的支持

主启动

1
2
3
4
5
6
7
@SpringBootApplication
@EnableDiscoveryClient
public class MainApp8401 {
     public static void main(String[] args) {
           SpringApplication.run(MainApp8401.class, args);
      }
}

业务类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@RestController
@Slf4j
public class FlowLimitController
{
    @GetMapping("/testA")
    public String testA()
    {
        return "------testA";
    }

    @GetMapping("/testB")
    public String testB()
    {
        log.info(Thread.currentThread().getName()+"\t"+"...testB");
        return "------testB";
    }
}

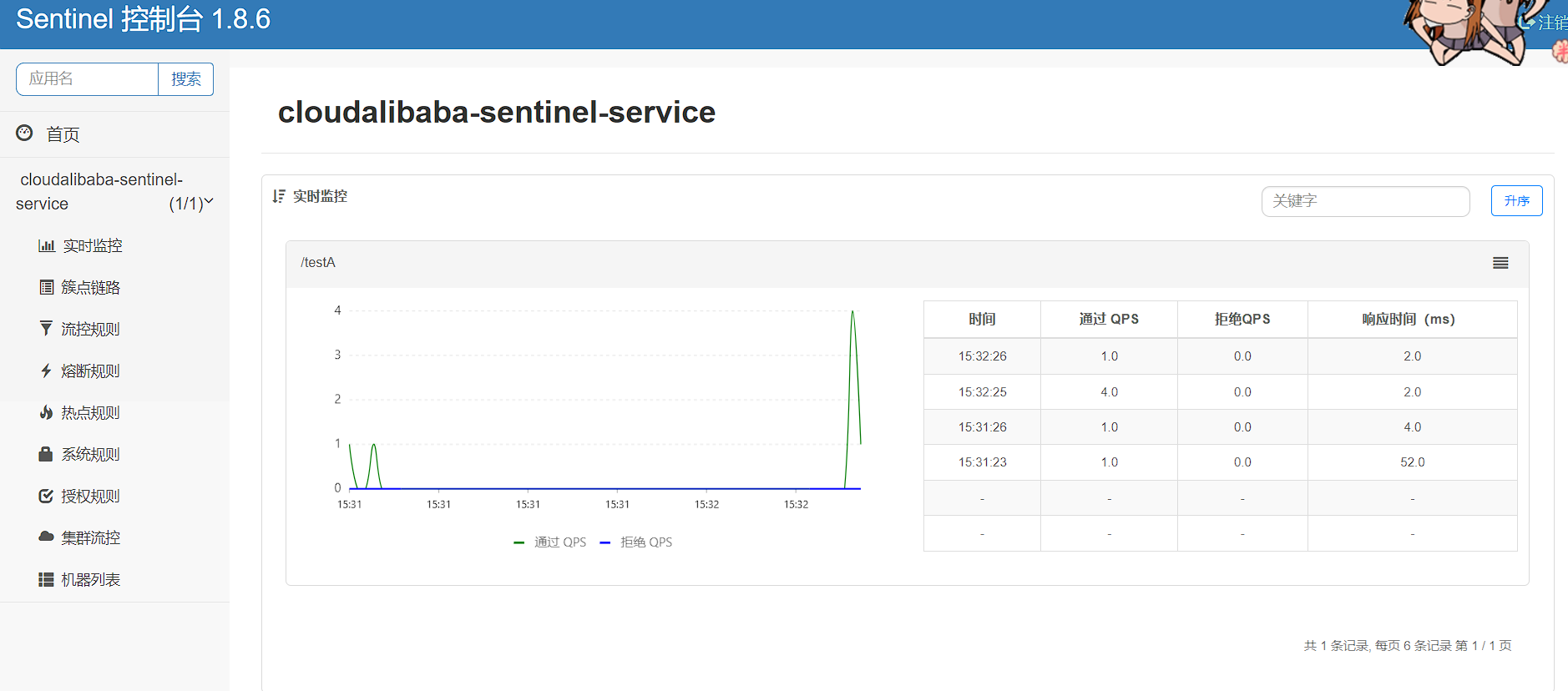

查看监控

image-20230904153306752

==流控规则==

基本介绍

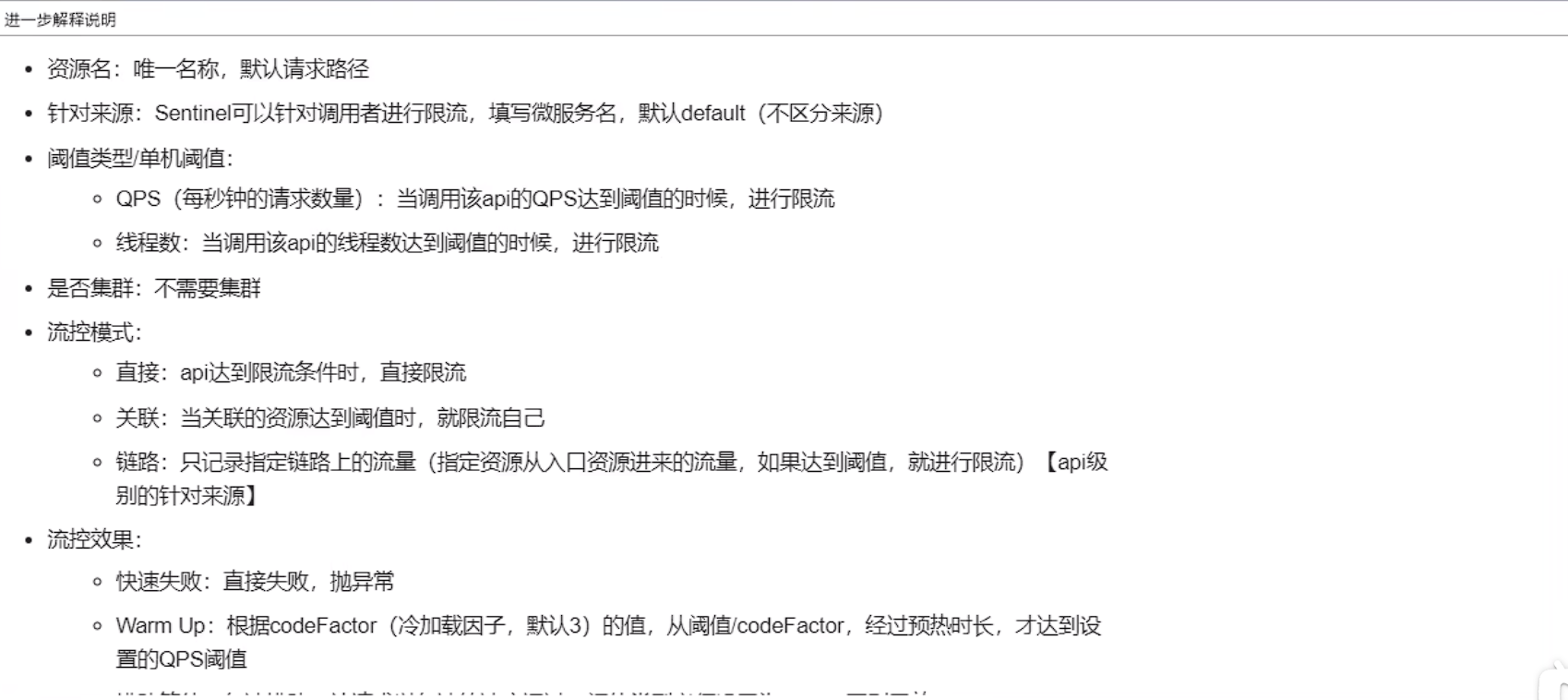

image-20230904205634872

流控模式

直接（默认）

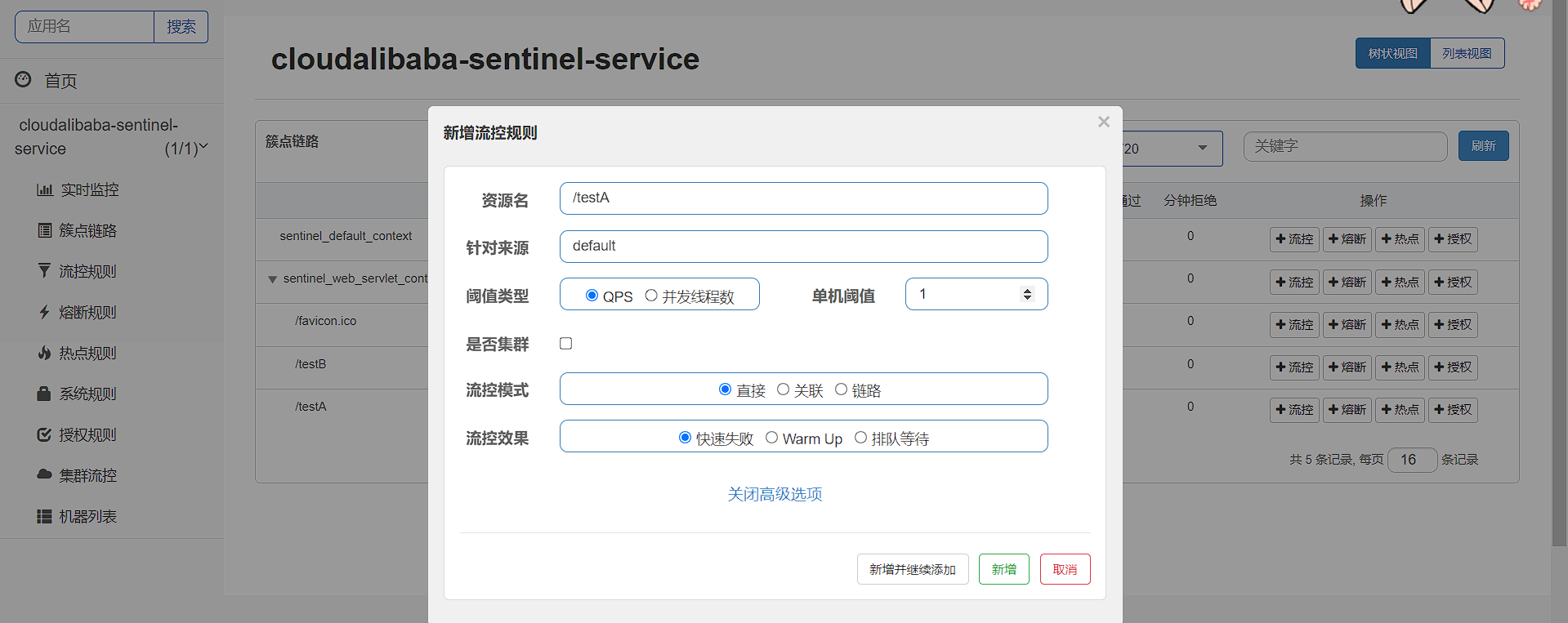

  • 给 testA 增加流控
  • 1s 访问一次—> 快速失败

image-20230904205146347

  • 失败场景

image-20230904205251932

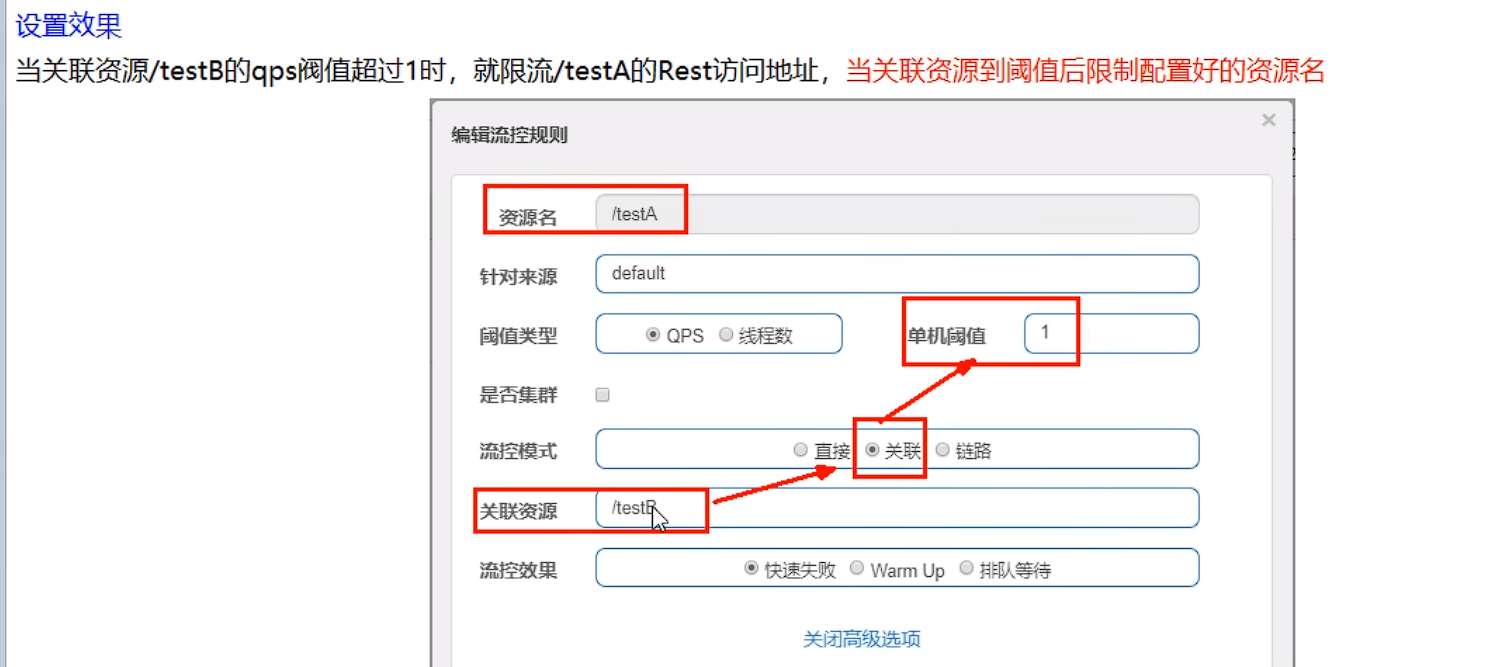

关联

  • 设置

image-20230904210559519

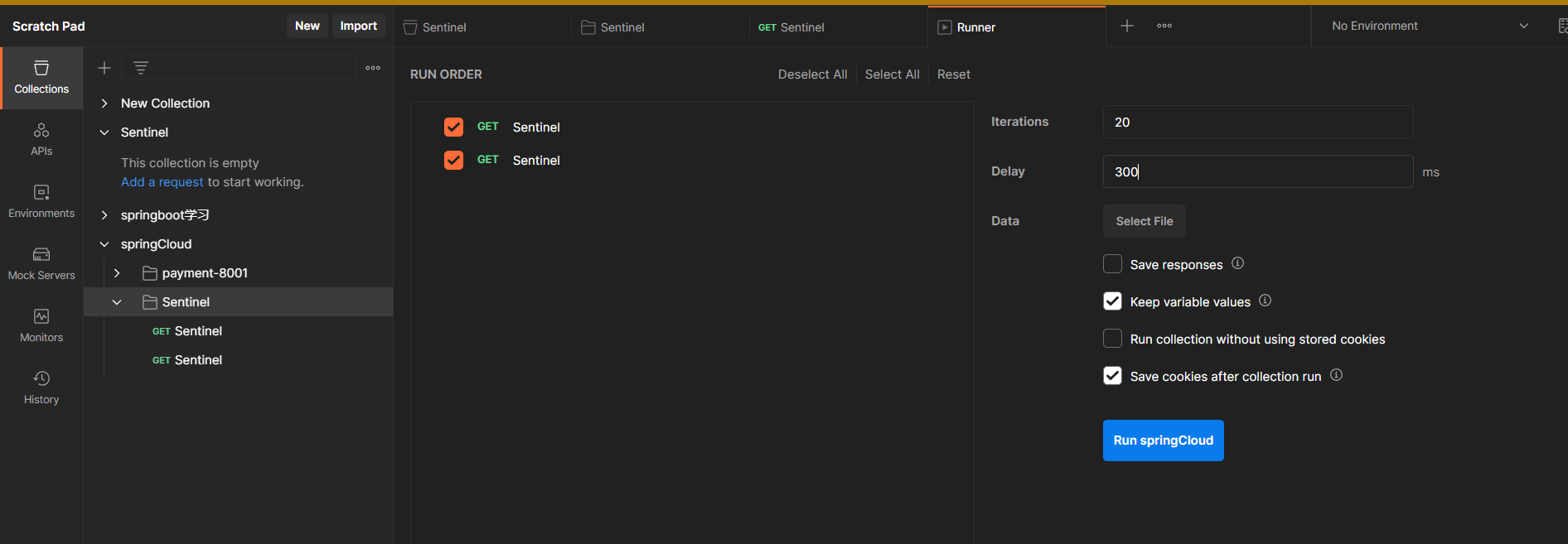

  • 使用 postman 并发访问

image-20230904211354137

链路

  • 多个请求访问同一个资源

流控效果

直接

  • 直接快速失败

预热 Warm up

  1. 说明

image-20230904211958561

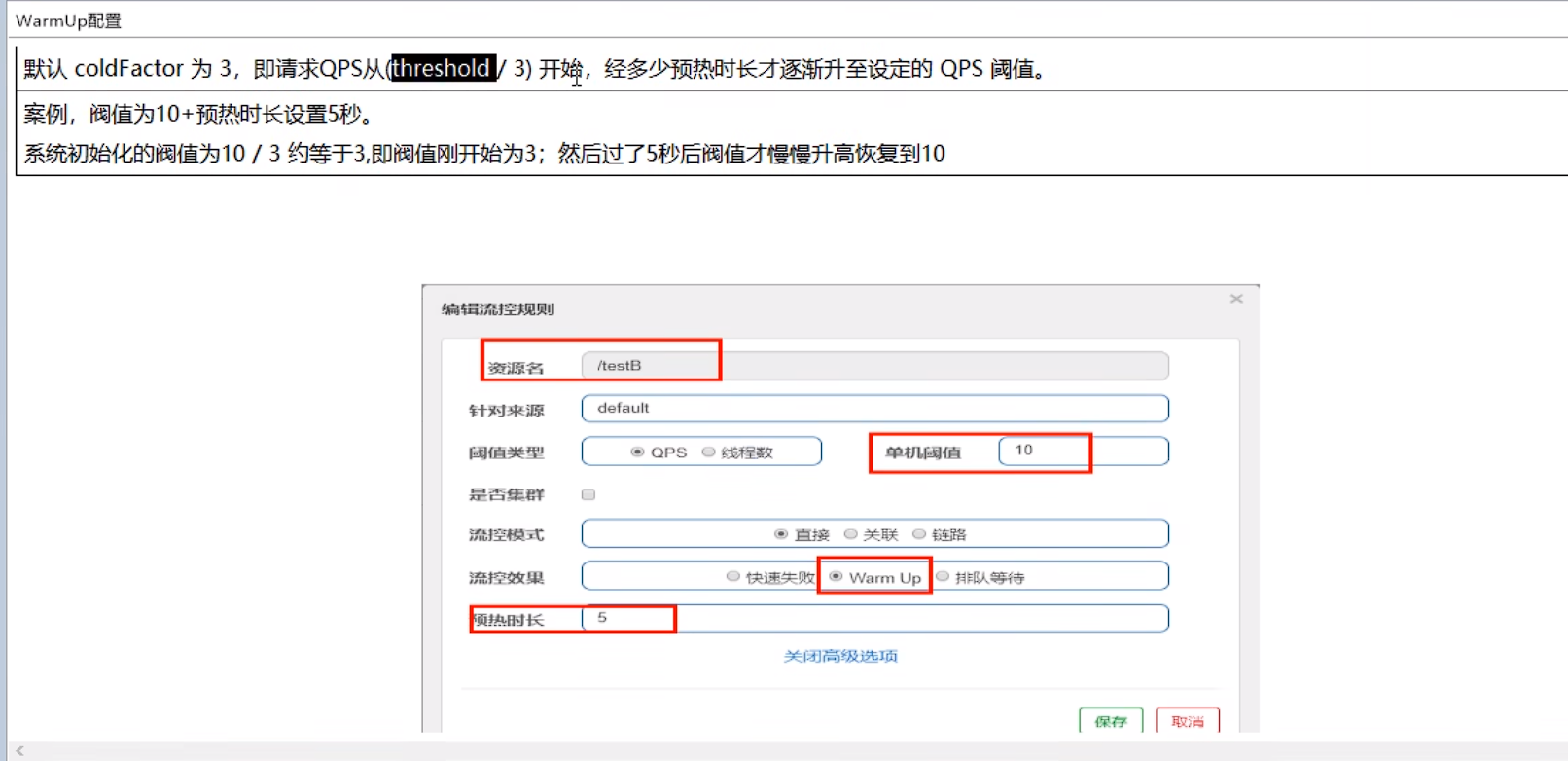

  1. 配置

image-20230904212306977

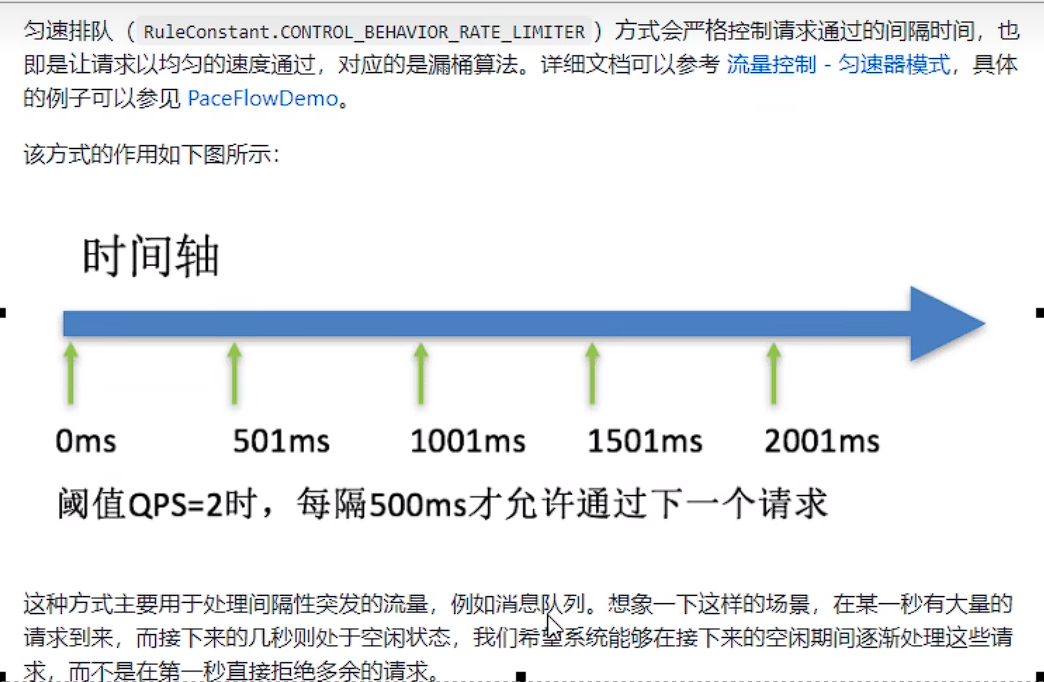

排队等待

image-20230904212916870

服务降级

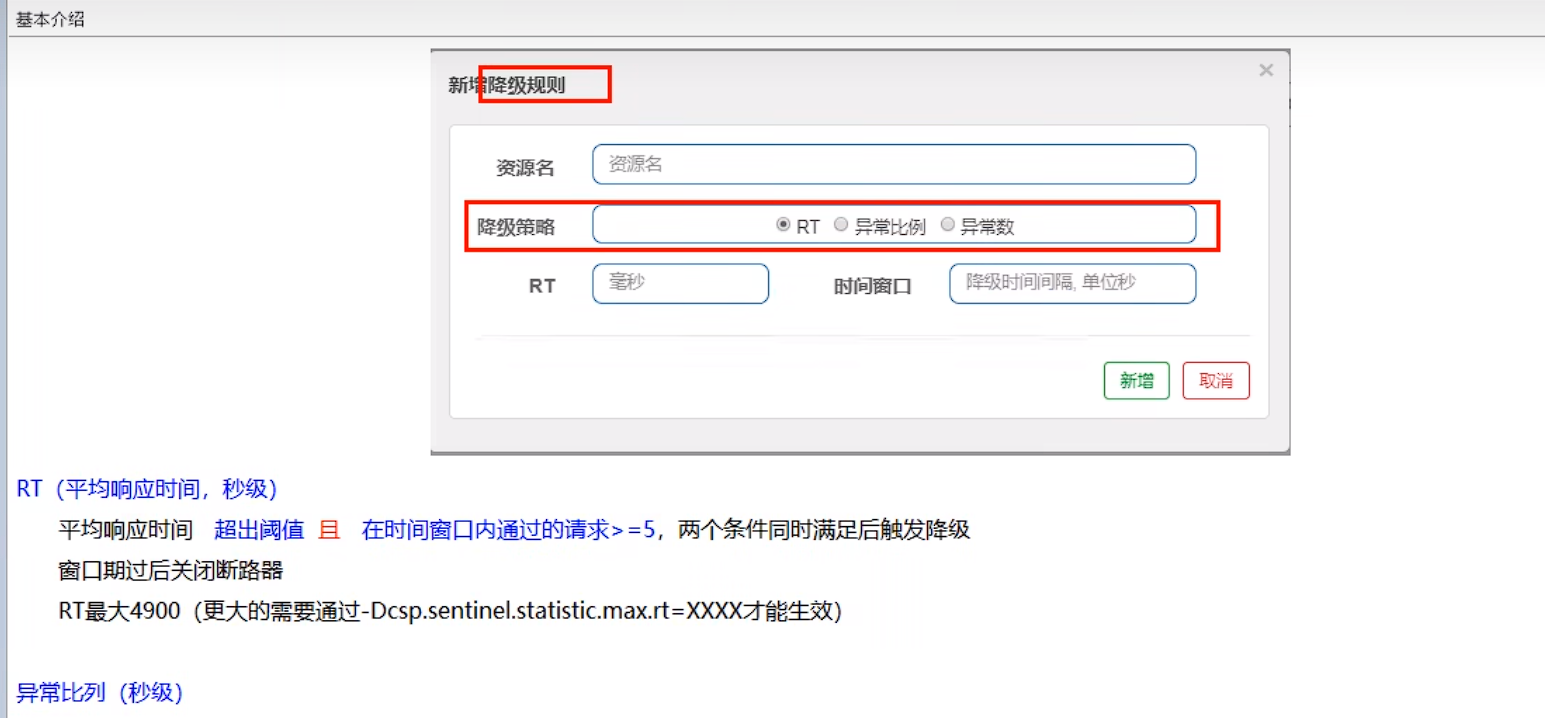

介绍

image-20230904213703876

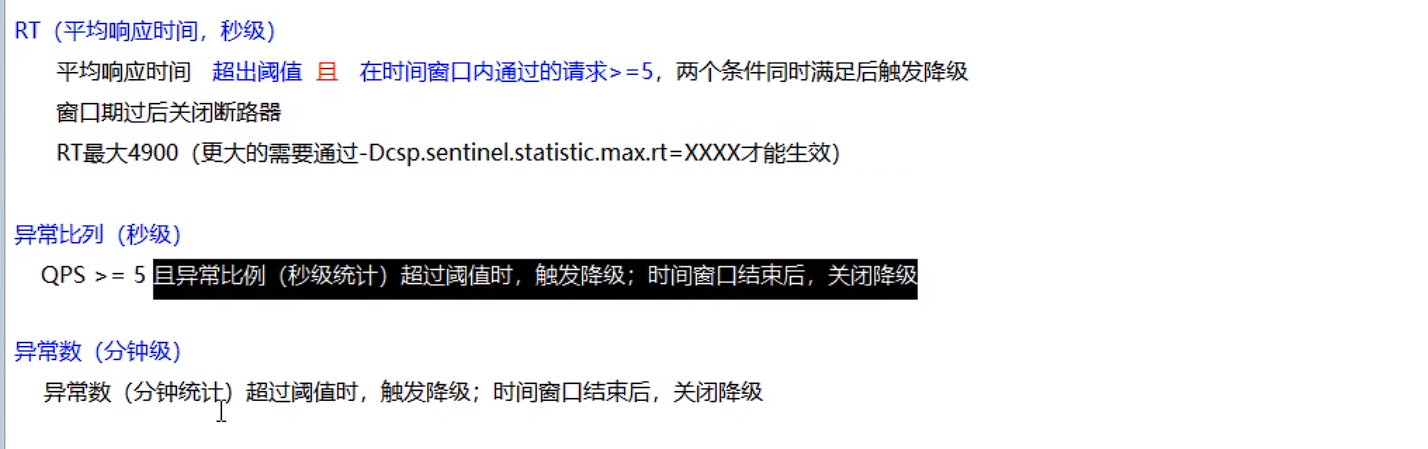

image-20230904213808795

配置实战

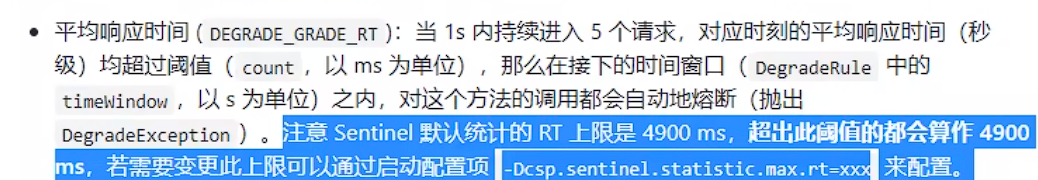

RT

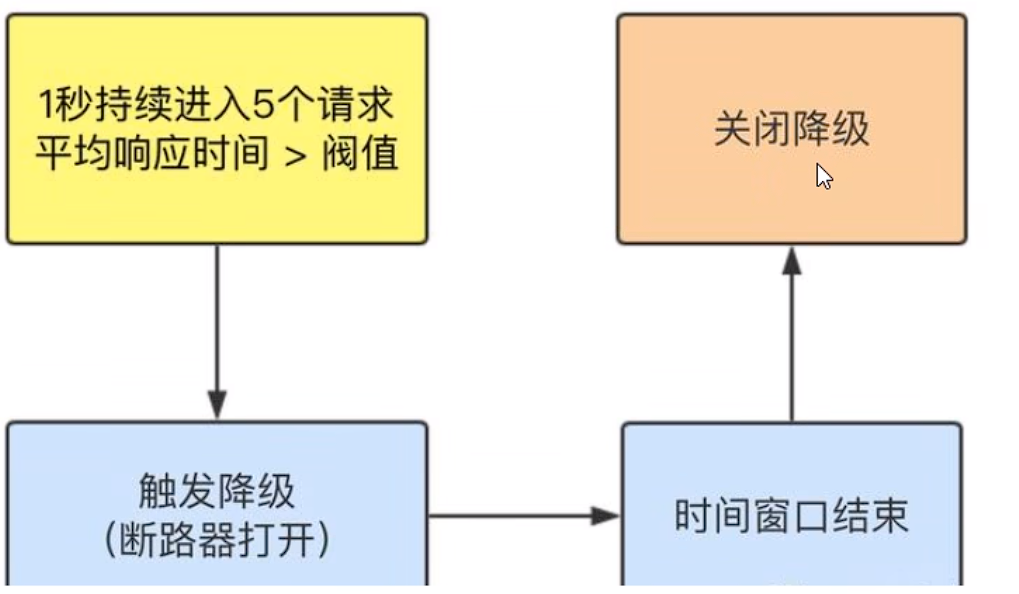

  1. 概念

image-20230904214102516

image-20230904214225754

  1. 测试代码
1
2
3
4
5
6
7
8
9
10
11
12
13
@GetMapping("/testD")
public String testD() {
    try {
        TimeUnit.SECONDS.sleep(1);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    log.info("testD 测试RT");

    //        log.info("testD 异常比例");
    //        int age = 10 / 0;
    return "------testD";
}

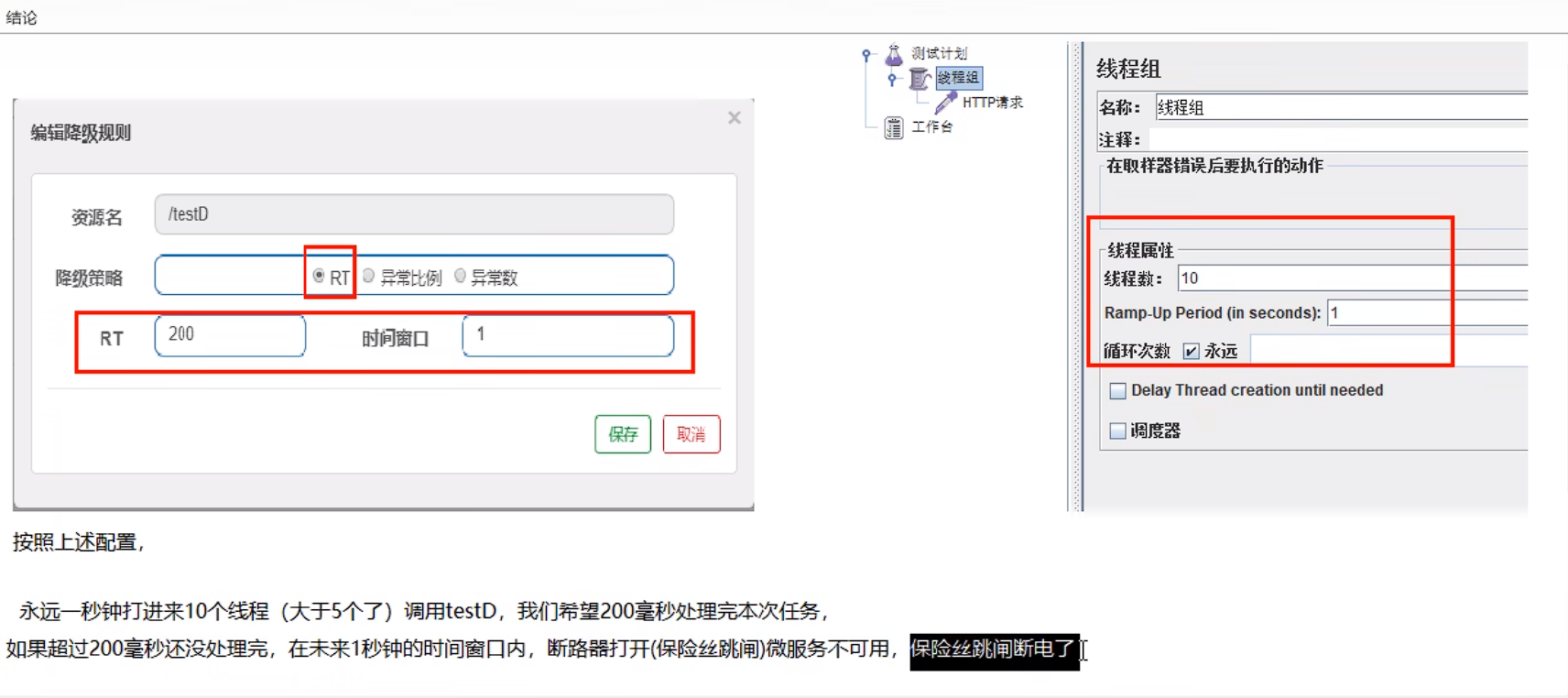

  1. 结论

image-20230904214825389

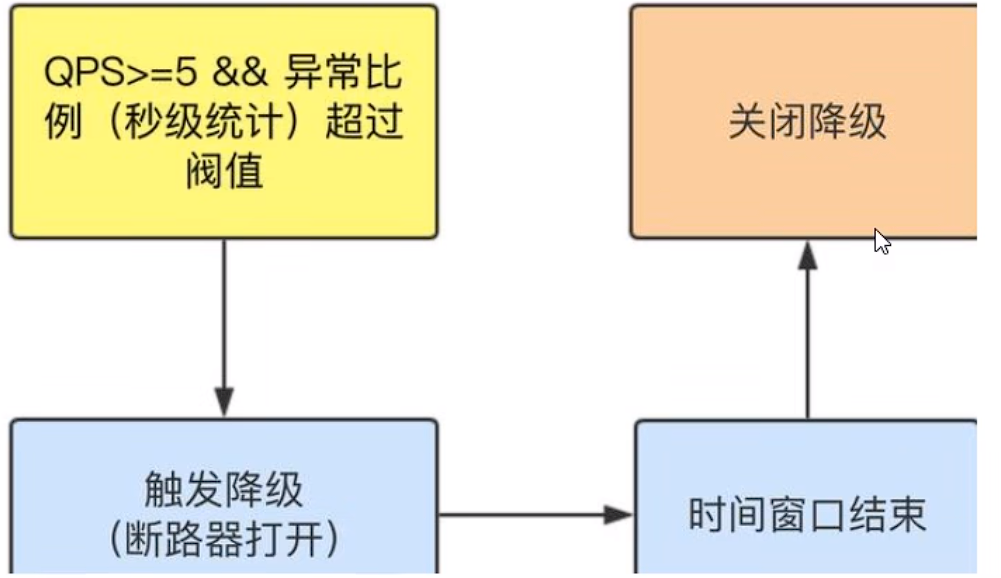

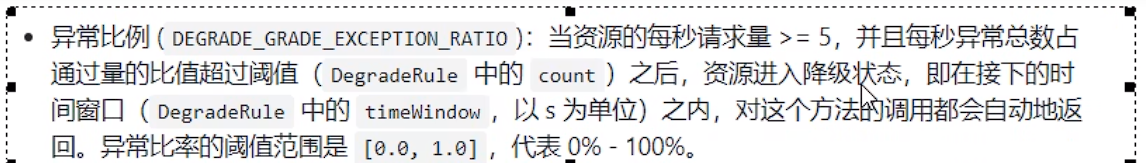

异常比例

  1. 概念

image-20230904215255500

image-20230904215345874

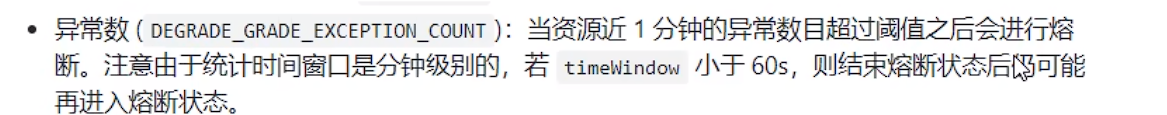

异常数

  1. 概念

image-20230904222057215

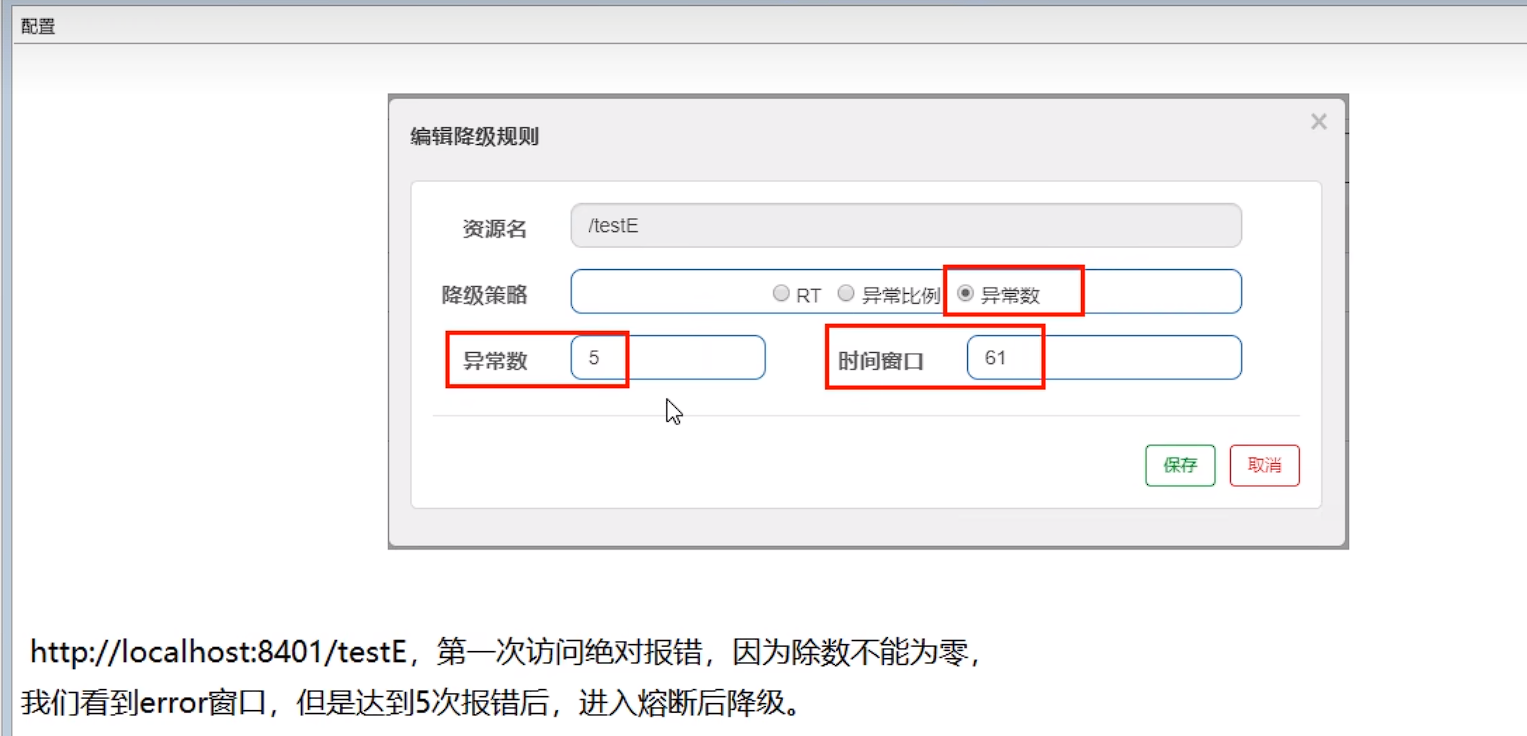

  1. 配置

image-20230904222233518

热点 Key 限流

概述

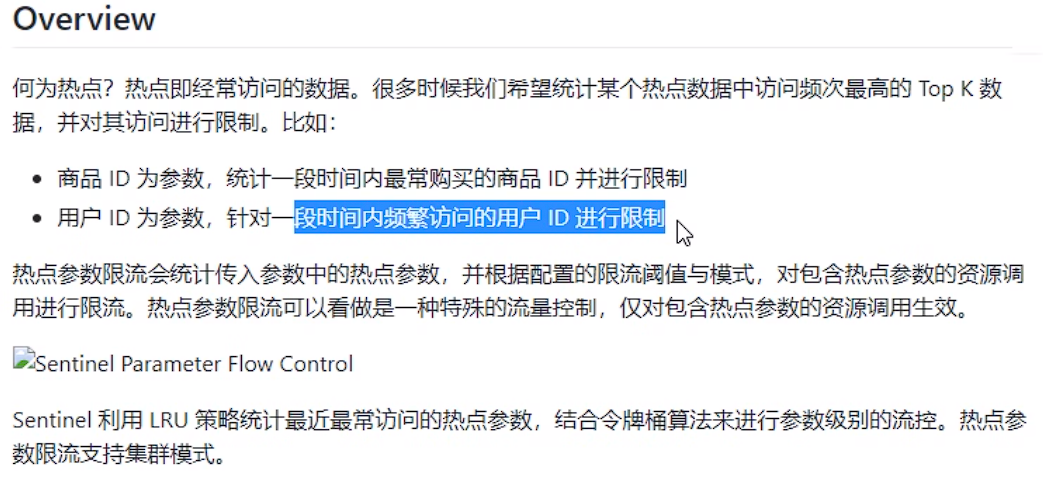

image-20230905123825875

案例

编码

  • 注意：blockHandler不管运行时异常
1
2
3
4
5
6
7
8
9
10
11
12
@GetMapping("/testHotKey")
@SentinelResource(value = "testHotKey", blockHandler = "deal_testHotKey")
public String testHotKey(@RequestParam(value = "p1", required = false) String p1,
                         @RequestParam(value = "p2", required = false) String p2) {
    //int age = 10/0;
    return "------testHotKey";
}

// testHotKey 的兜底方法
public String deal_testHotKey(String p1, String p2, BlockException exception) {
    return "------deal_testHotKey,o(╥﹏╥)o";  //sentinel系统默认的提示：Blocked by Sentinel (flow limiting)
}

配置

image-20230905125228065

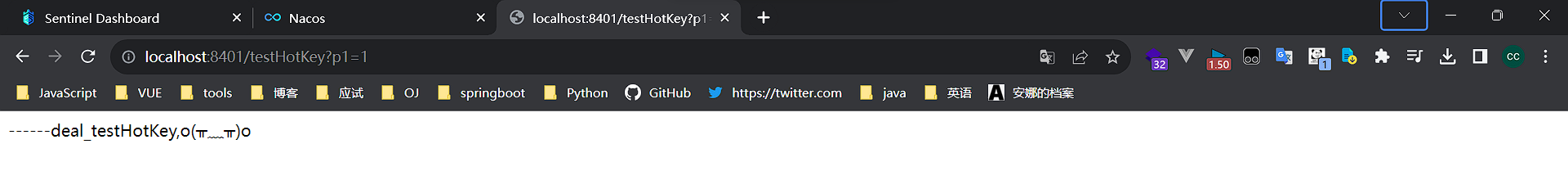

测试

image-20230905125312014

参数例外项

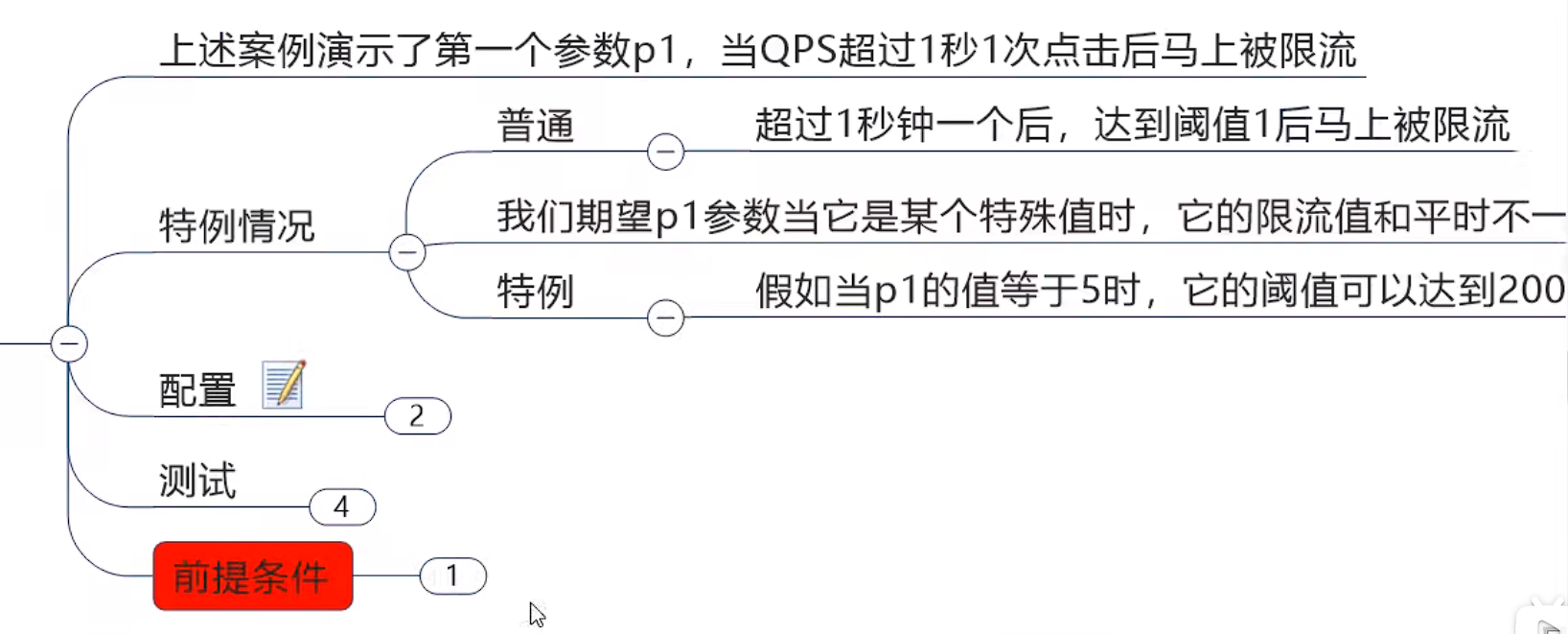

介绍

  • 当 p1取特殊值时，阈值不一样 例如 vip 功能

image-20230905130119460

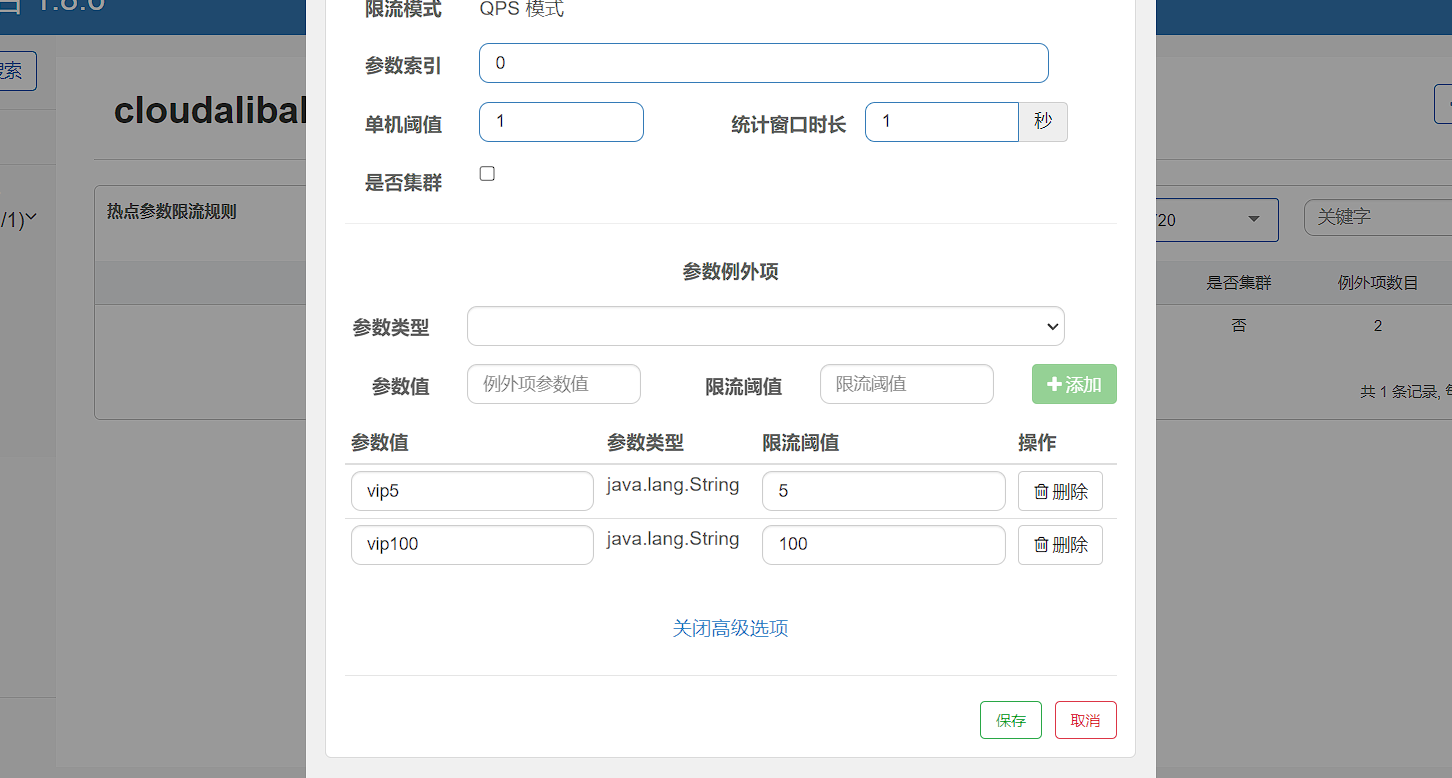

配置

image-20230905130411478

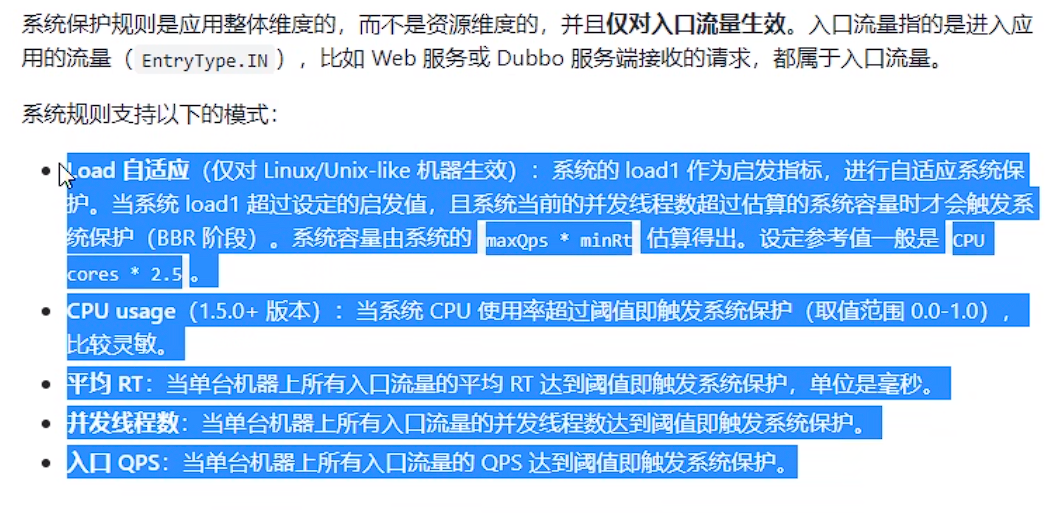

系统规则

  • 了解即可

image-20230905131950143

==@SentinelResource==

按资源名称限流

image-20230905180103260

业务类

1
2
3
4
5
6
7
8
9
10
11
12
13
@RestController
public class RateLimitController {
    @GetMapping("/byResource")
    @SentinelResource(value = "byResource", blockHandler = "handleException")
    public CommonResult byResource() {
        return new CommonResult(200, "按资源名称限流测试OK", new Payment(2020L, "serial001"));
    }

    // ***兜底方法
    public CommonResult handleException(BlockException exception) {
        return new CommonResult(444, exception.getClass().getCanonicalName() + "\t 服务不可用");
    }
}

配置

image-20230905180713807

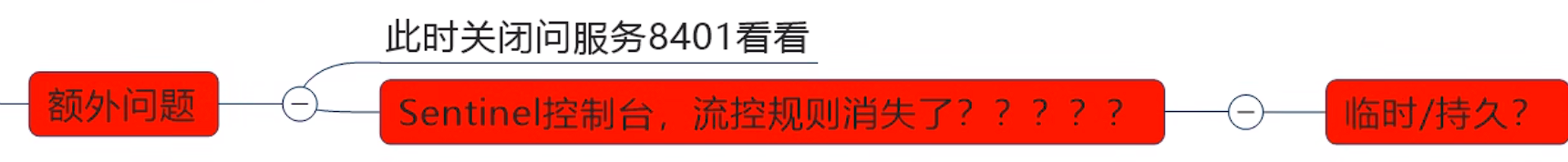

额外问题

  • 临时

image-20230905180640627

按照 url 地址限流

控制类

1
2
3
4
5
@GetMapping("/rateLimit/byUrl")
@SentinelResource(value = "byUrl")
public CommonResult byUrl() {
    return new CommonResult(200, "按url限流测试OK", new Payment(2020L, "serial002"));
}

配置

image-20230905181306053

自定义方法

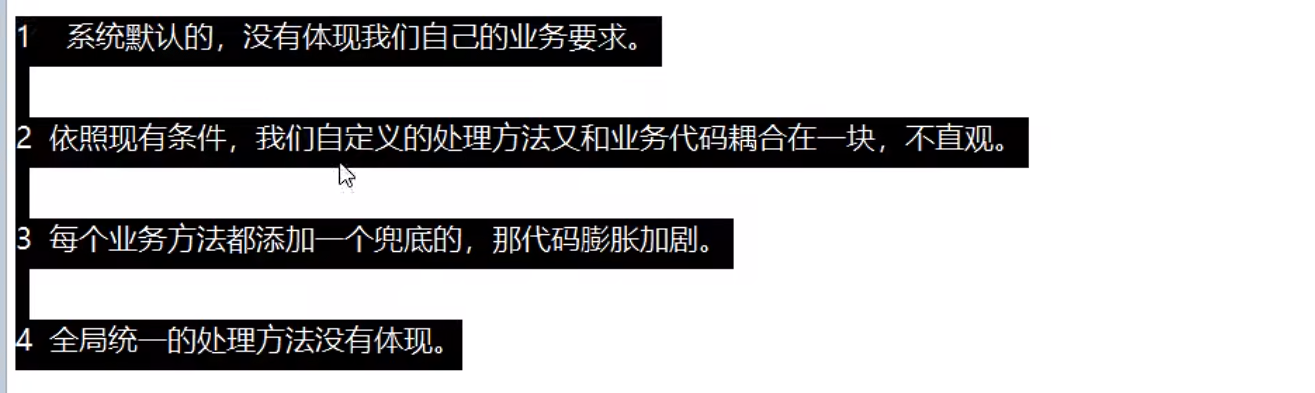

痛点

image-20230905201654516

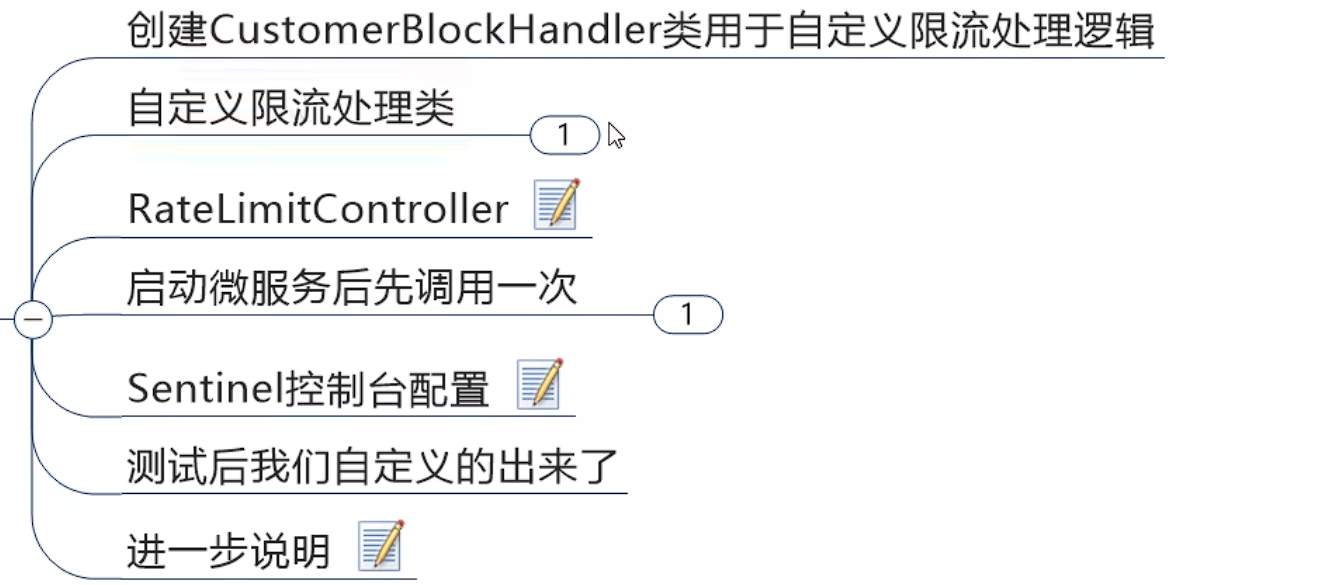

  • 步骤

image-20230905201715671

controller

1
2
3
4
5
6
7
@GetMapping("/rateLimit/customerBlockHandler")
@SentinelResource(value = "customerBlockHandler",
        blockHandlerClass = CustomerBlockHandler.class,
        blockHandler = "handlerException2")
public CommonResult customerBlockHandler() {
    return new CommonResult(200, "按客戶自定义", new Payment(2020L, "serial003"));
}

myhandler

  • 创建 /myhandler 包
1
2
3
4
5
6
7
8
9
public class CustomerBlockHandler {
    public static CommonResult handlerException(BlockException exception) {
        return new CommonResult(4444, "按客戶自定义,global handlerException----1");
    }

    public static CommonResult handlerException2(BlockException exception) {
        return new CommonResult(4444, "按客戶自定义,global handlerException----2");
    }
}

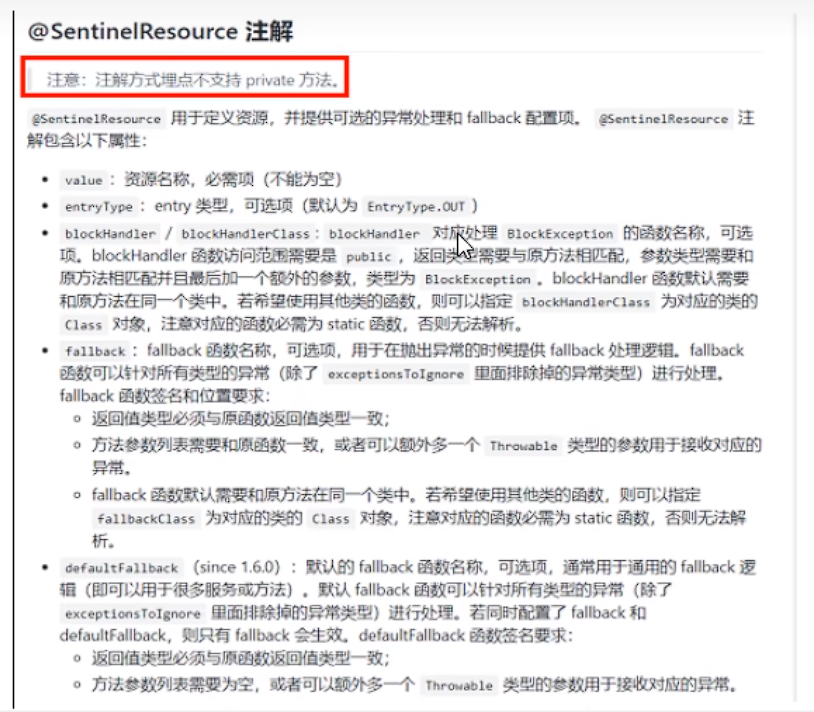

更多注解属性说明

image-20230905213942436

服务熔断

环境搭建

  1. 提供模块
    • cloudalibaba-provider-payment9003 cloudalibaba-provider-payment9004
  2. 消费模块
    • cloudalibaba-consumer-nacos-order84

只配置 fallback

  • 用于 java 运行时异常兜底方法
    • id=4触发异常 访问兜底方法 handlerFallback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@RequestMapping("/consumer/fallback/{id}")
//@SentinelResource(value = "fallback") //没有配置
@SentinelResource(value = "fallback",fallback = "handlerFallback") //fallback只负责业务异常
public CommonResult<Payment> fallback(@PathVariable Long id) {
    CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/" + id, CommonResult.class, id);

    if (id == 4) {
        throw new IllegalArgumentException("IllegalArgumentException,非法参数异常....");
    } else if (result.getData() == null) {
        throw new NullPointerException("NullPointerException,该ID没有对应记录,空指针异常");
    }
    return result;
}

//本例是fallback
public CommonResult handlerFallback(@PathVariable Long id, Throwable e) {
    Payment payment = new Payment(id, "null");
    return new CommonResult<>(444, "兜底异常handlerFallback,exception内容  " + e.getMessage(), payment);
}

只配置 blockhandler

  • 用于 Sentinel 流量控制兜底方法
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@SentinelResource(value = "fallback",blockHandler = "blockHandler") //blockHandler只负责sentinel控制台配置违规
public CommonResult<Payment> fallback(@PathVariable Long id) {
    CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/" + id, CommonResult.class, id);

    if (id == 4) {
        throw new IllegalArgumentException("IllegalArgumentException,非法参数异常....");
    } else if (result.getData() == null) {
        throw new NullPointerException("NullPointerException,该ID没有对应记录,空指针异常");
    }
    return result;
}

//本例是blockHandler
public CommonResult blockHandler(@PathVariable Long id, BlockException blockException) {
    Payment payment = new Payment(id, "null");
    return new CommonResult<>(445, "blockHandler-sentinel限流,无此流水: blockException  " + blockException.getMessage(), payment);
}

两个都配置

  • 若blockHandler和fallback都进行了配置，则被限流降级而抛出BlockException时只会进入blockHandler处理逻辑。
1
2
3
4
5
6
7
8
9
10
11
12
@SentinelResource(value = "fallback", fallback = "handlerFallback", blockHandler = "blockHandler",
        exceptionsToIgnore = {IllegalArgumentException.class})
public CommonResult<Payment> fallback(@PathVariable Long id) {
    CommonResult<Payment> result = restTemplate.getForObject(SERVICE_URL + "/paymentSQL/" + id, CommonResult.class, id);

    if (id == 4) {
        throw new IllegalArgumentException("IllegalArgumentException,非法参数异常....");
    } else if (result.getData() == null) {
        throw new NullPointerException("NullPointerException,该ID没有对应记录,空指针异常");
    }
    return result;
}

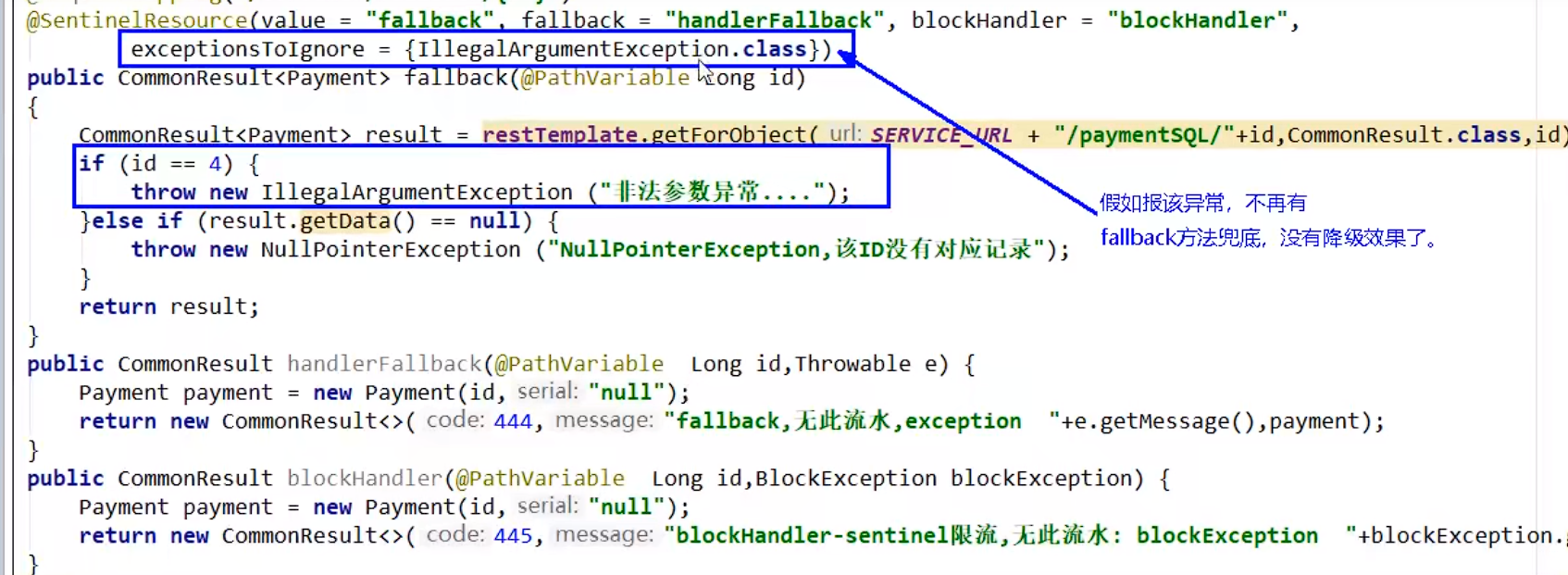

忽略属性

image-20230907200142808

熔断+openfeign

配置

  1. 对 cloudalibaba-consumer-nacos-order84 消费模块配置
1
2
3
4
# 激活Sentinel对Feign的支持
feign:
  sentinel:
    enabled: true
  1. 主启动类注解 @EnableFeignClients

业务类

service

  1. 接口
1
2
3
4
5
6
7
// value yml中 ； fallback 实现类
@FeignClient(value = "nacos-payment-provider",fallback = PaymentFallbackService.class)
public interface PaymentService
{
    @GetMapping(value = "/paymentSQL/{id}")
    public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id);
}
1
2
3
#消费者将要去访问的微服务名称(注册成功进nacos的微服务提供者)
service-url:
  nacos-user-service: http://nacos-payment-provider
  1. 实现类
1
2
3
4
5
6
7
8
9
@Component
public class PaymentFallbackService implements PaymentService
{
    @Override
    public CommonResult<Payment> paymentSQL(Long id)
    {
        return new CommonResult<>(44444,"服务降级返回,---PaymentFallbackService",new Payment(id,"errorSerial"));
    }
}

controller

1
2
3
4
@GetMapping(value = "/consumer/paymentSQL/{id}")
public CommonResult<Payment> paymentSQL(@PathVariable("id") Long id) {
return paymentService.paymentSQL(id);
}

规则持久化

  • https://www.bilibili.com/video/BV18E411x7eT?p=137&vd_source=30924cc6debe913490fb34d7e3b62fdd

pom

1
2
3
4
5
<!--SpringCloud ailibaba sentinel-datasource-nacos 后续做持久化用到-->
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
</dependency>

yml

1
2
3
4
5
6
7
8
9
10
11
12
13
spring:
  application:
    name: cloudalibaba-sentinel-service
  cloud:
    sentinel:
      datasource:
        ds1:
          nacos:
            server-addr: localhost:8848
            dataId: cloudalibaba-sentinel-service
            groupId: DEFAULT_GROUP
            data-type: json
            rule-type: flow

Seata

概述

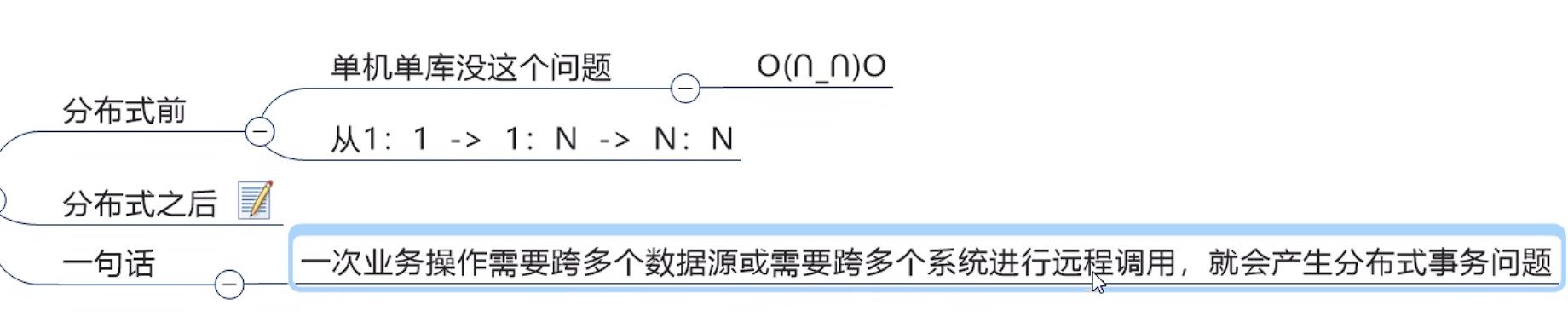

产生原因

image-20230907220243729

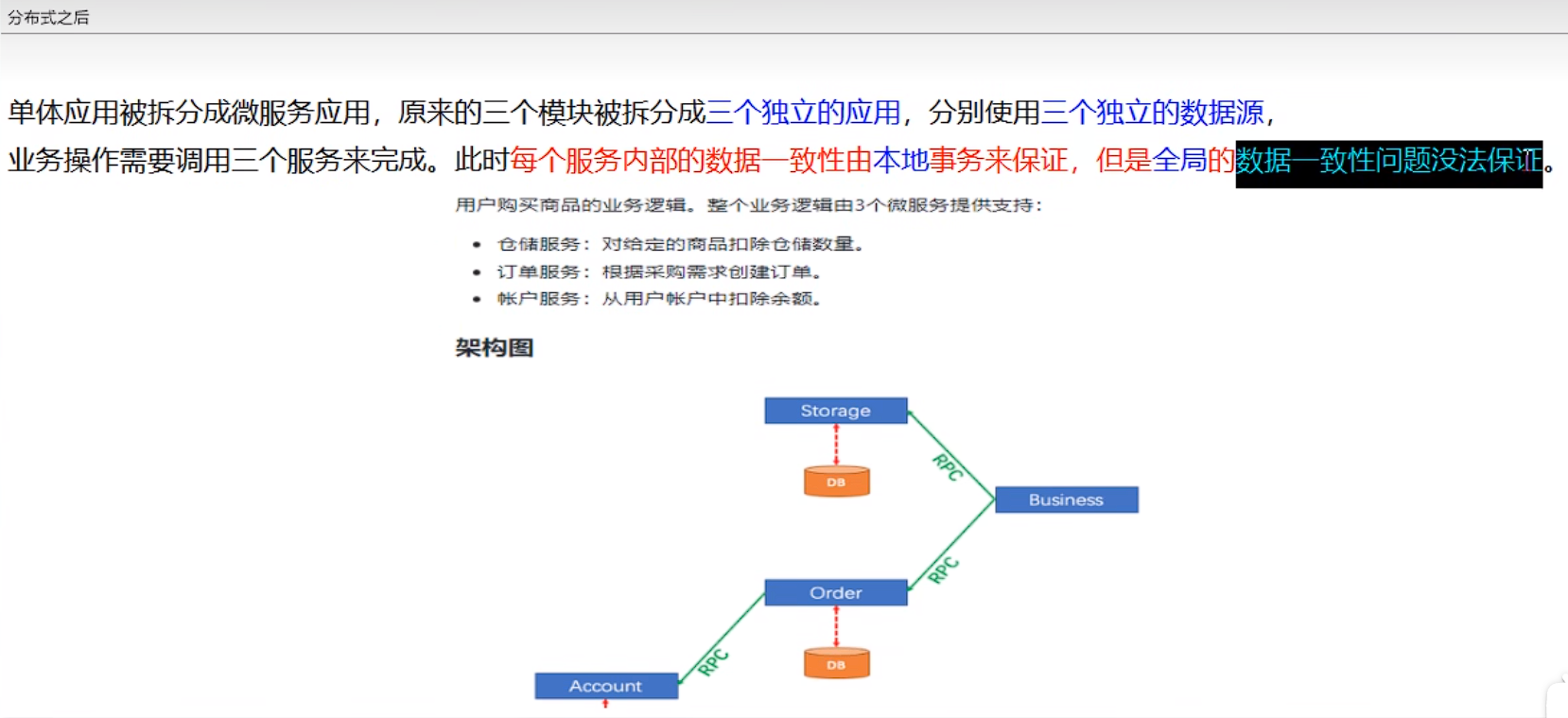

  • 分布式之后

image-20230907220259936

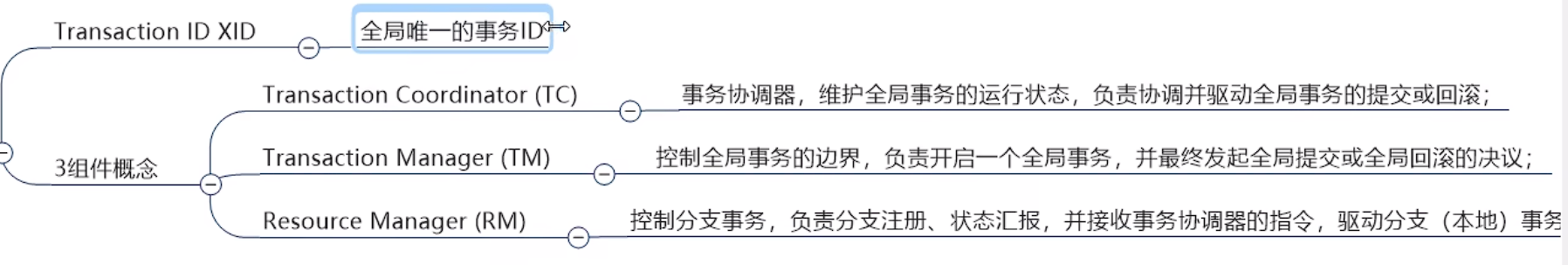

概念

  • 3 + 1

image-20230907220936982

下载

  • 官网 seata.io/zh-cn

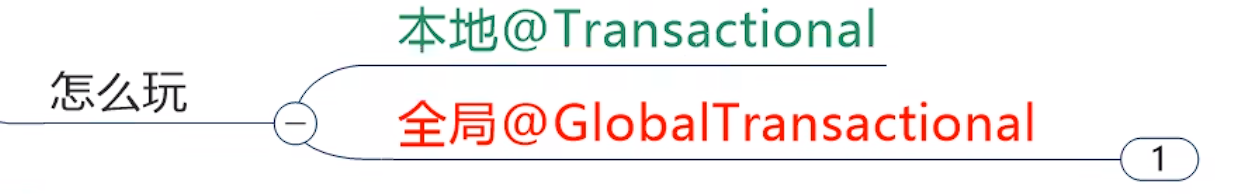

使用

image-20230907221657975

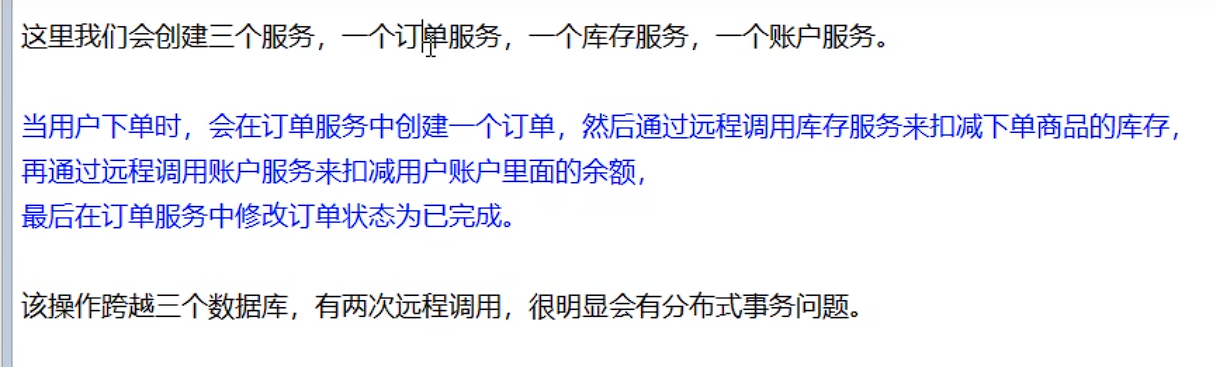

案例

image-20230907222447449
