springcloud服务调用

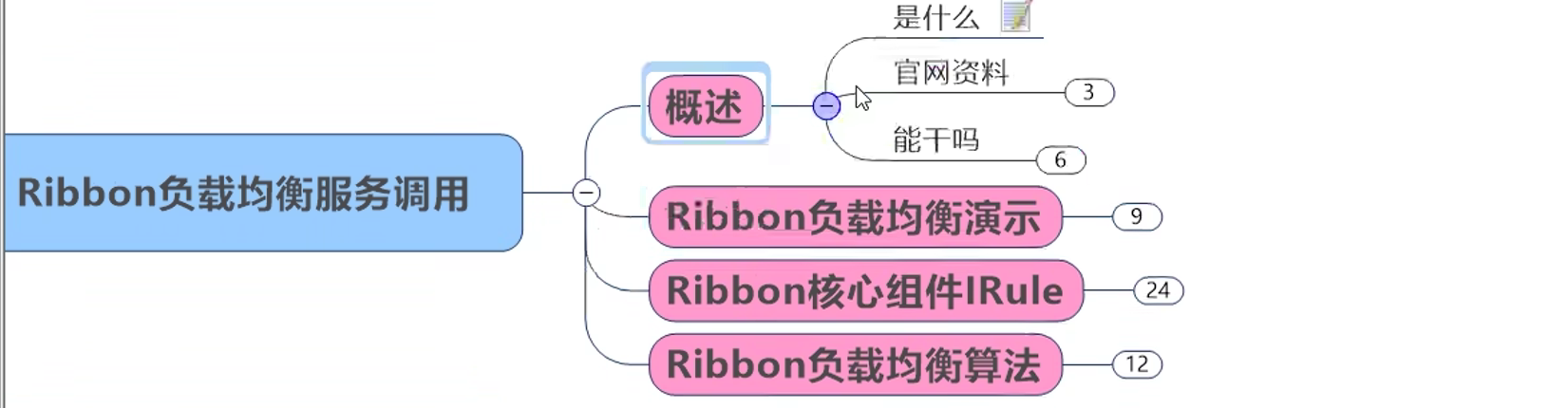

Ribbon

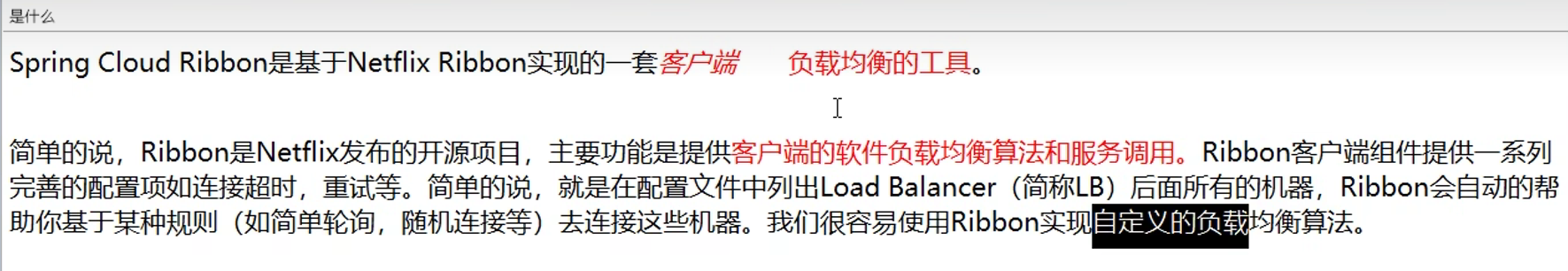

概述

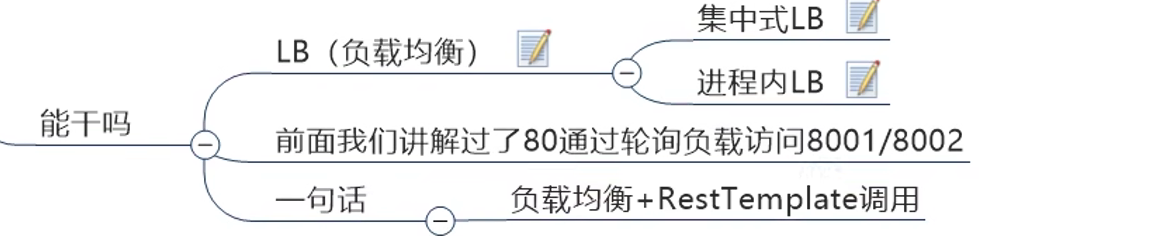

负载均衡

使用 resetTemplate 测试

@GetMapping("/consumer/payment/getForEntity/{id}")
public CommonResult<Payment> getPayment2(@PathVariable("id") Long id) {
    ResponseEntity<CommonResult> entity = restTemplate.getForEntity(PAYMENT_URL + "/payment/get/" + id, CommonResult.class);
    if (entity.getStatusCode().is2xxSuccessful()) {
        return entity.getBody();
    }
    return new CommonResult<>(444, "失败");
}

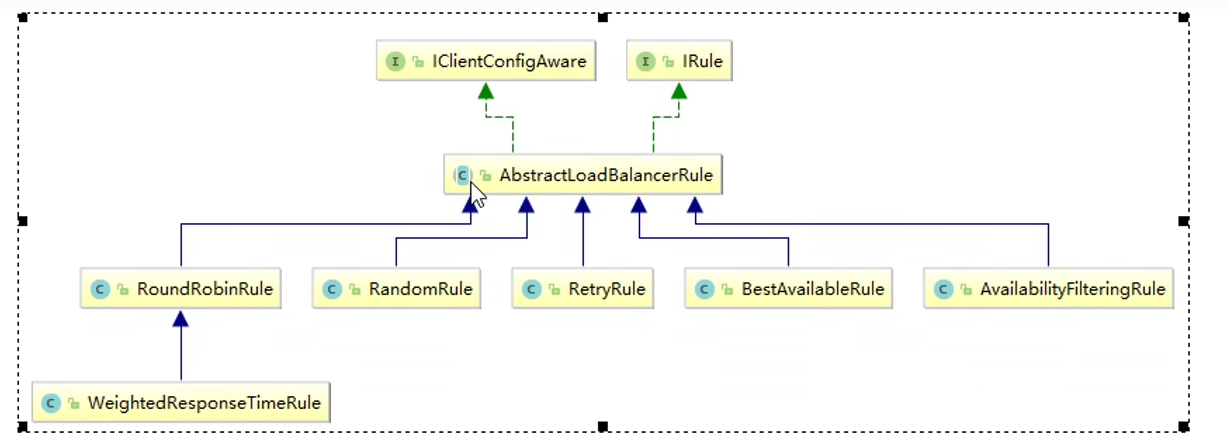

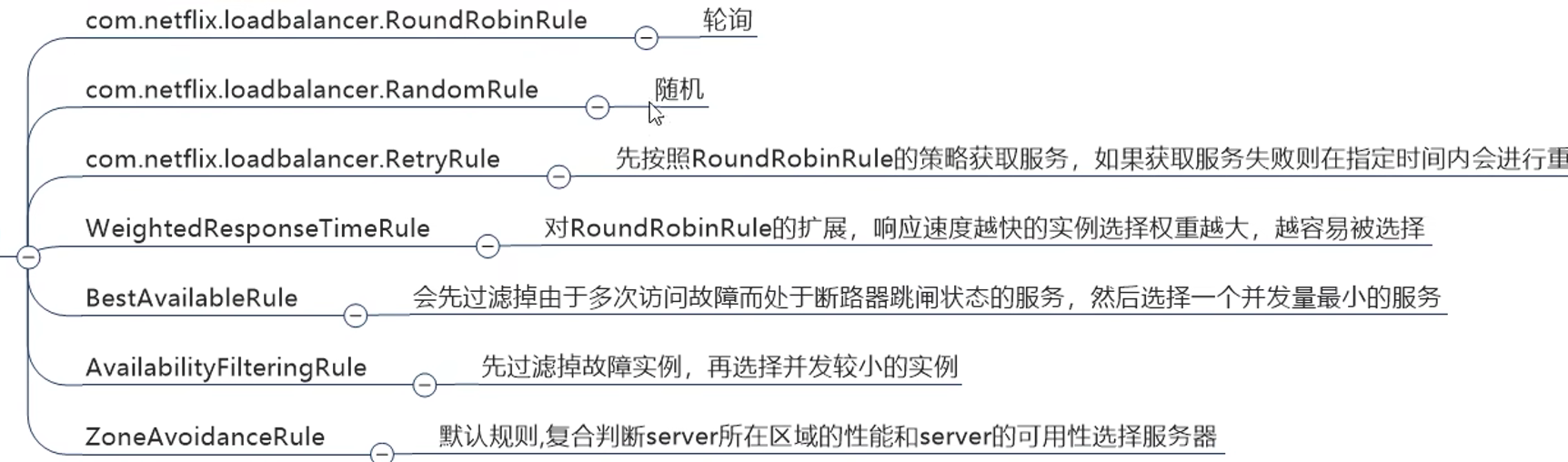

IRule 接口

==更改替换算法==

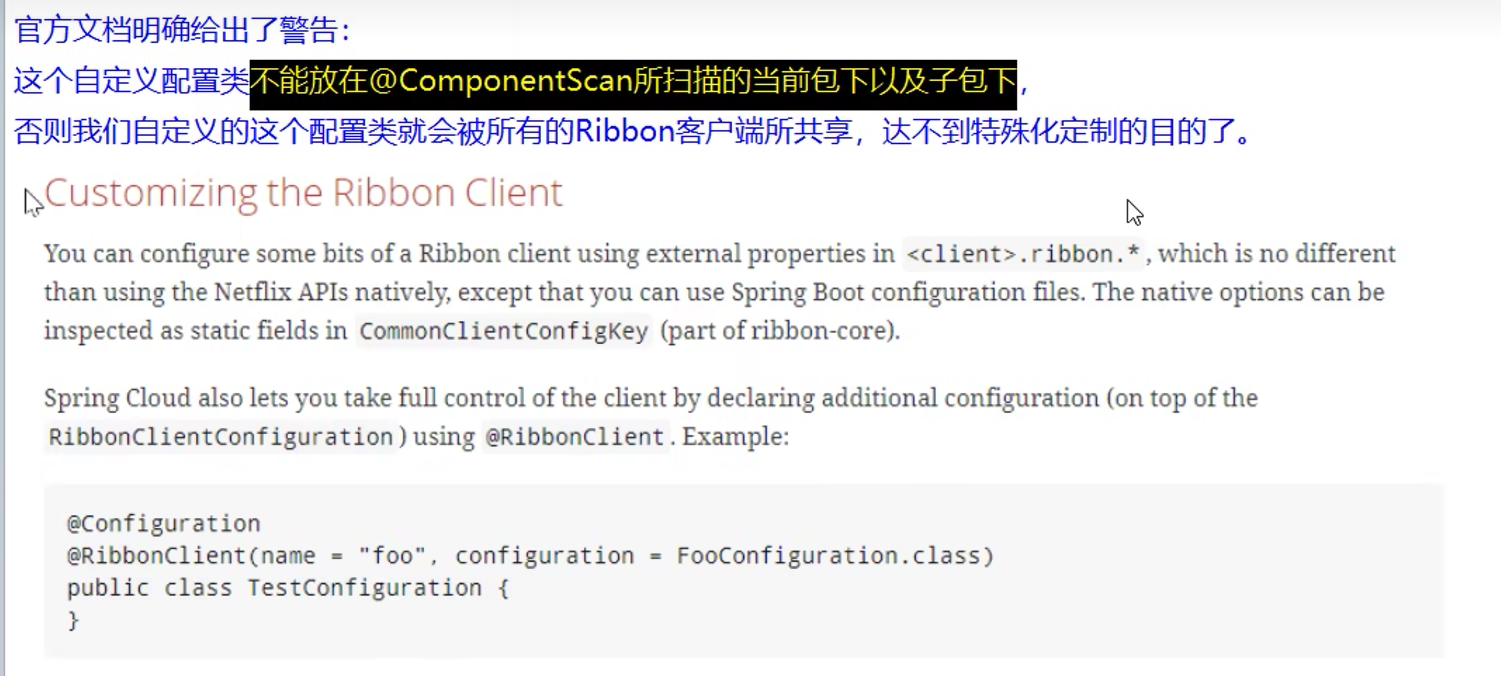

• ==注意== 不能放在主类下

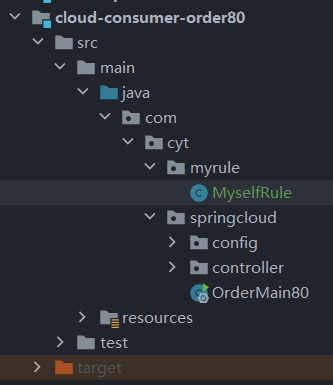

1. 建 package

2. Myrule 类

@Configuration
public class MyselfRule {
    @Bean
    public IRule myRule() {
        return new RandomRule(); // 定义随机算法
    }
}

3. ==启动类添加@RibbonClient==

@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
@EnableEurekaClient // 注册EurekaClient
@RibbonClient(name = "CLOUD-PAYMENT-SERVICE", configuration = MyselfRule.class) // 替换算法
public class OrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(OrderMain80.class, args);
    }
}

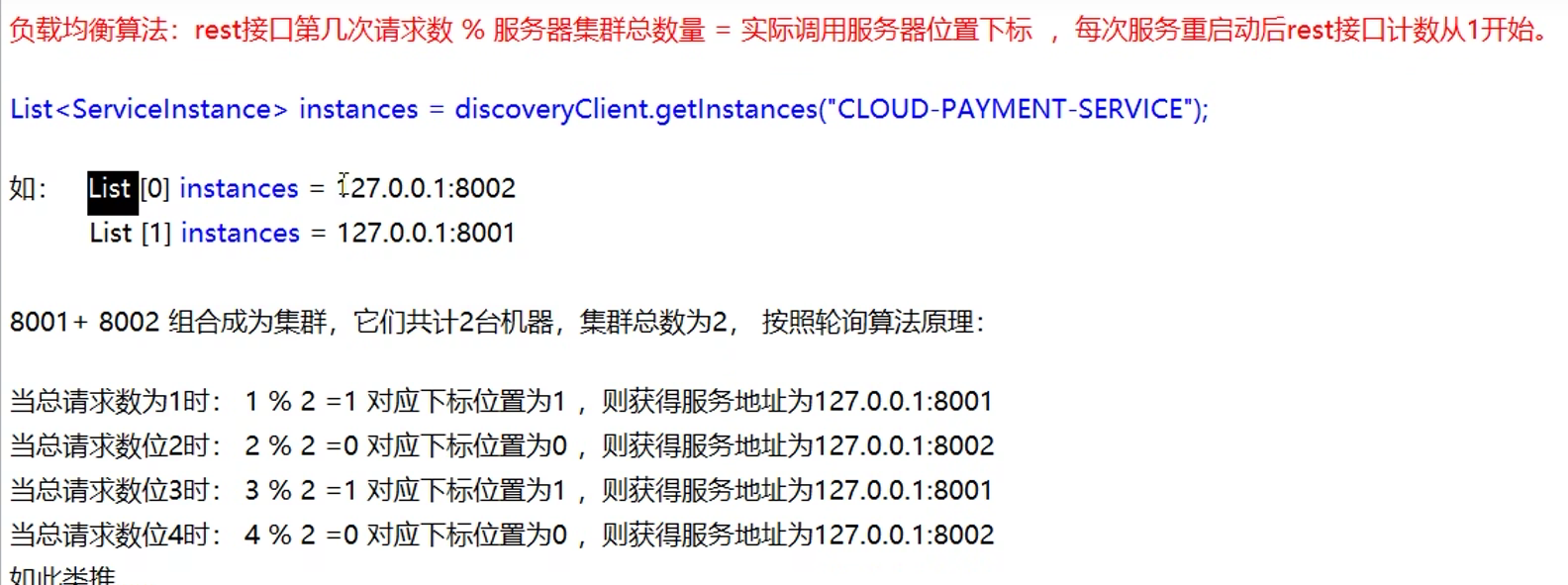

负载均衡算法

原理

OpenFeign

概述

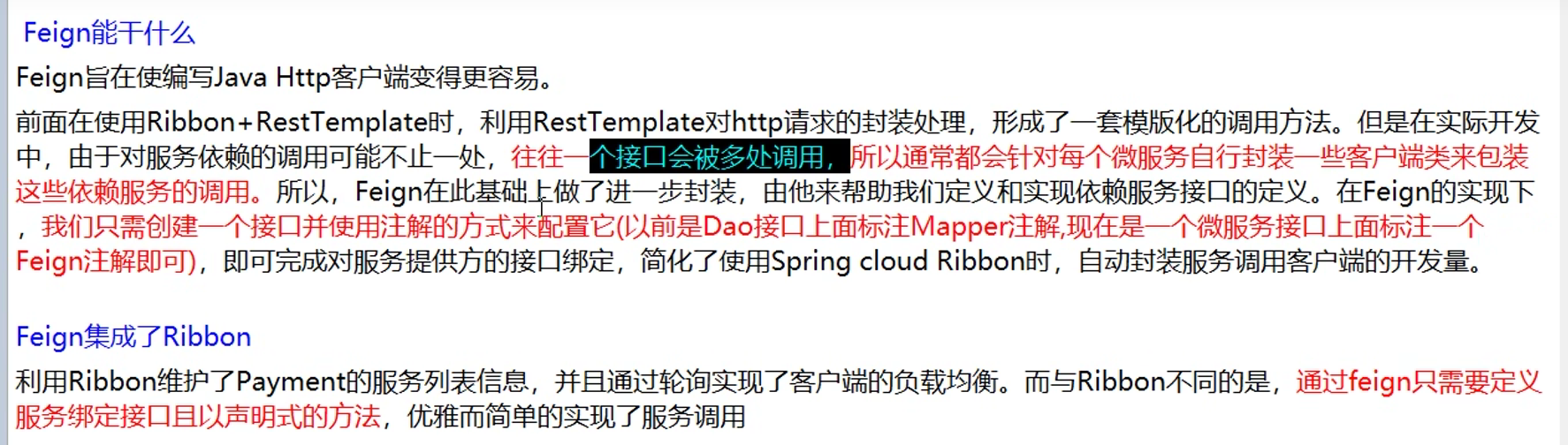

介绍

• 用于客户端，通过==接口==连接服务调用

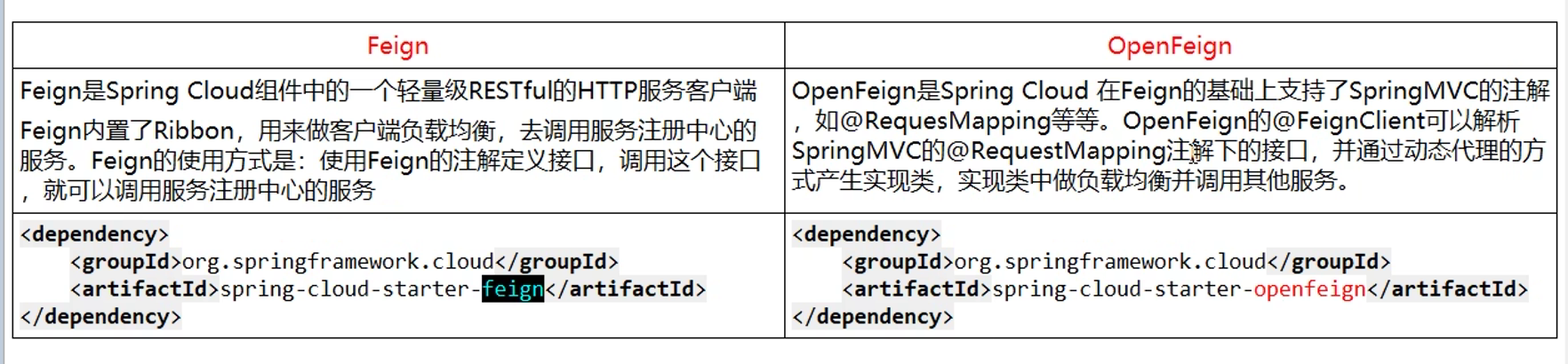

对比

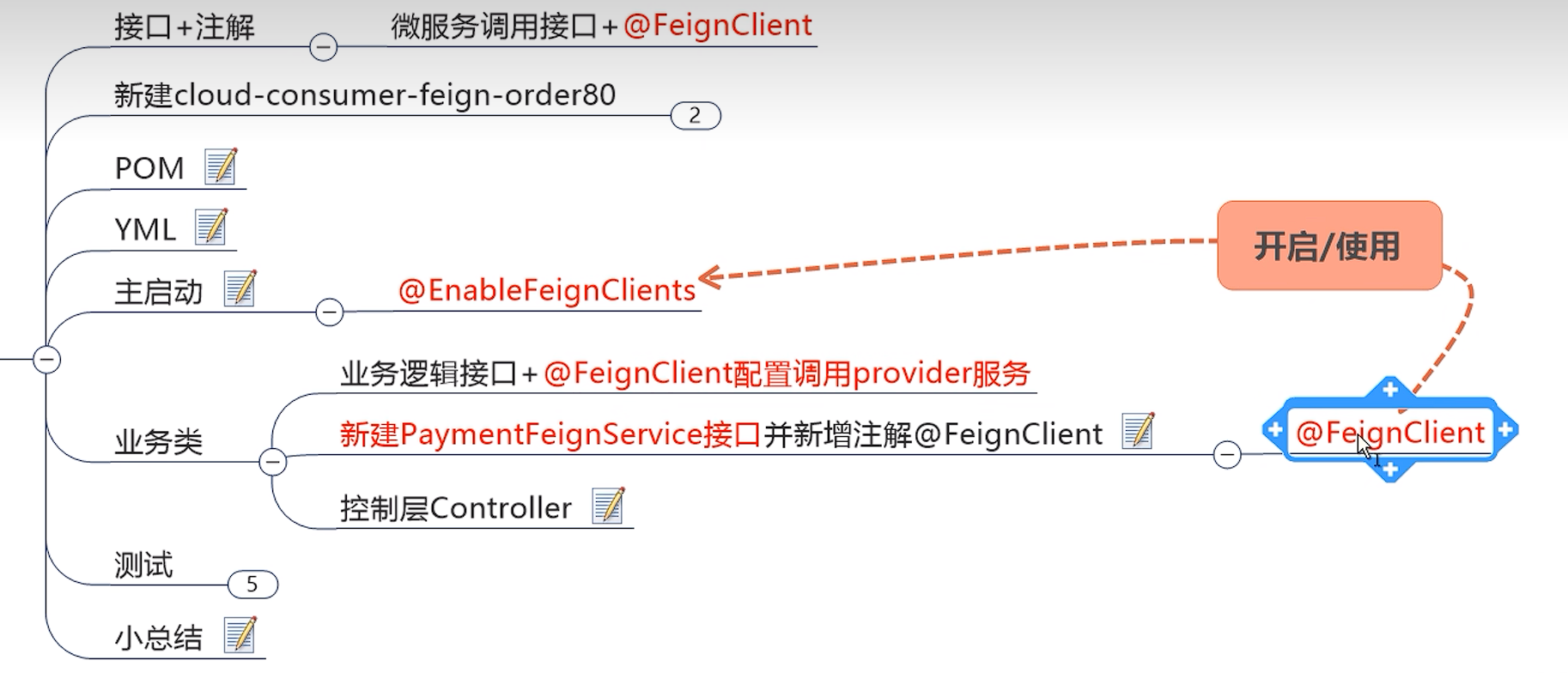

==服务调用==

建 module

• cloud-consumer-feign-order80

pom

<dependencies>
    <!--openfeign-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-openfeign</artifactId>
    </dependency>
    <!--eureka client-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
    <dependency>
        <groupId>com.cyt.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <!--web-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--一般基础通用配置-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

写 yml

server:
  port: 80

eureka:
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/

主启动

==@EnableFeignClients==

@SpringBootApplication
@EnableFeignClients // 使用feign
public class OrderFeignMain80 {
     public static void main(String[] args) {
           SpringApplication.run(OrderFeignMain80.class, args);
      }
}

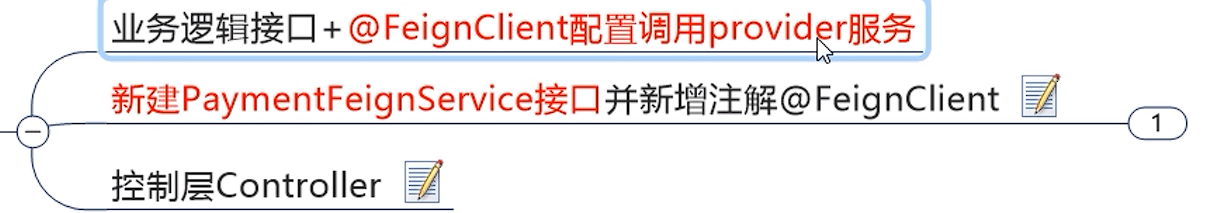

业务类

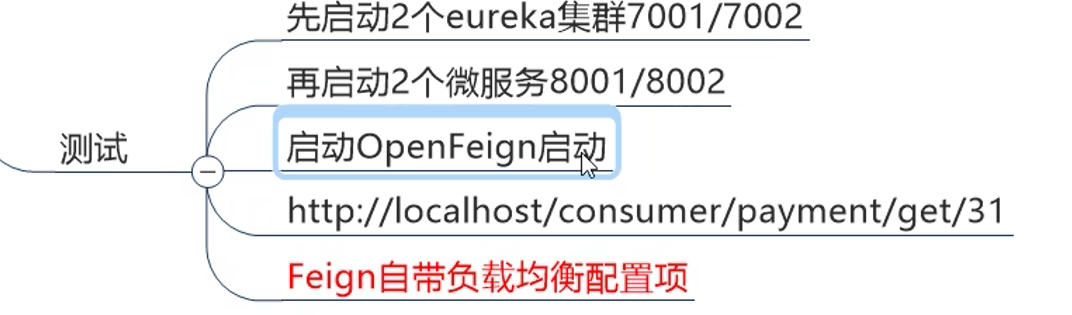

测试

超时控制

• 配置代码

#设置feign客户端超时时间(OpenFeign默认支持ribbon)
ribbon:
  #指的是建立连接所用的时间，适用于网络状况正常的情况下,两端连接所用的时间
  ReadTimeout: 5000
  #指的是建立连接后从服务器读取到可用资源所用的时间
  ConnectTimeout: 5000

日志打印

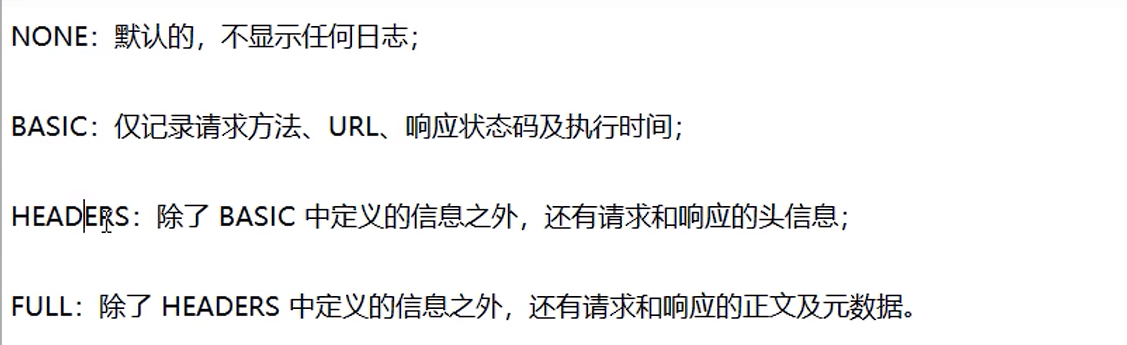

• 日志级别

• 建 config 包

@Configuration
public class FeignConfig {
    @Bean
    Logger.Level feignLoggerLevel() {
        return Logger.Level.FULL; // 全部
    }
}

• 配置

logging:
  level:
    # feign日志以什么级别监控哪个接口
    com.atguigu.springcloud.service.PaymentFeignService: debug
